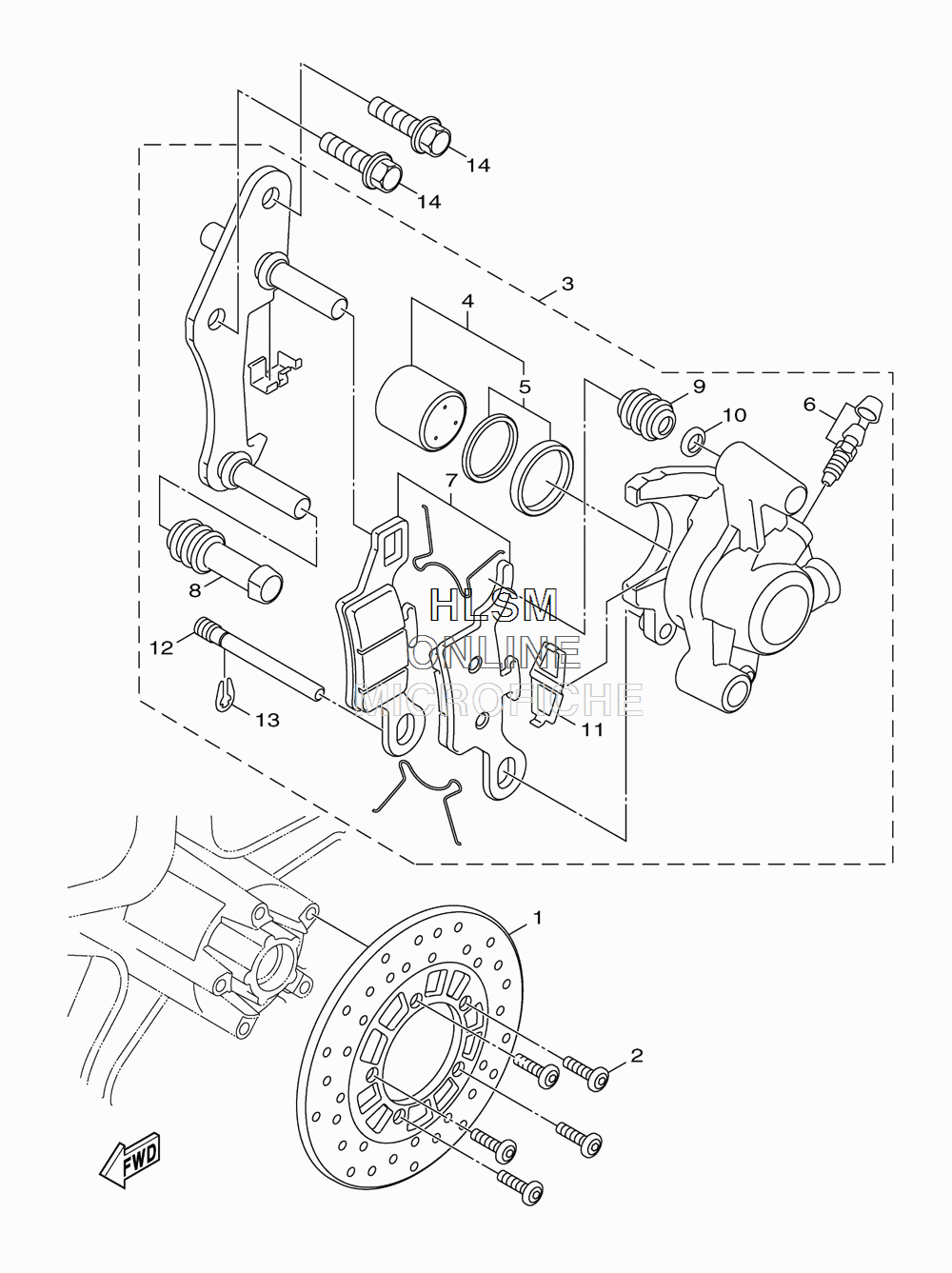

BRAKE - FRONT CALIPER для Yamaha ZUMA 125 - 2013 года выпуска`
-
№АртикулНазвание
-
15S9-F582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290149-08814-00 SCREWSCREW
-
35S9-F580T-21-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45S9-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55S9-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65S9-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
75S9-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
85S9-F5917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
95S9-F5937-00-00 ...BOOT 2...BOOT 2
-
105S9-F5913-00-00 ...RETAINER...RETAINER
-
115S9-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
125S9-F5924-10-00 ...PIN, PAD...PIN, PAD
-
135S9-F5925-00-00 ...CLIP...CLIP
-
1490105-10638-00 BOLT WASHER BASEDBOLT WASHER BASED
