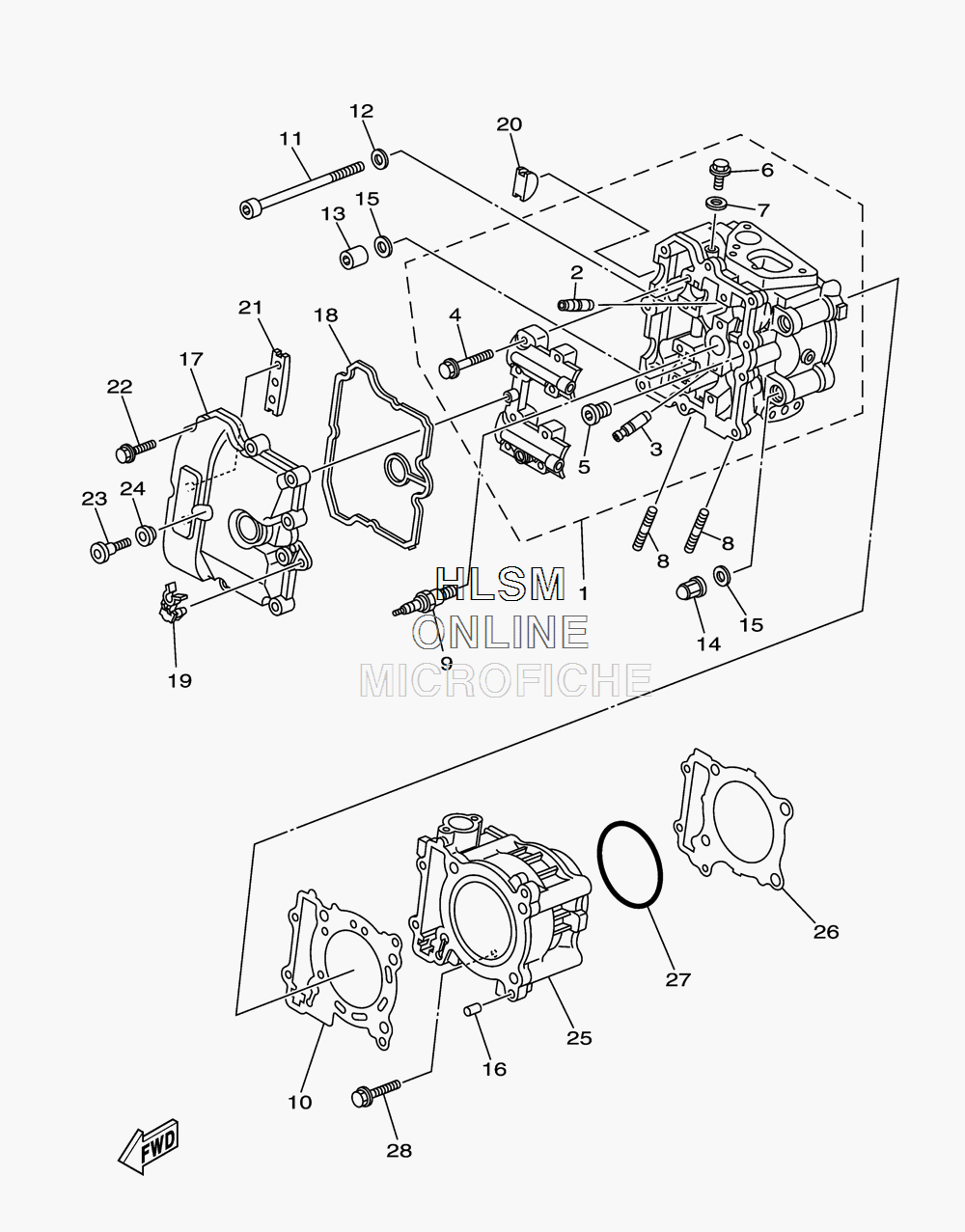

CYLINDER W/ HEAD ASSY. для Yamaha MAJESTY - 2013 года выпуска`
-
№АртикулНазвание
-
15RU-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
33P6-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
490105-06026-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
590340-12007-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
690105-06424-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
790430-06014-00 ...GASKET...GASKET
-
895612-08620-00 BOLT, STUDBOLT, STUD
-
994701-00353-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
105RU-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1191318-06150-00 BOLTBOLT
-
1290201-06034-00 WASHER, PLATEWASHER, PLATE
-
1390179-10006-00 NUTNUT
-
1490176-10075-00 NUT, CROWNNUT, CROWN
-
1590201-103M4-00 WASHER, PLATEWASHER, PLATE
-
1699530-10014-00 PIN, DOWELPIN, DOWEL
-
175RU-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
185RU-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1990464-09017-00 CLAMPCLAMP
-
205RU-11138-00-00 PLUGPLUG
-
215BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
2295022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2390109-066F0-00 BOLTBOLT
-
244KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
255RU-11310-21-00 CYLINDERCYLINDER
-
265RU-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
2793210-86509-00 O-RINGO-RING
-
2895022-06030-00 BOLT, FLANGEBOLT, FLANGE
