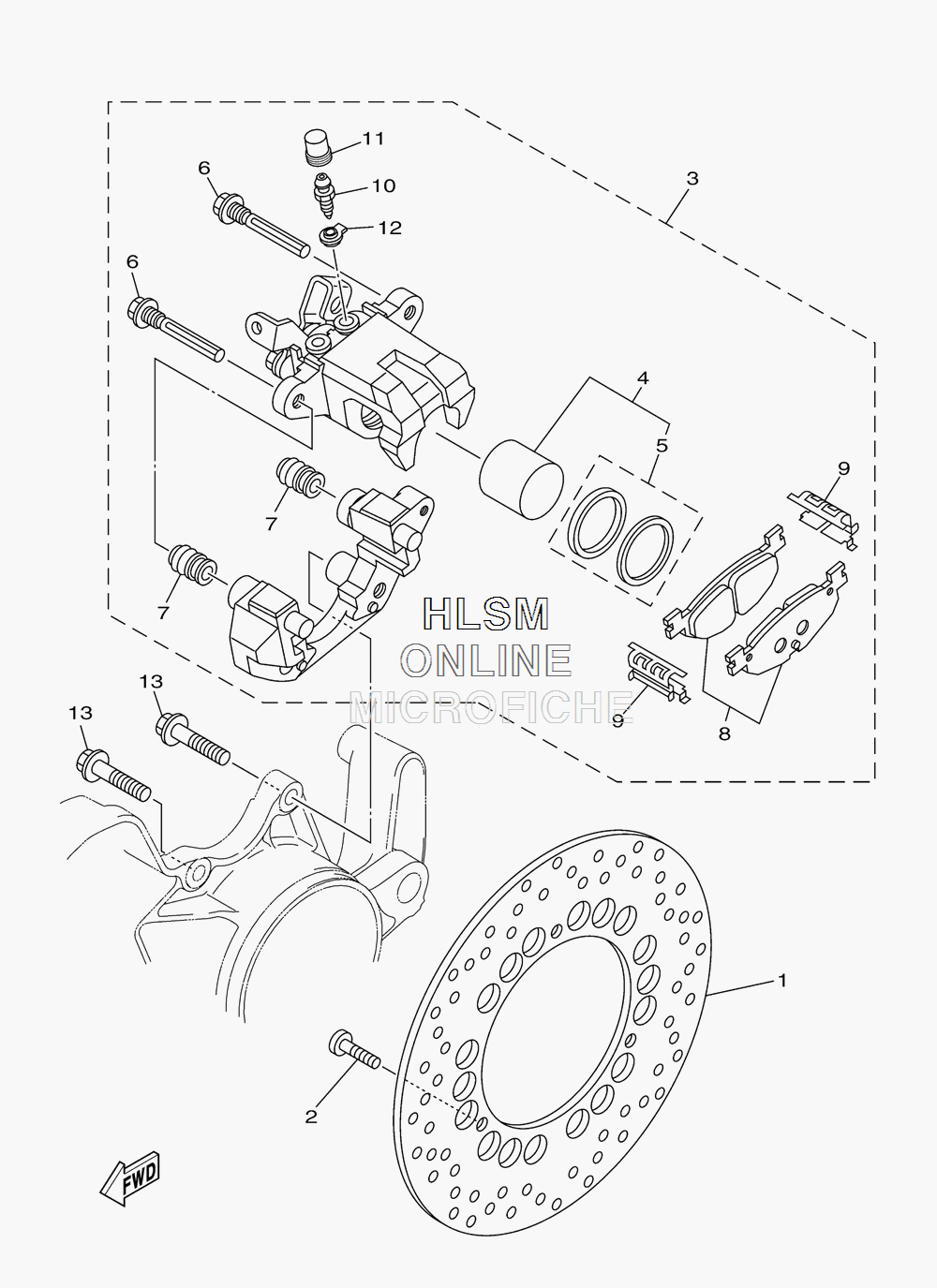

BRAKE - REAR CALIPER для Yamaha MAJESTY - 2013 года выпуска`
-
№АртикулНазвание
-
15RU-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
35RU-2580W-22-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
44D9-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55GJ-25803-01-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64D9-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85RU-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
94TT-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
105GM-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
111D7-25825-00-00 ...CAP...CAP
-
125GM-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
1390109-100G0-00 BOLTBOLT
