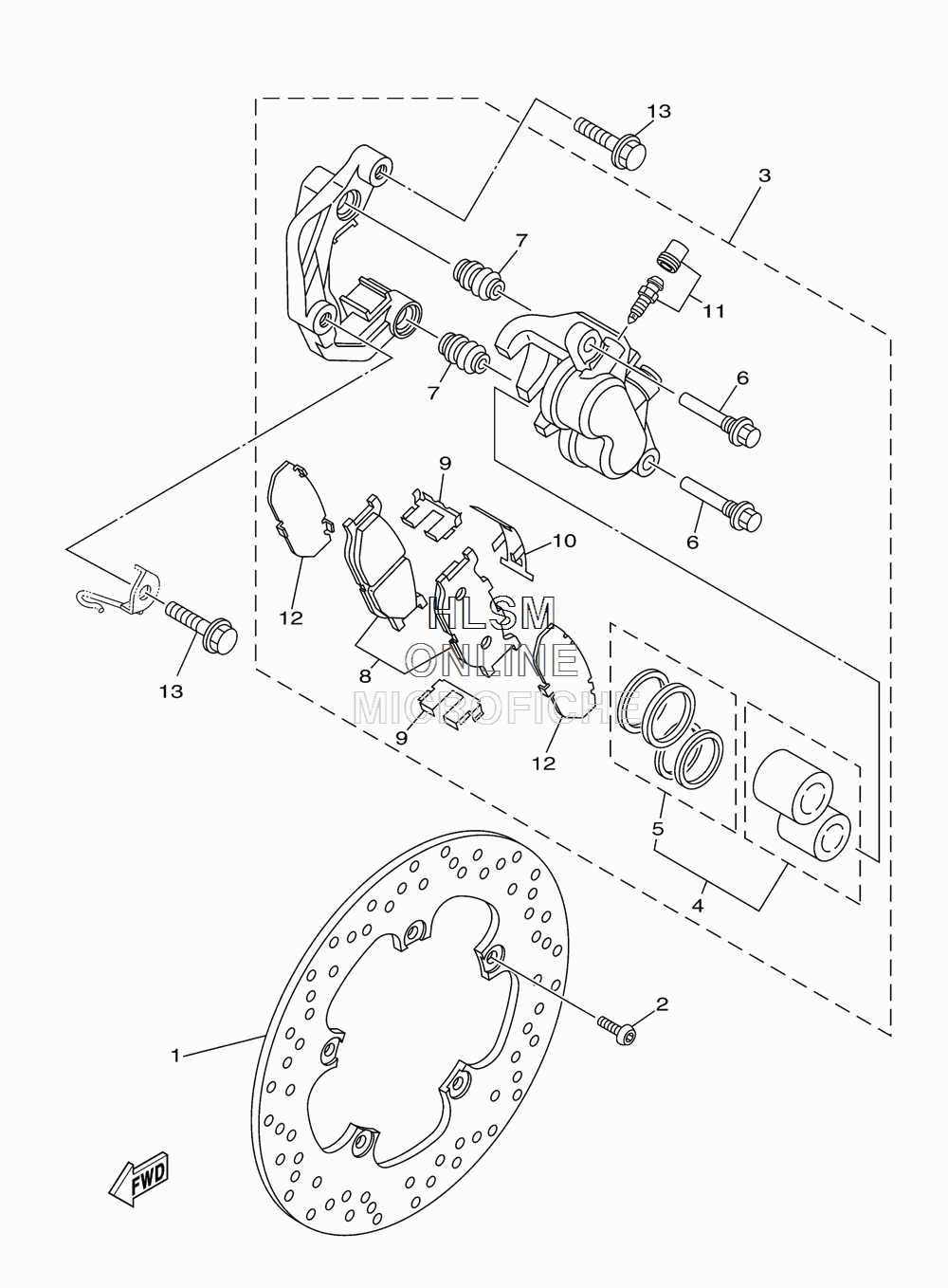

BRAKE - FRONT CALIPER для Yamaha MAJESTY - 2013 года выпуска`
-
№АртикулНазвание
-
15RU-2582T-20-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-083G4-00 BOLTBOLT
-
35RU-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43YX-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85RU-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1115B-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
124DN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1390109-100G0-00 BOLTBOLT
