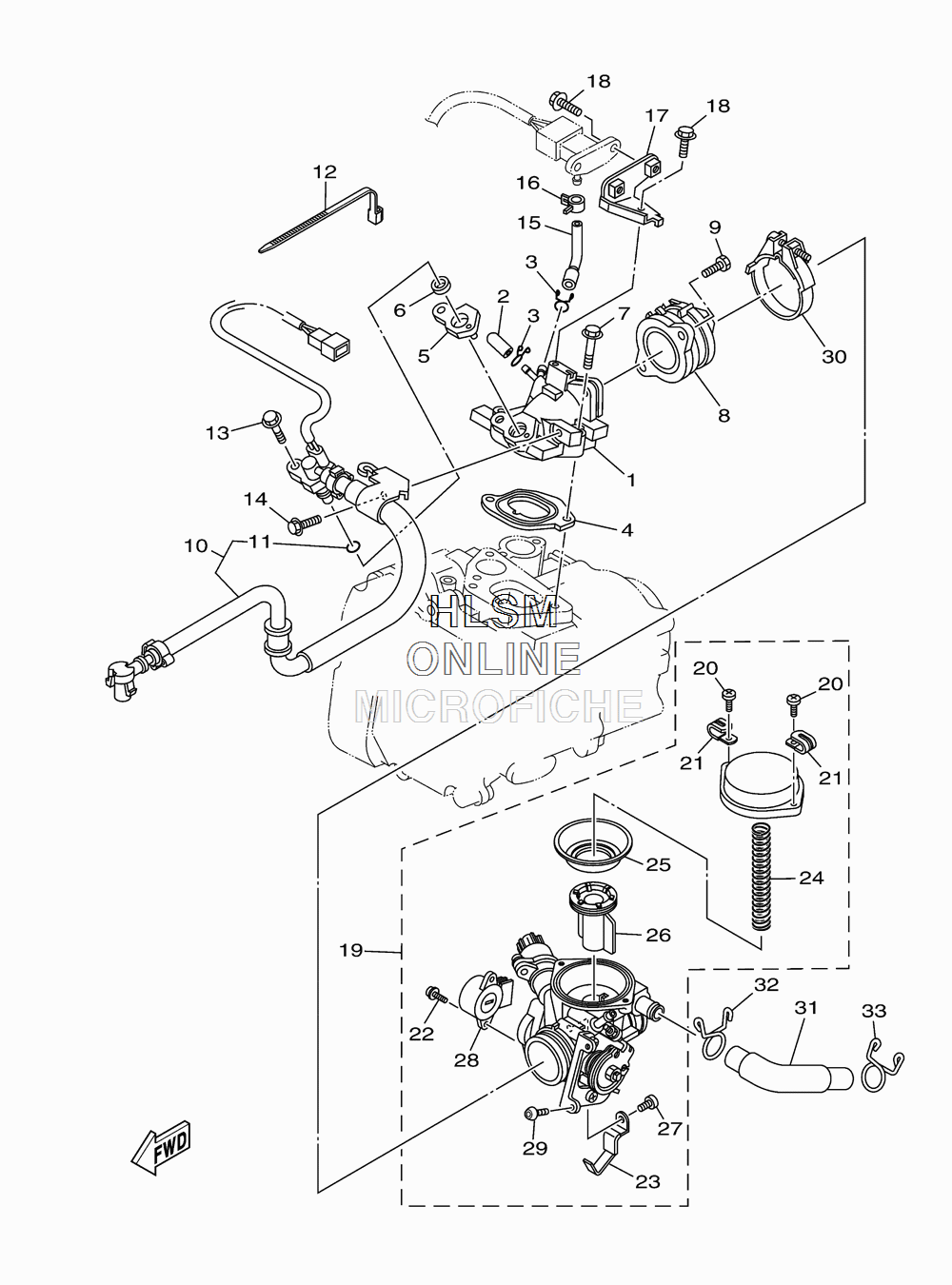

THROTTLE BODY ASSY для Yamaha MAJESTY - 2012 года выпуска`
-
№АртикулНазвание
-
15RU-13585-00-00 MANIFOLDMANIFOLD
-
25PX-13569-00-00 PLUG, BLINDPLUG, BLIND
-
390467-08075-00 CLIPCLIP
-
45RU-13595-00-00 JOINTJOINT
-
55RU-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
690430-09005-00 GASKETGASKET
-
795022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
85RU-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
997022-06020-00 BOLTBOLT
-
105RU-13930-01-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
115CA-14147-00-00 ...O-RING...O-RING
-
1290464-13073-00 CLAMPCLAMP
-
1390105-06122-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-05024-00 BOLT, FLANGEBOLT, FLANGE
-
155RU-13895-00-00 HOSE, AIRHOSE, AIR
-
1690467-07138-00 CLIPCLIP
-
175RU-14291-10-00 BRACKET 1BRACKET 1
-
1895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
195RU-13750-30-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
205LB-14216-00-00 ...SCREW...SCREW
-
214KL-14415-00-00 ...HOLDER, WIRE...HOLDER, WIRE
-
225CA-14216-00-00 ...SCREW...SCREW
-
235LP-15484-00-00 ...CLAMP 2...CLAMP 2
-
245RU-14286-00-00 ...SPRING...SPRING
-
255RU-14368-01-00 ...DIAPHRAGM ASSY 1...DIAPHRAGM ASSY 1
-
265RU-14313-00-00 ...SUCTION PISTON...SUCTION PISTON
-
275LB-14216-00-00 ...SCREW...SCREW
-
285RU-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
2992012-05012-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3090450-57014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
315RU-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
3290467-18196-00 CLIPCLIP
-
3390467-20030-00 CLIPCLIP
