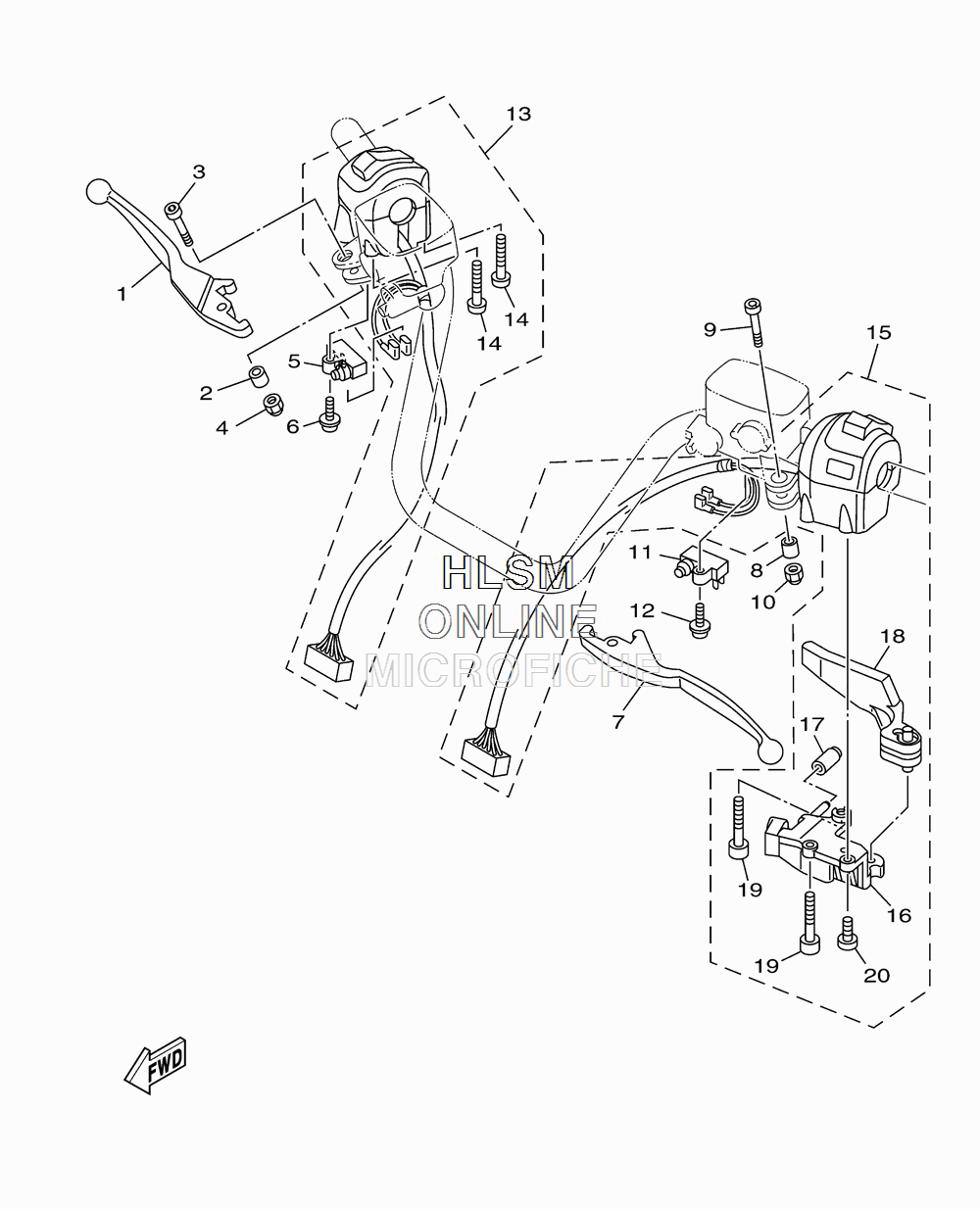

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha MAJESTY - 2012 года выпуска`
-
№АртикулНазвание
-
15GJ-83922-00-00 LEVER 2LEVER 2
-
236Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
390110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
495607-06100-00 NUT, UNUT, U
-
536Y-82917-00-00 SWITCHSWITCH
-
697607-04216-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
75GJ-83912-00-00 LEVER 1LEVER 1
-
836Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
990110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1095607-06100-00 NUT, UNUT, U
-
1136Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1297607-04216-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
135RU-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1498507-05050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155RU-83973-01-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
165RB-26396-01-00 ...HOLDER, ADJUSTING...HOLDER, ADJUSTING
-
175RB-13569-00-00 ...PLUG, BLIND...PLUG, BLIND
-
185VU-83930-00-00 ...LEVER LOCK ASSY...LEVER LOCK ASSY
-
1991317-05055-00 ...BOLT...BOLT
-
2098507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
