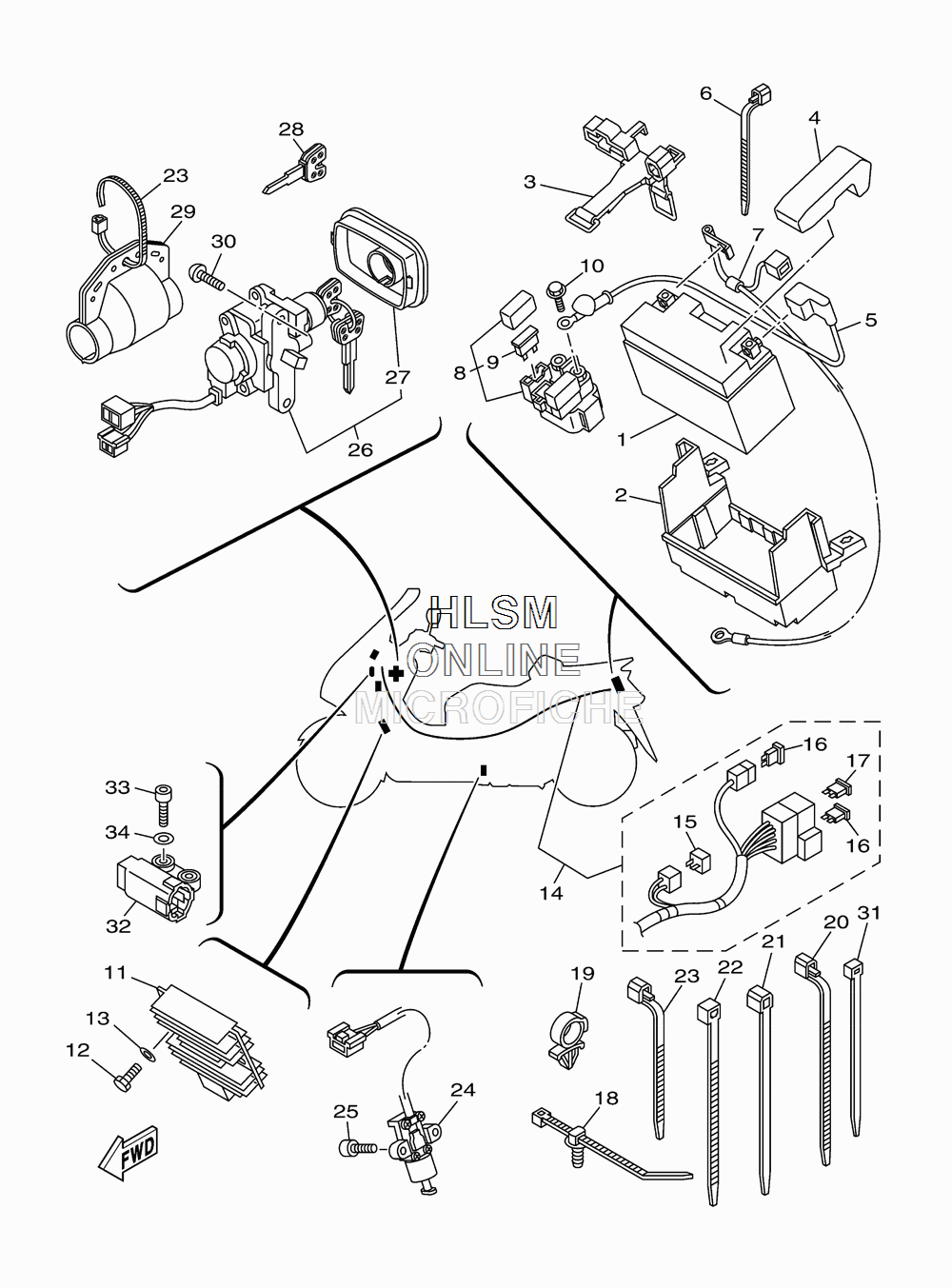

ELECTRICAL для Yamaha MAJESTY - 2012 года выпуска`
-
№АртикулНазвание
-
15GJ-82100-01-00 BATTERY ASSY (GS GT9B-4)BATTERY ASSY (GS GT9B-4)
-
25RU-82129-01-00 COVER, BATTERYCOVER, BATTERY
-
35RU-82131-00-00 BAND, BATTERYBAND, BATTERY
-
45RU-82556-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
55RU-82115-00-00 WIRE, PLUS LEAD 1WIRE, PLUS LEAD 1
-
690464-13073-00 CLAMPCLAMP
-
75RU-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
85RU-81940-03-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
95EA-82151-00-00 FUSE (40A-BL)FUSE (40A-BL)
-
1095022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
114XY-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1297002-06030-00 BOLTBOLT
-
1392902-06600-00 WASHER, PLATEWASHER, PLATE
-
145RU-82590-80-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
154WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
165JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
175JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
185RU-12491-00-00 CLAMP 1CLAMP 1
-
1990464-18246-00 CLAMPCLAMP
-
2090464-15195-00 CLAMPCLAMP
-
2190465-13M24-00 CLAMPCLAMP
-
223MA-82591-00-00 BANDBAND
-
2390464-13073-00 CLAMPCLAMP
-
245RU-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2590110-05031-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
265RU-82501-21-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
275SJ-82552-21-00 ...CAP, SWITCH...CAP, SWITCH
-
284BH-82511-09-00 BLANK KEYBLANK KEY
-
295RU-8252U-00-00 COVERCOVER
-
3090149-06118-00 SCREWSCREW
-
315Y9-12491-00-00 CLAMP 1CLAMP 1
-
325VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3391312-04025-00 BOLTBOLT
-
3490201-04027-00 WASHER, PLATEWASHER, PLATE
