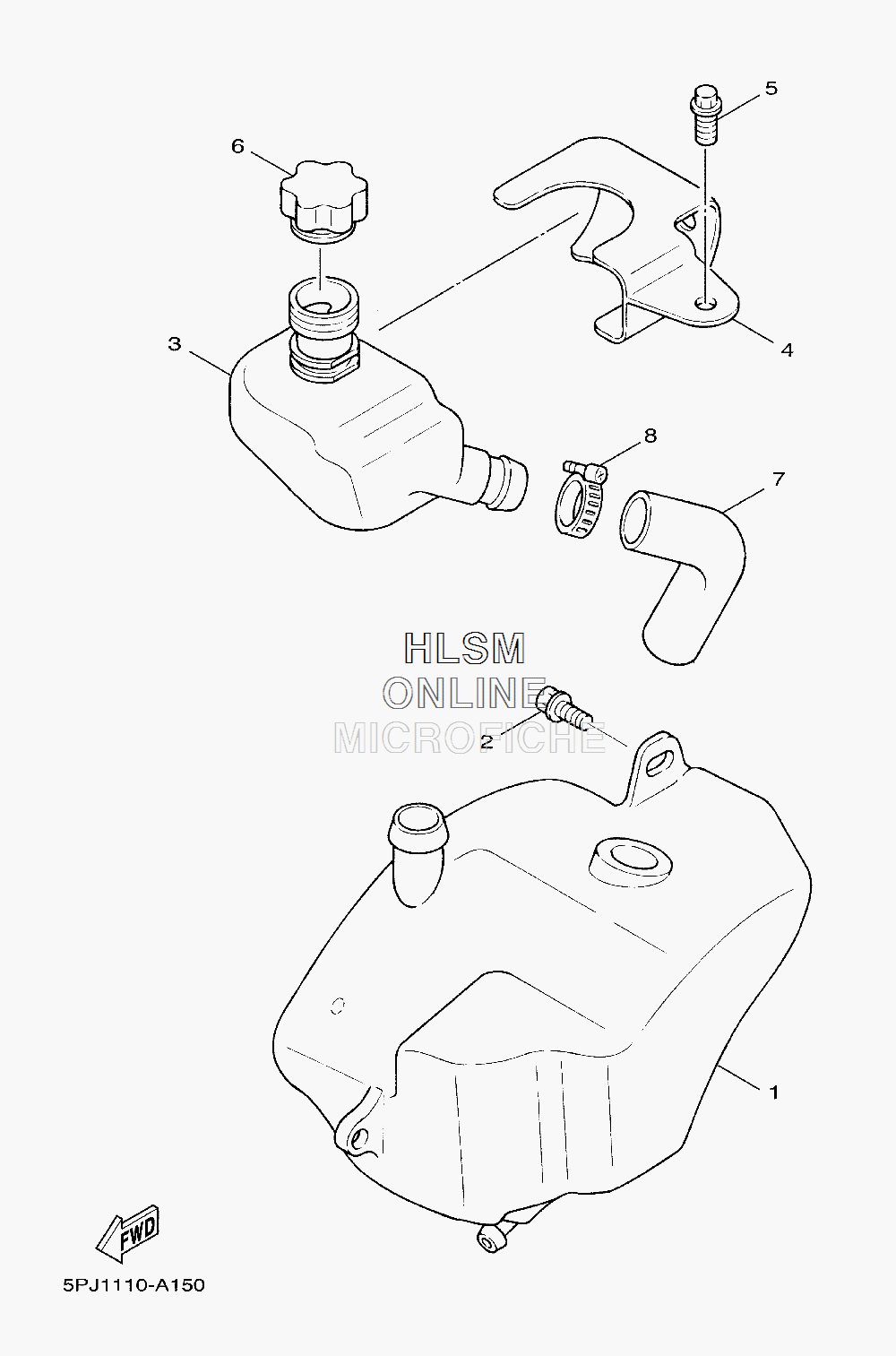

OIL TANK для Yamaha ZUMA - 2011 года выпуска`
-
№АртикулНазвание
-
14VP-F1751-00-00 TANK, OILTANK, OIL
-
290119-06802-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35PJ-F1733-00-00 SUB TANK, OILSUB TANK, OIL
-
44VP-F1734-00-00 HOLDER, OIL SUB TANKHOLDER, OIL SUB TANK
-
597507-05510-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
63BN-21770-01-00 OIL TANK CAP ASSYOIL TANK CAP ASSY
-
74VP-F1745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
890460-27815-00 CLAMP, HOSECLAMP, HOSE
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- • OIL TANK
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
