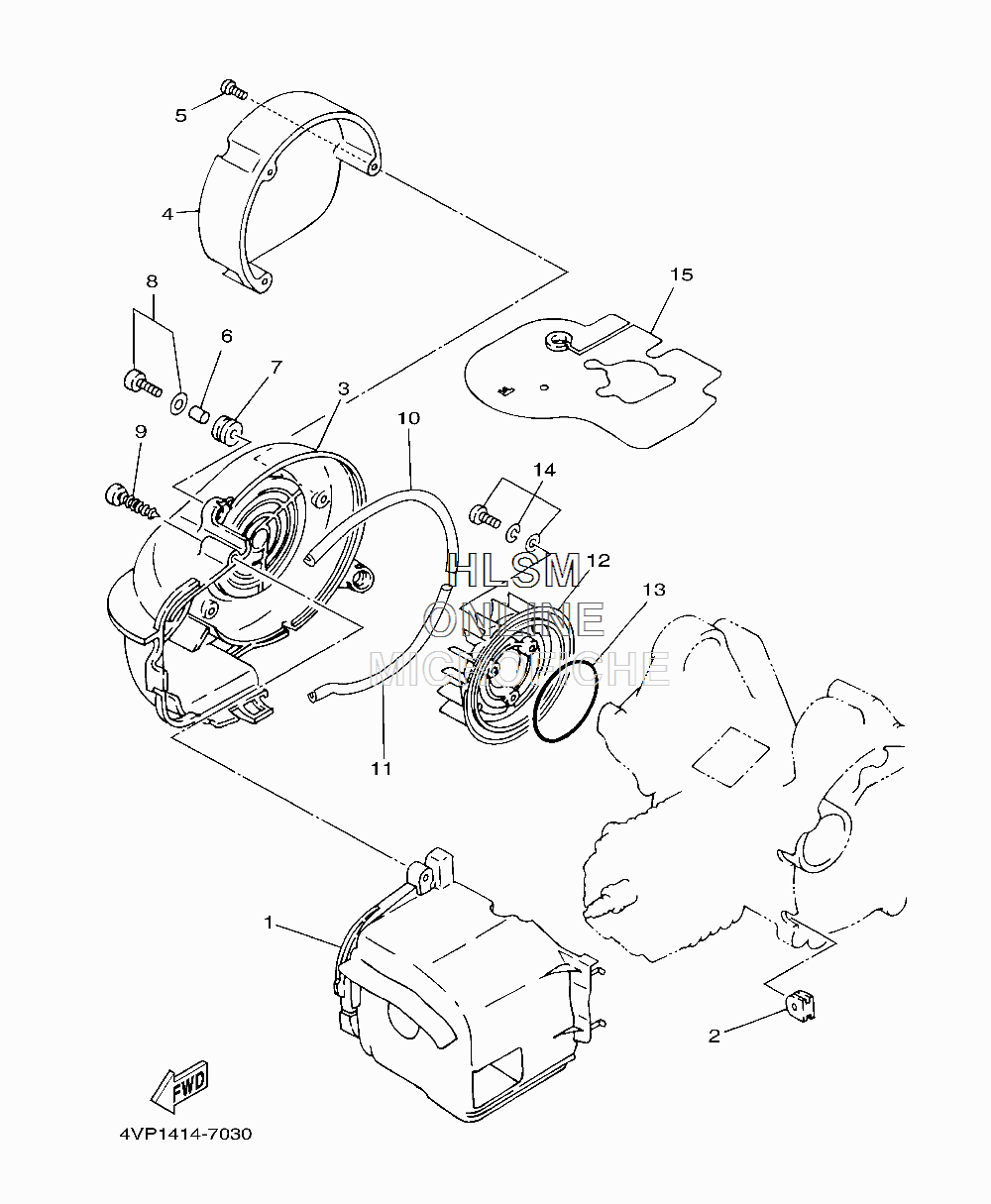

AIR SHROUD W/ FAN для Yamaha ZUMA - 2011 года выпуска`
-
№АртикулНазвание
-
14WX-E2651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
290480-11866-00 GROMMETGROMMET
-
34WX-E2653-00-00 AIR SHROUD, CYLINDER 3AIR SHROUD, CYLINDER 3
-
44DY-E262H-00-00 GUIDE 1GUIDE 1
-
597707-40514-00 SCREW, TAPPINGSCREW, TAPPING
-
690387-068J5-00 COLLARCOLLAR
-
790480-12497-00 GROMMETGROMMET
-
897607-06220-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
997707-60540-00 SCREW, TAPPINGSCREW, TAPPING
-
104VP-E2658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
114VP-E2659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
124DY-E2611-00-00 FANFAN
-
1393210-64893-00 O-RINGO-RING
-
1490119-06857-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
153XG-E2631-00-00 DEFLECTOR 1DEFLECTOR 1
