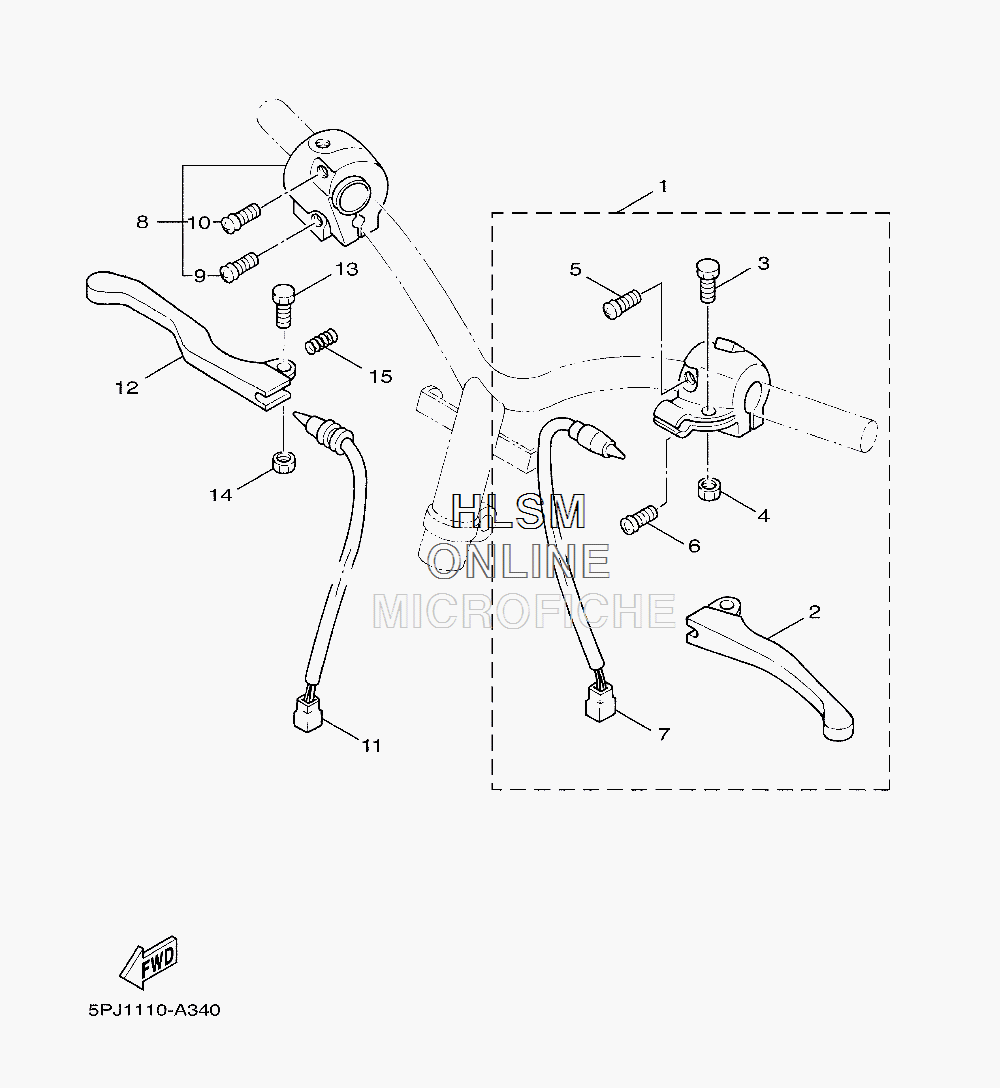

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ZUMA - 2011 года выпуска`
-
№АртикулНазвание
-
15PJ-H2910-01-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24VP-H3912-10-00 ...LEVER 1...LEVER 1
-
33XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
495607-05100-00 ...NUT, U...NUT, U
-
598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
698507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
75PJ-H3980-01-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
85PJ-H3976-01-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
998507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1098507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
115MJ-H3980-11-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
124VP-H3922-10-00 LEVER 2LEVER 2
-
1390109-06577-00 BOLTBOLT
-
1495607-06100-00 NUT, UNUT, U
-
1590501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
