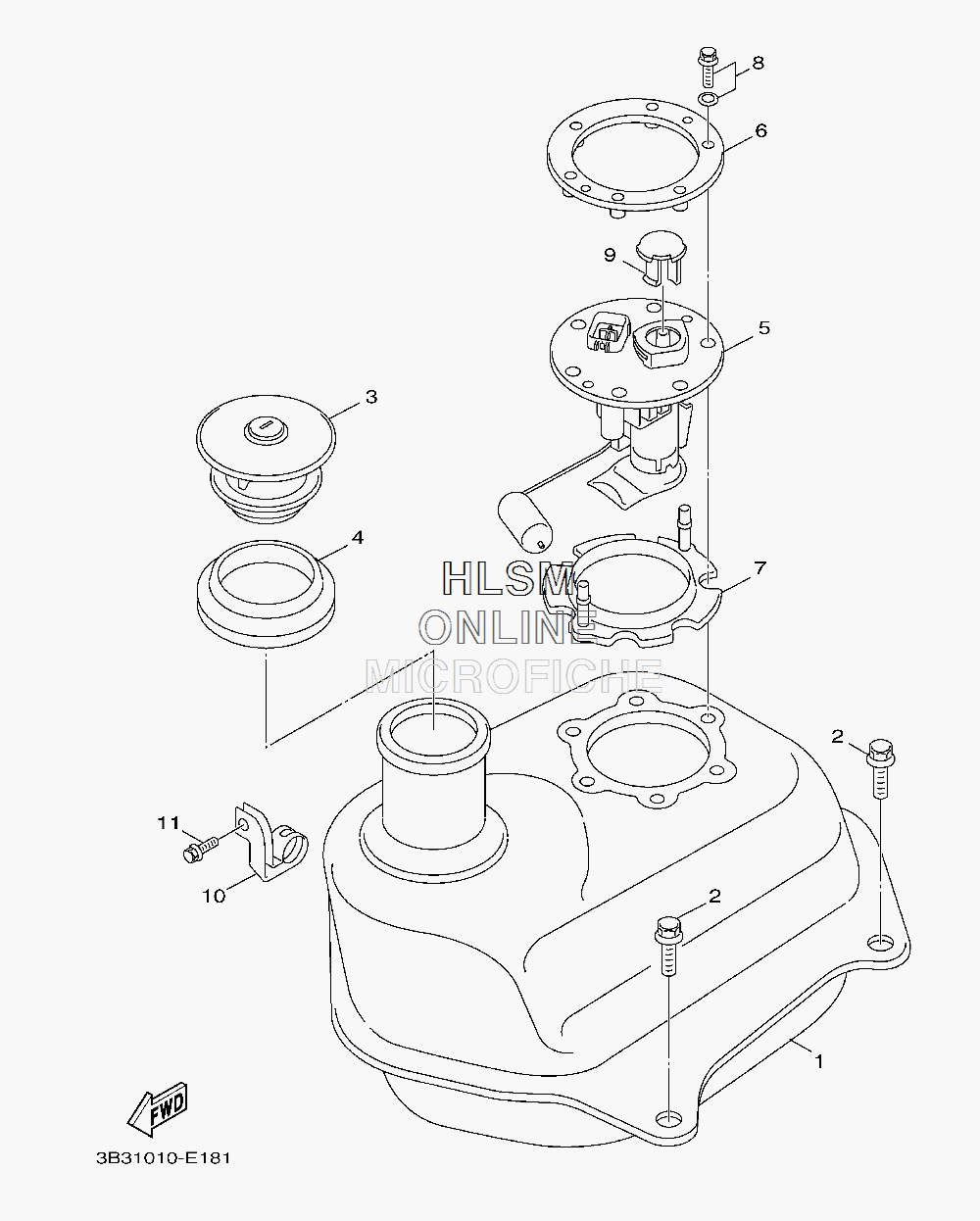

FUEL TANK ASSY. для Yamaha C3 - 2011 года выпуска`
-
№АртикулНазвание
-
13B3-F4110-00-33 FUEL TANK COMP. (YAMAHA BLACK)FUEL TANK COMP. (YAMAHA BLACK)
-
295827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
33B3-F4602-01-00 CAP ASSYCAP ASSY
-
43B3-F414G-00-00 SEALSEAL
-
53B3-E3907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
63D0-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
75CA-2414G-01-00 SEALSEAL
-
897507-05520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
95VU-24135-00-00 CLAMP 1CLAMP 1
-
103B3-F4136-00-00 CLAMP 2CLAMP 2
-
1195807-06012-00 BOLT, FLANGEBOLT, FLANGE
