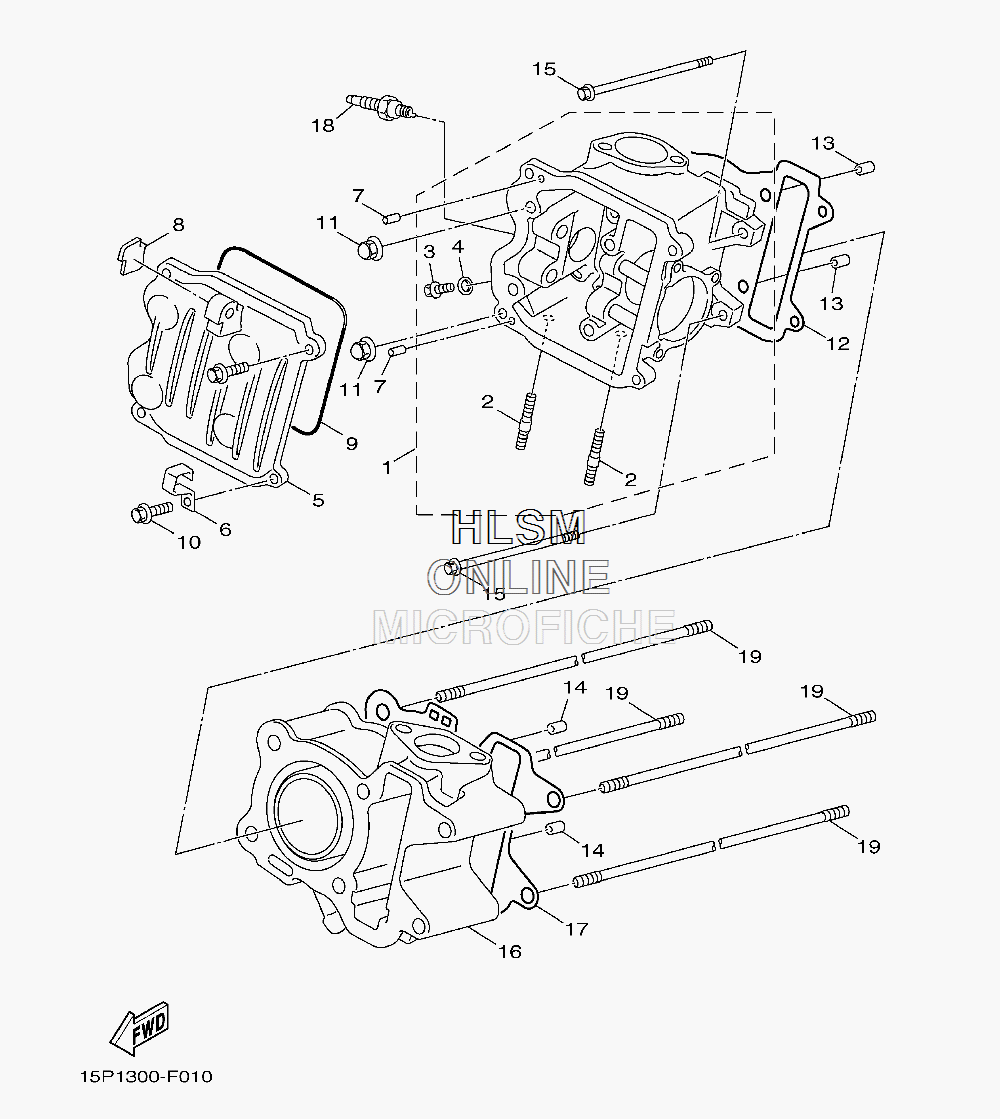

CYLINDER W/ HEAD ASSY. для Yamaha C3 - 2011 года выпуска`
-
№АртикулНазвание
-
110B-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
290116-08808-00 ...BOLT, STUD...BOLT, STUD
-
390153-06804-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
490430-06014-00 ...GASKET...GASKET
-
510B-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
690462-08809-00 CLAMPCLAMP
-
793603-09106-00 PIN, DOWELPIN, DOWEL
-
83B3-E131M-00-00 COVERCOVER
-
993211-18800-00 O-RINGO-RING
-
1095027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1190176-06806-00 NUT, CROWNNUT, CROWN
-
125ST-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1391810-14807-00 PIN, DOWELPIN, DOWEL
-
1491810-14807-00 PIN, DOWELPIN, DOWEL
-
1595027-06080-00 BOLT, FLANGEBOLT, FLANGE
-
163B3-E1311-00-00 CYLINDER 1CYLINDER 1
-
175ST-E1351-10-00 GASKET, CYLINDERGASKET, CYLINDER
-
1894700-00840-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
193B3-E1391-00-00 BOLT, STUD 1BOLT, STUD 1
