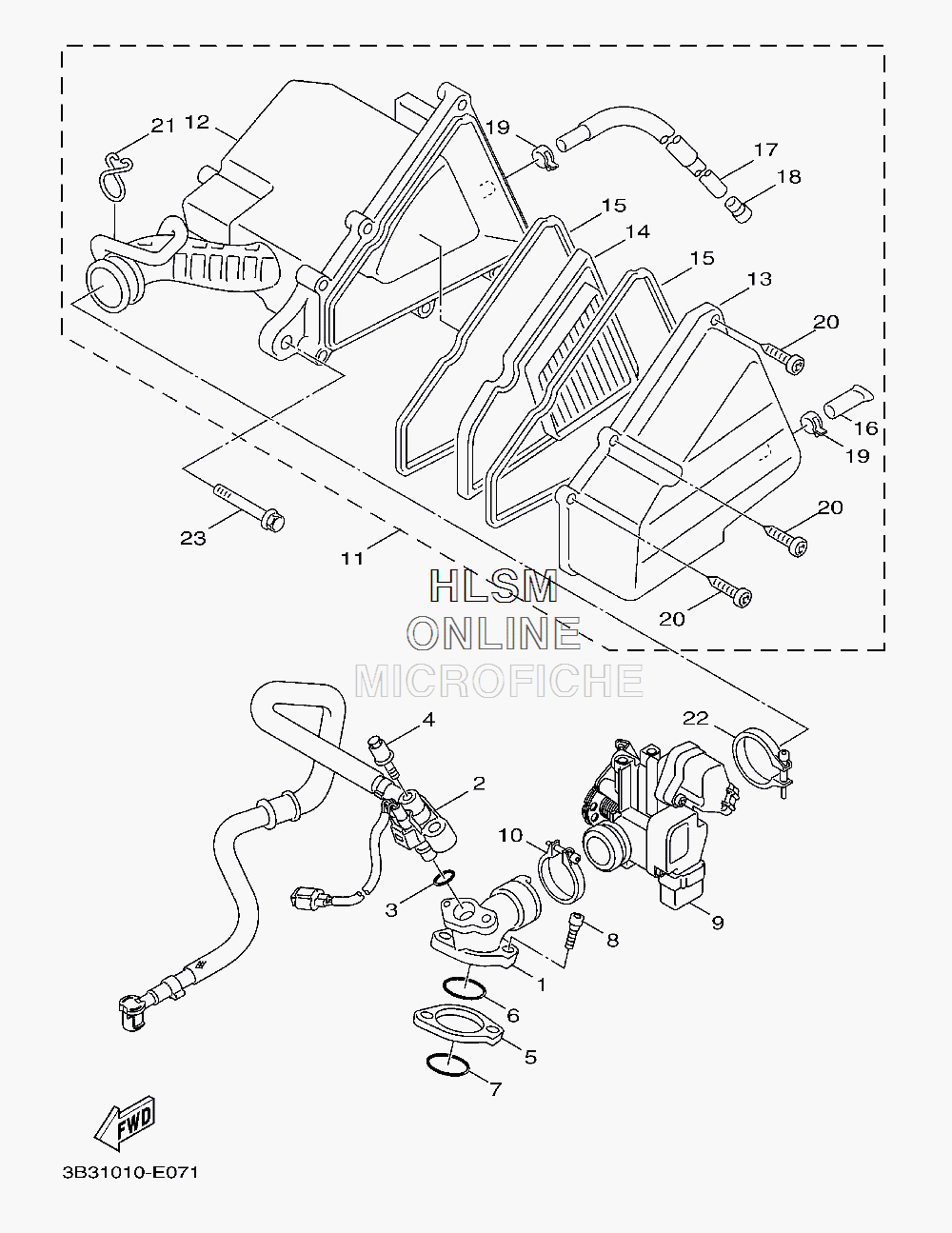

AIR CLEANER ASSY. W/ INTAKE для Yamaha C3 - 2011 года выпуска`
-
№АртикулНазвание
-
13B3-E3585-01-00 MANIFOLDMANIFOLD
-
23B3-13930-01-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
35CA-14147-00-00 ...O-RING...O-RING
-
490109-06834-00 BOLTBOLT
-
53B3-E3595-00-00 JOINTJOINT
-
693210-22803-00 O-RINGO-RING
-
793210-22803-00 O-RINGO-RING
-
891317-06025-00 BOLTBOLT
-
93B3-E3750-01-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
103B3-E3575-00-00 BANDBAND
-
113B3-E4410-01-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
123B3-WE441-01-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
133B3-WE442-01-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
143B3-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
153B3-E4467-00-00 ...SEAL...SEAL
-
163B3-E443G-00-00 ...PIPE, DRAIN 2...PIPE, DRAIN 2
-
173B3-E443H-00-00 ...PIPE, DRAIN 3...PIPE, DRAIN 3
-
183B3-E4191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
1990467-12804-00 ...CLIP...CLIP
-
2097707-50025-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2190467-16829-00 ...CLIP...CLIP
-
223B3-E3474-00-00 BANDBAND
-
2395827-06030-00 BOLT, FLANGEBOLT, FLANGE
