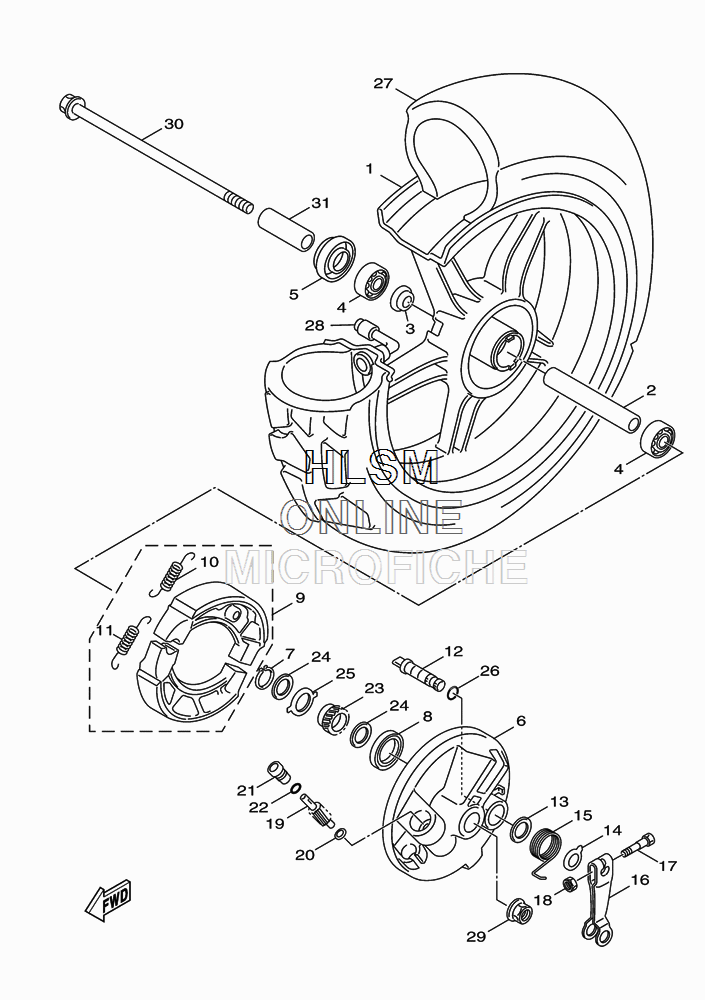

WHEEL - FRONT для Yamaha C3 - 2010 года выпуска`
-
№АртикулНазвание
-
13B3-F5168-01-33 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
23B3-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
320A-F5115-00-00 FLANGE, SPACER 1FLANGE, SPACER 1
-
493306-300Y4-00 BEARINGBEARING
-
593106-20808-00 OIL SEALOIL SEAL
-
63B3-F5121-00-33 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
799009-20400-00 CIRCLIPCIRCLIP
-
893102-44833-00 OIL SEALOIL SEAL
-
93B3-WF514-10-00 BRAKE SHOE KIT 1BRAKE SHOE KIT 1
-
1090506-12001-00 SPRING, TENSIONSPRING, TENSION
-
1190506-15001-00 SPRING, TENSIONSPRING, TENSION
-
125ST-F5151-00-00 CAMSHAFTCAMSHAFT
-
1393109-14021-00 OIL SEALOIL SEAL
-
145SU-F533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
1590508-28801-00 SPRING, TORSIONSPRING, TORSION
-
165ST-F5155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1790101-06818-00 BOLTBOLT
-
1895302-06600-00 NUTNUT
-
193B3-F5138-00-00 GEAR, METERGEAR, METER
-
2090201-07076-00 WASHER, PLATEWASHER, PLATE
-
213N2-F5136-00-00 BUSHBUSH
-
2293104-07803-00 OIL SEALOIL SEAL
-
233B3-F5135-00-00 GEAR, DRIVEGEAR, DRIVE
-
2490201-20269-00 WASHER, PLATEWASHER, PLATE
-
254X6-F5149-00-00 CLUTCH, METERCLUTCH, METER
-
2693210-14805-00 O-RINGO-RING
-
2794112-10800-00 TIRETIRE
-
2893900-00820-00 VALVE, RIM TR413VALVE, RIM TR413
-
2990185-10812-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
303B3-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
313B3-F5186-10-00 COLLAR, WHEELCOLLAR, WHEEL
