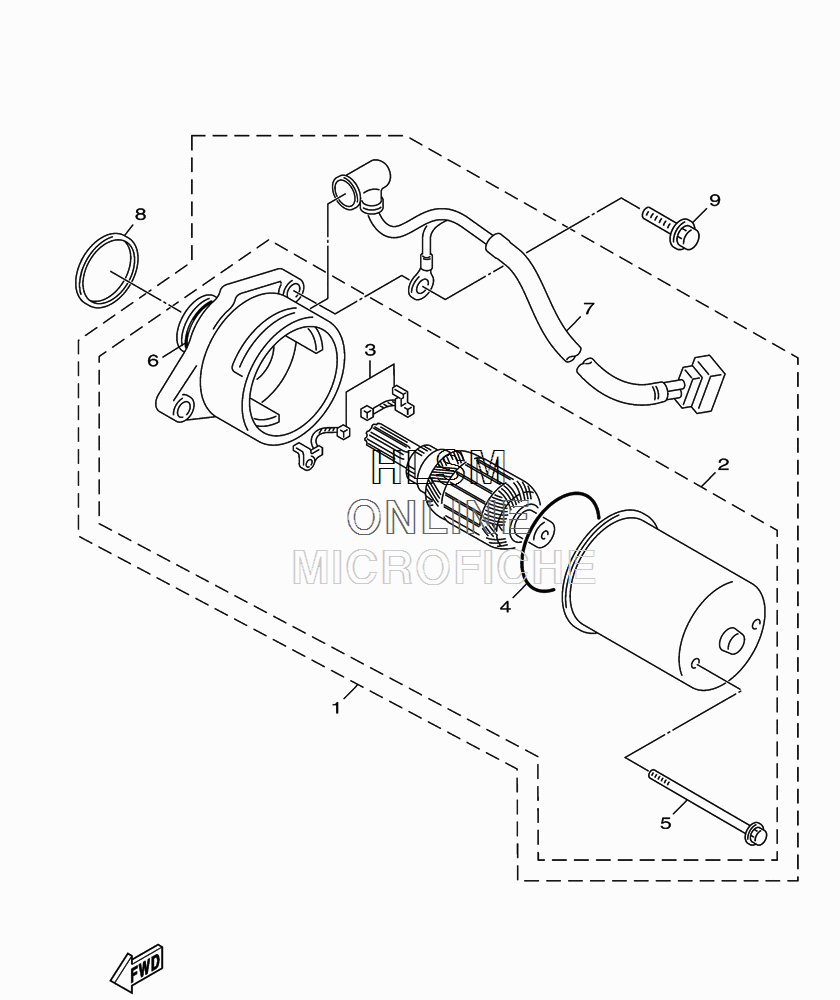

STARTING MOTOR ASSY. для Yamaha C3 - 2010 года выпуска`
-
№АртикулНазвание
-
13B3-H1800-01-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23B3-WH180-01-00 ELECTRIC STARTER KITELECTRIC STARTER KIT
-
34DM-H1801-00-00 BRUSH SETBRUSH SET
-
493210-44678-00 O-RINGO-RING
-
55ST-H1828-10-00 BOLT 2BOLT 2
-
693210-23614-00 O-RINGO-RING
-
75ST-H183G-20-00 CORD COMP.CORD COMP.
-
890202-26800-00 WASHER, PLATEWASHER, PLATE
-
991317-06020-00 BOLTBOLT
