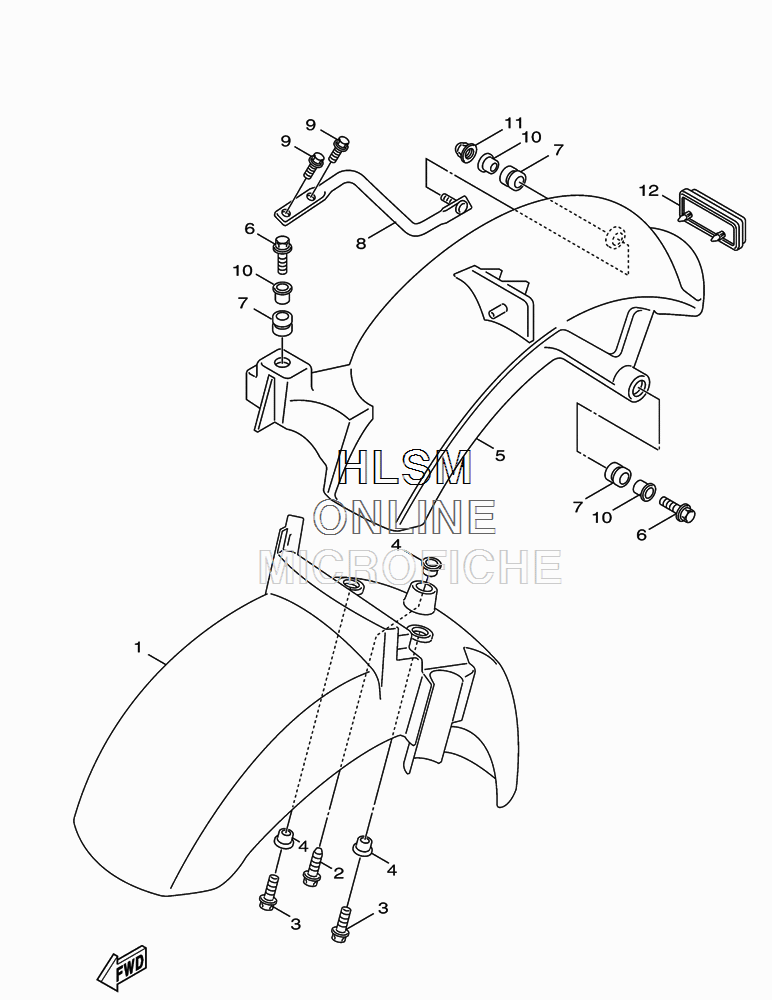

FENDER - FRONT / REAR для Yamaha C3 - 2010 года выпуска`
-
№АртикулНазвание
-
13B3-F1511-01-P3 FENDER, FRONTFENDER, FRONT
-
290119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
395807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
490387-068F8-00 COLLARCOLLAR
-
53B3-F1611-00-00 FENDER, REARFENDER, REAR
-
690119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790480-12237-00 GROMMETGROMMET
-
83B3-F1613-00-00 STAY, FENDER 1STAY, FENDER 1
-
995827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-087L0-00 COLLARCOLLAR
-
1190176-06008-00 NUT, CROWNNUT, CROWN
-
123B3-H5150-00-00 PANEL, SIDEPANEL, SIDE
