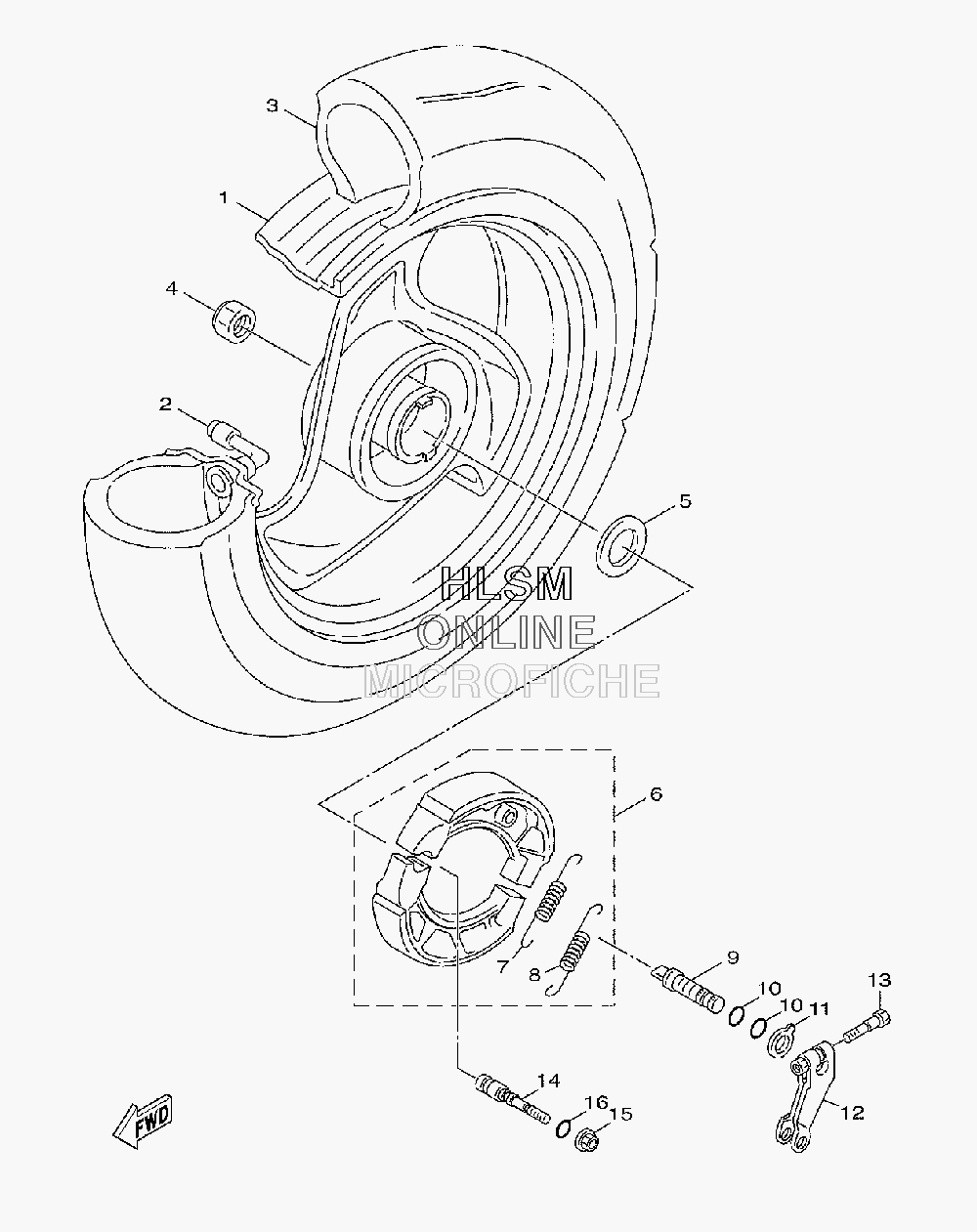

WHEEL - REAR для Yamaha VINO 125 - 2009 года выпуска`
-
№АртикулНазвание
-
14HP-F5338-12-1V CAST WHEEL, REAR FSCAST WHEEL, REAR FS
-
293900-00802-00 VALVE, RIM TR413VALVE, RIM TR413
-
394135-108H0-00 TIRE (3.50-10) CHENGSHINTIRE (3.50-10) CHENGSHIN
-
490185-14124-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
65YR-XF533-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
790506-12001-00 SPRING, TENSIONSPRING, TENSION
-
890506-15001-00 SPRING, TENSIONSPRING, TENSION
-
95YR-F5351-00-00 CAMSHAFTCAMSHAFT
-
1093210-09859-00 O-RINGO-RING
-
114CW-F533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
124CW-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1390101-06278-00 BOLTBOLT
-
143C8-F5326-00-00 PIN, PIVOTPIN, PIVOT
-
1595707-10500-00 NUT, FLANGENUT, FLANGE
-
1693210-07890-00 O-RINGO-RING
