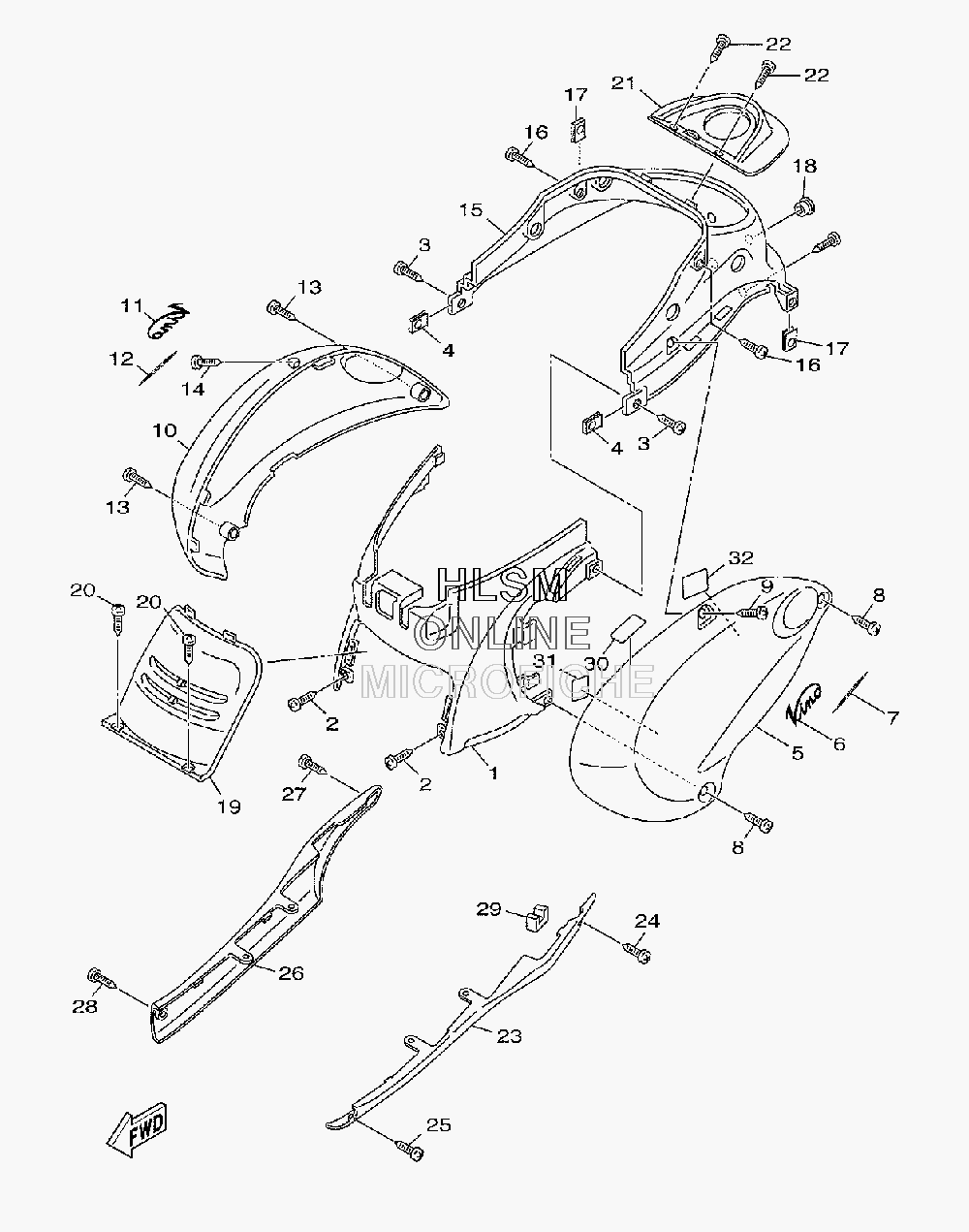

SIDE COVER для Yamaha VINO 125 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5JS-F1711-00-33 COVER, SIDE 1 USE FOR COLOR YAMAHA BLACK ( YB / 0033 )
    COVER, SIDE 1 USE FOR COLOR YAMAHA BLACK ( YB / 0033 )
  • 2
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 3
    97707-50016-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 4
    90183-05807-00 NUT, SPRING
    NUT, SPRING
  • 5
    5JS-XF172-01-P8 COVER, SIDE 2 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
    COVER, SIDE 2 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
  • 5
    5JS-XF172-01-P9 COVER, SIDE 2 USE FOR COLOR DOURADO ( D / 00BD )
    COVER, SIDE 2 USE FOR COLOR DOURADO ( D / 00BD )
  • 6
    5YR-F173B-00-00 EMBLEM 3D
    EMBLEM 3D
  • 7
    5YR-F1781-00-00 EMBLEM 1
    EMBLEM 1
  • 8
    97780-50012-00 SCREW, TAPPING(4HP)
    SCREW, TAPPING(4HP)
  • 9
    97780-50016-00 SCREW, TAPPING
    SCREW, TAPPING
  • 10
    5JS-XF173-00-P8 COVER, SIDE 3 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
    COVER, SIDE 3 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
  • 10
    5JS-XF173-00-P9 COVER, SIDE 3 USE FOR COLOR DOURADO ( D / 00BD )
    COVER, SIDE 3 USE FOR COLOR DOURADO ( D / 00BD )
  • 11
    5YR-F174B-00-00 EMBLEM 3D
    EMBLEM 3D
  • 12
    5YR-F1781-00-00 EMBLEM 1
    EMBLEM 1
  • 13
    97780-50012-00 SCREW, TAPPING
    SCREW, TAPPING
  • 14
    97780-50016-00 SCREW, TAPPING
    SCREW, TAPPING
  • 15
    5JS-F1741-00-33 COVER, SIDE 4 USE FOR COLOR YAMAHA BLACK ( YB / 0033 )
    COVER, SIDE 4 USE FOR COLOR YAMAHA BLACK ( YB / 0033 )
  • 16
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 17
    90183-05807-00 NUT, SPRING
    NUT, SPRING
  • 18
    90387-068S1-00 COLLAR
    COLLAR
  • 19
    5JS-F171E-40-0X COVER, SIDE 5 USE FOR COLOR YAMAHA BLACK ( YB / 0033 )
    COVER, SIDE 5 USE FOR COLOR YAMAHA BLACK ( YB / 0033 )
  • 20
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 21
    5JS-F171X-00-00 COVER, SIDE 6
    COVER, SIDE 6
  • 22
    97780-50012-00 SCREW, TAPPING
    SCREW, TAPPING
  • 23
    5JS-F171L-01-PA MOLE, SIDE COVER 1 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
    MOLE, SIDE COVER 1 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
  • 23
    5JS-F171L-01-PB MOLE, SIDE COVER 1 USE FOR COLOR DOURADO ( D / 00BD )
    MOLE, SIDE COVER 1 USE FOR COLOR DOURADO ( D / 00BD )
  • 24
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 25
    97780-50012-00 SCREW, TAPPING
    SCREW, TAPPING
  • 26
    5JS-F171M-00-PA MOLE, SIDE COVER 2 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
    MOLE, SIDE COVER 2 USE FOR COLOR LIGHT GRAY METALLIC K ( LNMK / 0848 )
  • 26
    5JS-F171M-00-PB MOLE, SIDE COVER 2 USE FOR COLOR DOURADO ( D / 00BD )
    MOLE, SIDE COVER 2 USE FOR COLOR DOURADO ( D / 00BD )
  • 27
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 28
    97780-50012-00 SCREW, TAPPING
    SCREW, TAPPING
  • 29
    5JS-F1747-00-00 DAMPER
    DAMPER
  • 30
    4JK-F8446-01-00 LABEL, CAUTION
    LABEL, CAUTION
  • 31
    5YR-F1686-00-00 PLATE, ROUTING 2
    PLATE, ROUTING 2
  • 32
    5YR-F176P-10-00 PLATE, EPA (CALIFORNIA)
    PLATE, EPA (CALIFORNIA)
