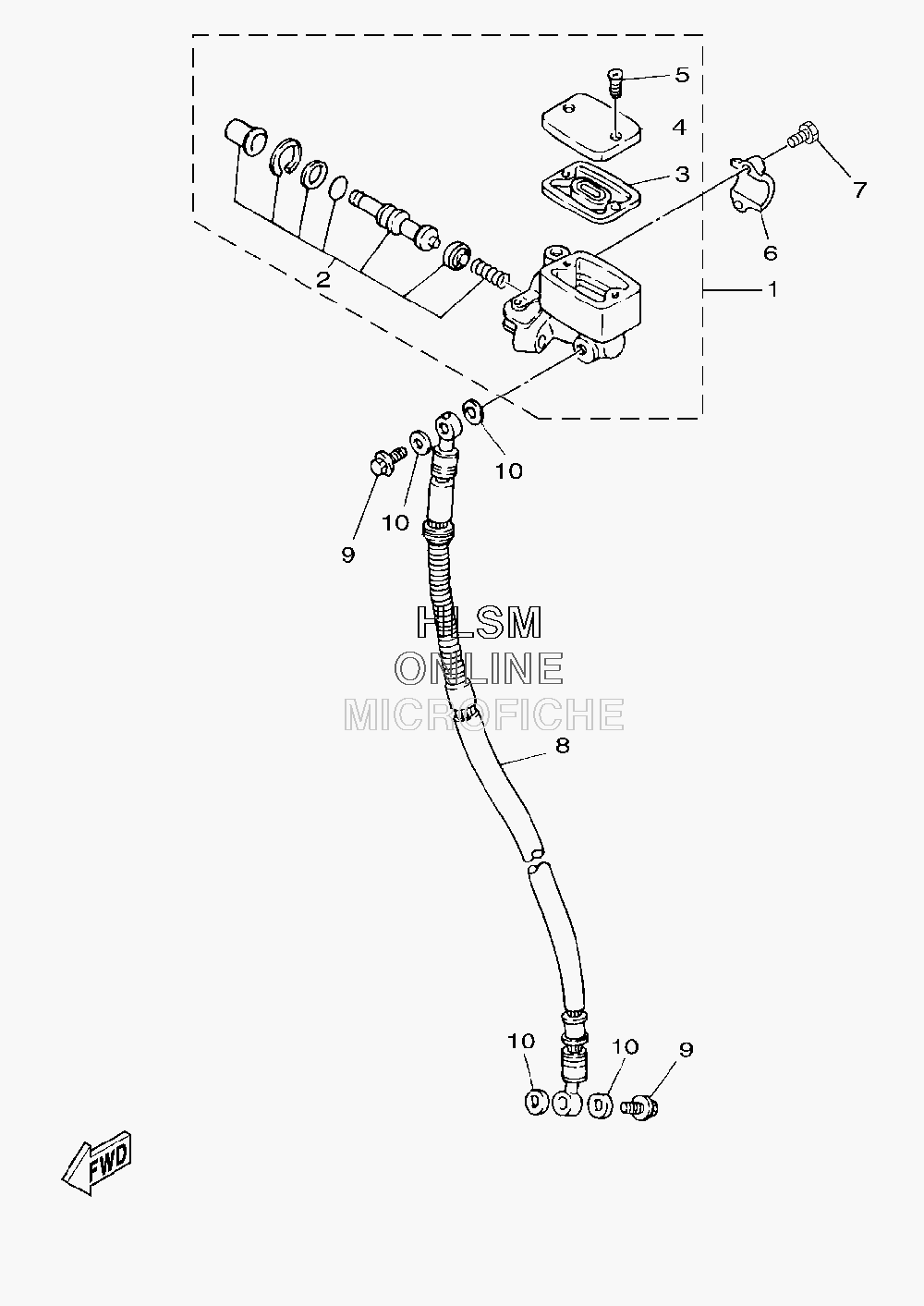

BRAKE - FRONT MASTER CYLINDER для Yamaha VINO 125 - 2009 года выпуска
-
№АртикулНазвание
-
15YR-F5870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25NW-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
33GF-F5854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
43GF-F5852-10-00 CAP, RESERVOIRCAP, RESERVOIR
-
598780-04012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
65FJ-F5867-00-00 HOLDERHOLDER
-
791380-06025-00 BOLTBOLT
-
85YR-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
990401-10805-00 BOLT, UNIONBOLT, UNION
-
1090201-10118-00 WASHER, PLATEWASHER, PLATE
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- BRAKE - FRONT CALIPER
- • BRAKE - FRONT MASTER CYLINDER
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- EXHAUST ASSY.
- FENDER - FRONT
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY.
- WHEEL - FRONT
- WHEEL - REAR
