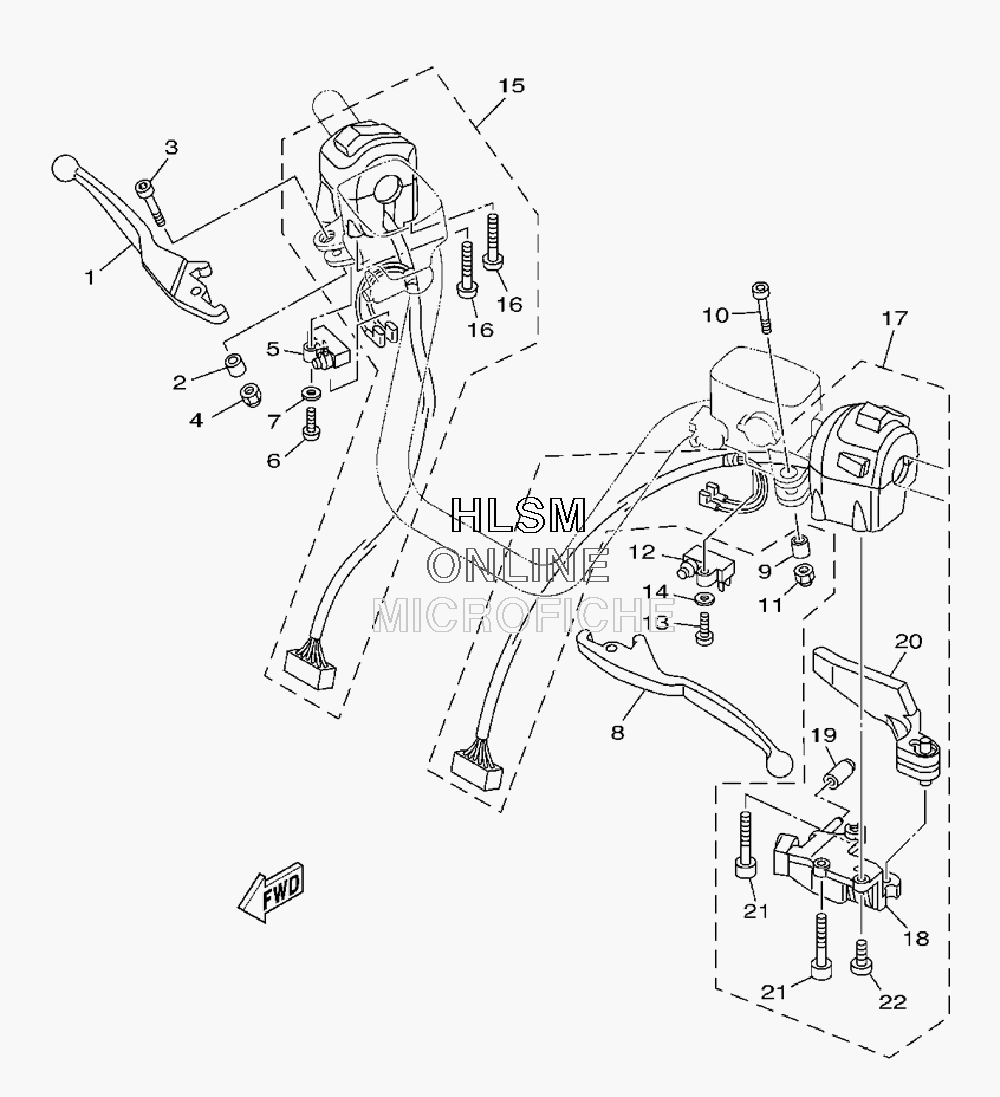

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha MAJESTY - 2009 года выпуска`
-
№АртикулНазвание
-
15GJ-83922-00-00 LEVER 2LEVER 2
-
236Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
390110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
495607-06100-00 NUT, UNUT, U
-
536Y-82917-00-00 SWITCHSWITCH
-
698507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792907-04600-00 WASHERWASHER
-
85GJ-83912-00-00 LEVER 1LEVER 1
-
936Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1090110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1195607-06100-00 NUT, UNUT, U
-
1236Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492907-04600-00 WASHERWASHER
-
155RU-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1698507-05050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
175RU-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
185RB-26396-01-00 HOLDER, ADJUSTINGHOLDER, ADJUSTING
-
195RB-13569-00-00 PLUG, BLINDPLUG, BLIND
-
205VU-83930-00-00 LEVER LOCK ASSYLEVER LOCK ASSY
-
2191317-05055-00 BOLTBOLT
-
2298507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
