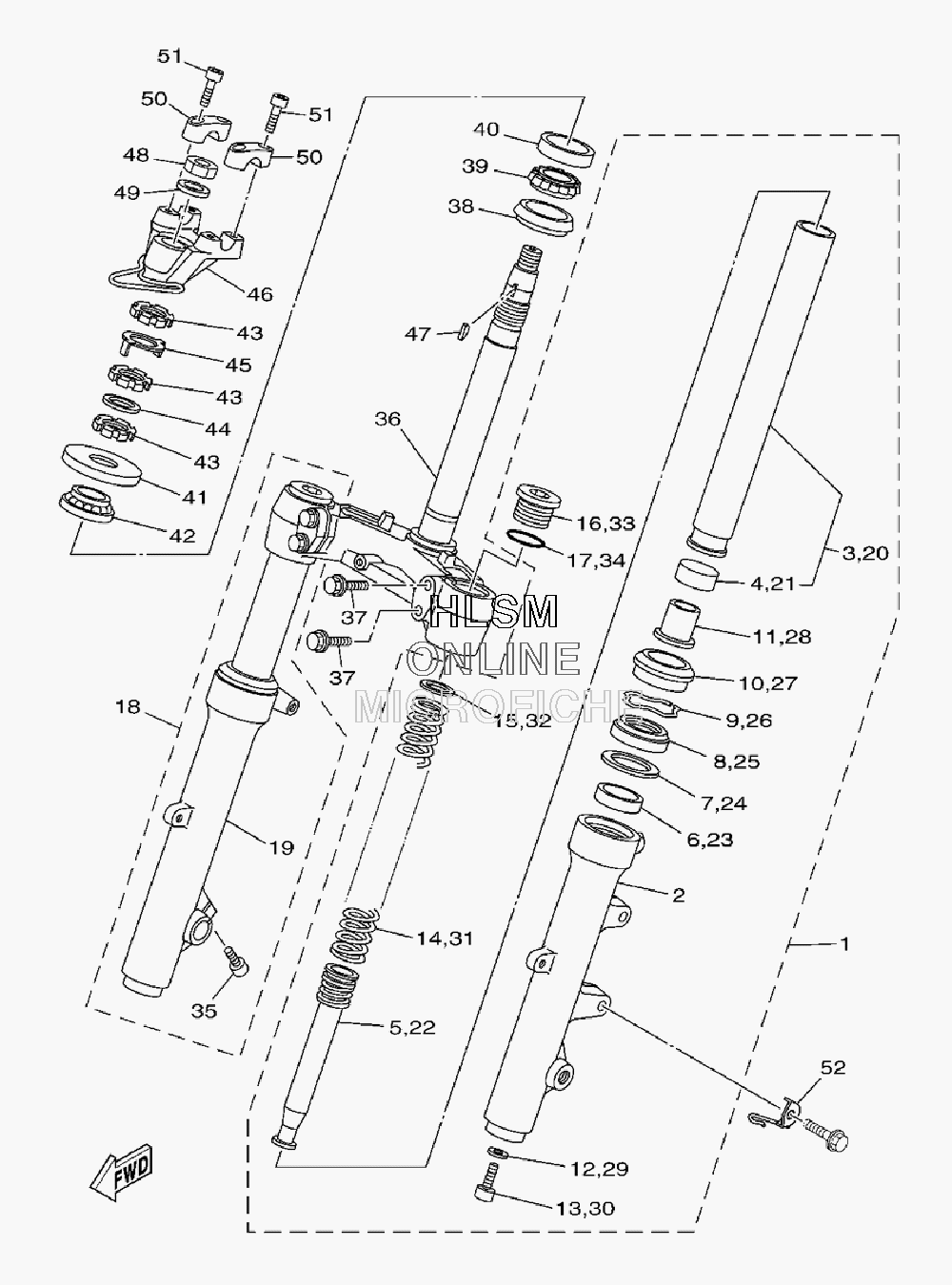

SUSPENSION - FRONT FORK для Yamaha MAJESTY - 2009 года выпуска`
-
№АртикулНазвание
-
15RU-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25RU-23126-00-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
35RU-23110-00-00 INNER TUBE COMP.INNER TUBE COMP.
-
44YR-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
55RU-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
64FM-23125-40-00 METAL, SLIDE 1METAL, SLIDE 1
-
736Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
84EB-23145-01-00 OIL SEALOIL SEAL
-
926H-23156-00-00 RING, SNAPRING, SNAP
-
104EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
114YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
12509-23158-L0-00 GASKETGASKET
-
13278-23181-50-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
145RU-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
153EN-23149-50-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
165RU-23111-00-00 BOLT, CAPBOLT, CAP
-
1743F-23188-10-00 O-RINGO-RING
-
185RU-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
195RU-23136-00-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
205RU-23110-00-00 INNER TUBE COMP.INNER TUBE COMP.
-
214YR-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
225RU-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
234FM-23125-40-00 METAL, SLIDE 1METAL, SLIDE 1
-
2436Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
254EB-23145-01-00 OIL SEALOIL SEAL
-
2626H-23156-00-00 RING, SNAPRING, SNAP
-
274EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
284YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
29509-23158-L0-00 GASKETGASKET
-
30278-23181-50-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
315RU-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
323EN-23149-50-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
335RU-23111-00-00 BOLT, CAPBOLT, CAP
-
3443F-23188-10-00 O-RINGO-RING
-
3591317-08025-00 BOLTBOLT
-
365RU-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
375RU-23436-00-00 BOLTBOLT
-
385RU-23462-00-00 SEAL, DUSTSEAL, DUST
-
3993332-00086-00 BEARINGBEARING
-
405GJ-17554-00-00 RETAINER, BEARINGRETAINER, BEARING
-
415RU-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
4293399-99932-00 BEARING, SPECIALBEARING, SPECIAL
-
4390179-30004-00 NUTNUT
-
4490202-30235-00 WASHER, PLATEWASHER, PLATE
-
455VY-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
465RU-23442-10-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
4790280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
4890170-20009-00 NUTNUT
-
4990201-206R3-00 WASHER, PLATEWASHER, PLATE
-
504H7-23441-10-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
5191312-08030-00 BOLTBOLT
-
524YR-23317-00-00 HOLDER, CABLEHOLDER, CABLE
