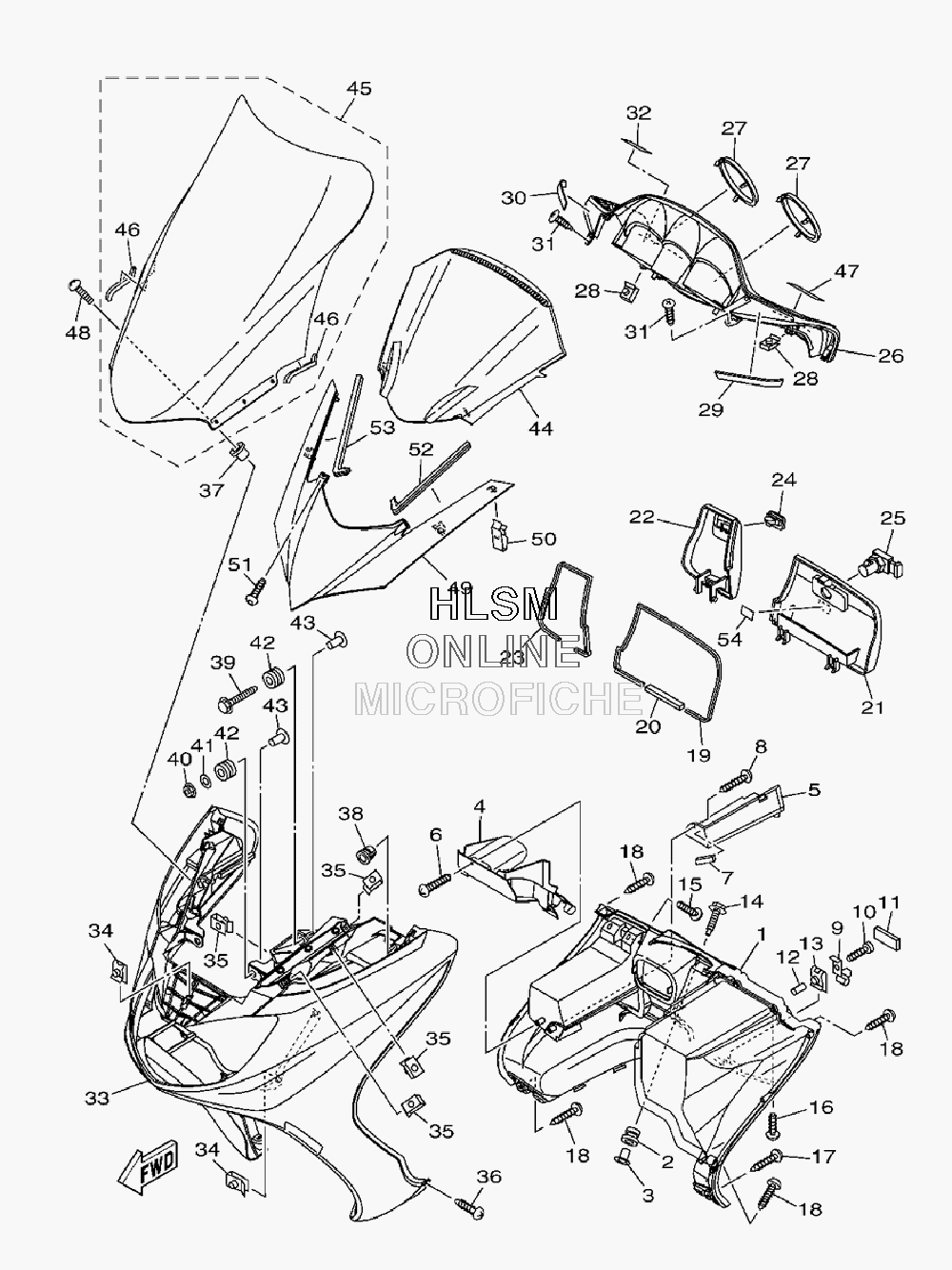

COWLING W/ LEG SHIELD для Yamaha MAJESTY - 2009 года выпуска`
-
№АртикулНазвание
-
15RU-28300-10-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
290480-13398-00 GROMMETGROMMET
-
390387-06160-00 COLLARCOLLAR
-
45RU-2835U-00-00 PANEL 1PANEL 1
-
55RU-2831X-00-00 LID 2LID 2
-
697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
75RU-2834F-00-00 DAMPERDAMPER
-
897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
94HC-21796-10-00 HINGEHINGE
-
1097702-40512-00 SCREW, TAPPINGSCREW, TAPPING
-
115RU-28307-00-00 SEALSEAL
-
1290445-057G5-00 HOSE (L10)HOSE (L10)
-
1390183-04027-00 NUT, SPRINGNUT, SPRING
-
1490119-06232-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1690167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
1797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
195RU-28371-00-00 DAMPERDAMPER
-
205RU-2837J-00-00 DAMPER 5DAMPER 5
-
215RU-2839K-00-00 LID 1LID 1
-
225RU-28313-00-00 LIDLID
-
235RU-28372-00-00 DAMPERDAMPER
-
245GM-2837G-00-00 LOCK 1LOCK 1
-
254BH-21780-11-00 LOCK ASSYLOCK ASSY
-
265RU-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
275RU-2839R-00-00 PANEL, ACCESSORYPANEL, ACCESSORY
-
2890183-05042-00 NUT, SPRINGNUT, SPRING
-
295RU-28428-00-00 SEAL 1SEAL 1
-
305RU-28429-00-00 SEAL 2SEAL 2
-
3197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
325GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
335RU-28351-00-PE BODY, COWLING FOR DNMABODY, COWLING FOR DNMA
-
3490183-06069-00 NUT, SPRINGNUT, SPRING
-
3590183-05042-00 NUT, SPRINGNUT, SPRING
-
3697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
3790179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
3890480-11004-00 GROMMETGROMMET
-
3990119-06162-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4095704-06500-00 NUT, FLANGENUT, FLANGE
-
4190201-06088-00 WASHER, PLATEWASHER, PLATE
-
4290480-14023-00 GROMMETGROMMET
-
4390387-06158-00 COLLARCOLLAR
-
445RU-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
455RU-28381-01-00 WINDSHIELDWINDSHIELD
-
465RU-2834E-10-00 DAMPER 3DAMPER 3
-
478ET-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
4890150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
495RU-28345-00-PE MOLE 1 FOR DNMAMOLE 1 FOR DNMA
-
505GM-28379-00-00 HOOKHOOK
-
5190167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
525RU-28347-00-00 MOLE 3MOLE 3
-
535RU-28348-00-00 MOLE 4MOLE 4
-
545RU-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
