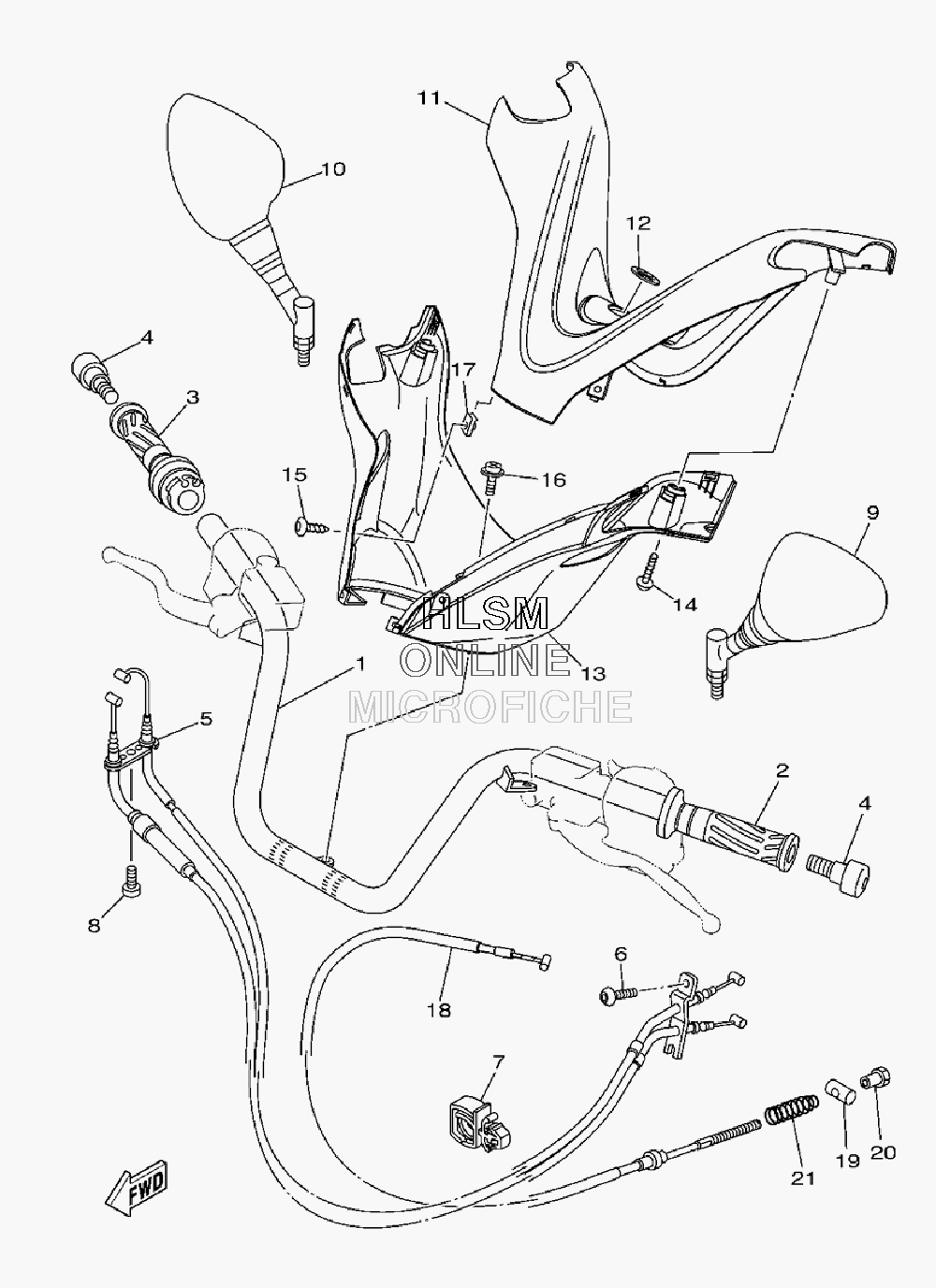

HANDLEBAR W/ CABLES - MIRRORS для Yamaha MAJESTY - 2009 года выпуска`
-
№АртикулНазвание
-
15RU-26110-00-00 HANDLE COMP.HANDLE COMP.
-
24YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
34YR-26240-02-00 GRIP ASSYGRIP ASSY
-
45RU-26246-00-00 END, GRIPEND, GRIP
-
55RU-26301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
692012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790464-20237-00 CLAMPCLAMP
-
898502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
95CG-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
105CG-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
115RU-26143-00-00 COVER, HANDLEBAR UPPER 1COVER, HANDLEBAR UPPER 1
-
125LV-2836B-01-00 TUNING FORK MARKTUNING FORK MARK
-
135RU-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
1490167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
1590167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
1690159-05032-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1790183-05042-00 NUT, SPRINGNUT, SPRING
-
185RU-2835X-00-00 WIREWIRE
-
1990249-12004-00 PINPIN
-
2090179-06018-00 NUTNUT
-
215VU-25333-00-00 SPRING, RETURNSPRING, RETURN
