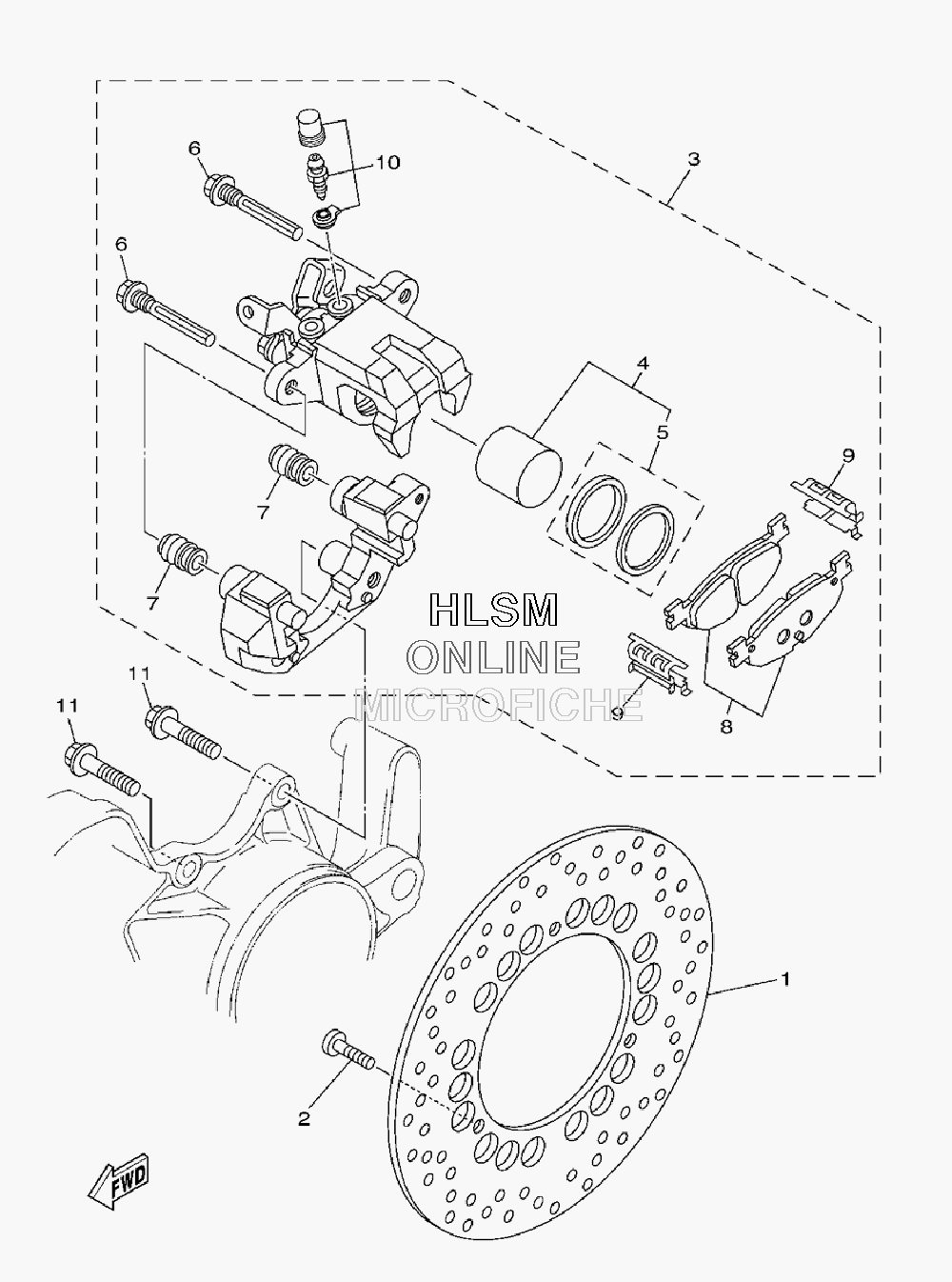

BRAKE - REAR CALIPER для Yamaha MAJESTY - 2009 года выпуска`
-
№АртикулНазвание
-
15RU-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
35RU-2580W-21-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
41B7-W0057-10-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
55GJ-W0047-01-00 CALIPER SEAL KITCALIPER SEAL KIT
-
65PW-25914-00-00 PIN, SLIDEPIN, SLIDE
-
74TT-25937-00-00 BOOT 2BOOT 2
-
85RU-W0046-00-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
94TT-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
105RU-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
1190109-100G0-00 BOLTBOLT
