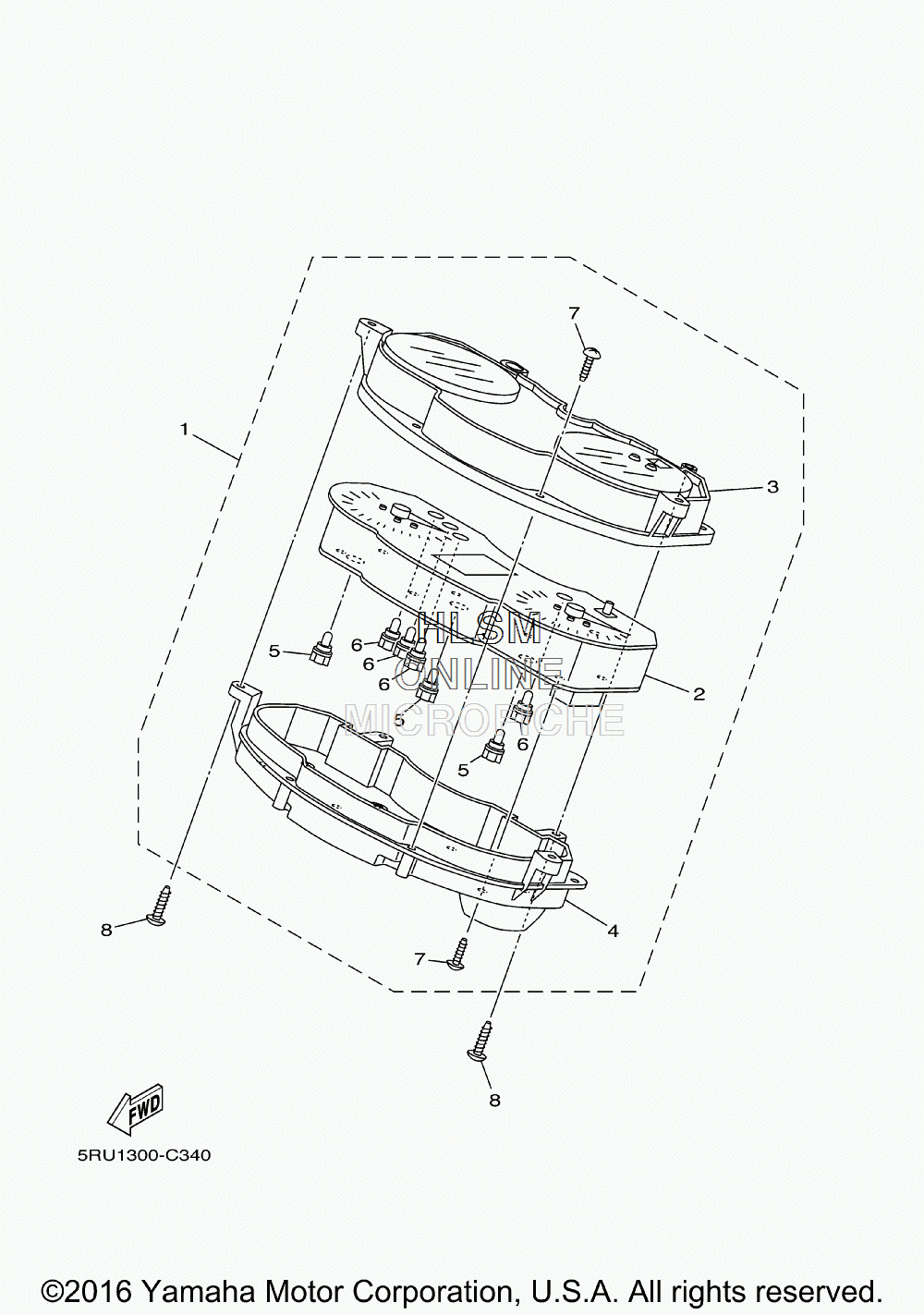

INSTRUMENT PANEL для Yamaha MAJESTY - 2008 года выпуска`
-
№АртикулНазвание
-
15RU-83500-10-00 METER ASSY (MPH)METER ASSY (MPH)
-
25RU-83510-10-00 ...SPEEDOMETER ASSY...SPEEDOMETER ASSY
-
35RU-83511-00-00 ...LENS...LENS
-
45RU-8353H-00-00 ...CASE...CASE
-
54YR-83517-10-00 ...BULB (12V-2W T5)...BULB (12V-2W T5)
-
64YR-83517-00-00 ...BULB (12V-1.4W T5)...BULB (12V-1.4W T5)
-
74AS-83616-10-00 ...SCREW, TAPPING...SCREW, TAPPING
-
897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
