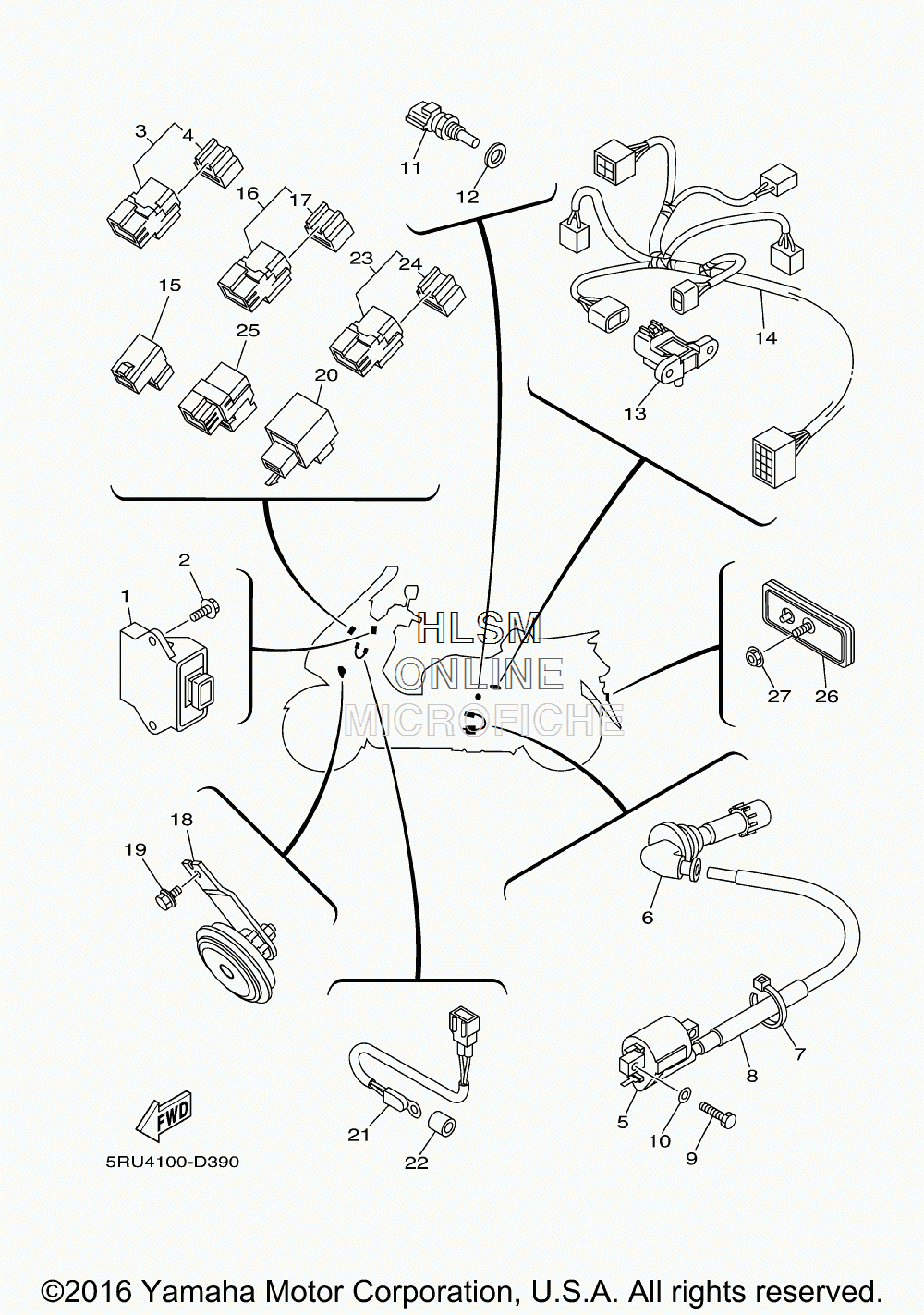

ELECTRICAL 2 для Yamaha MAJESTY - 2008 года выпуска`
-
№АртикулНазвание
-
15RU-8591A-31-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
35EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
45EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
55RU-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
65RU-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
790465-10098-00 CLAMPCLAMP
-
85RU-82353-00-00 HOSEHOSE
-
997002-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1092902-06600-00 WASHER, PLATEWASHER, PLATE
-
115PS-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1290430-12202-00 GASKETGASKET
-
135PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
145RU-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
153GD-81950-01-00 RELAY ASSY (3GD-01)RELAY ASSY (3GD-01)
-
165EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
175EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
185RU-83371-02-00 HORNHORN
-
1995822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
203GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
215RU-85700-00-00 THERMISTOR ASSYTHERMISTOR ASSY
-
225SJ-83535-00-00 TUBETUBE
-
235EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
245EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
255DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
263Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2795602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
