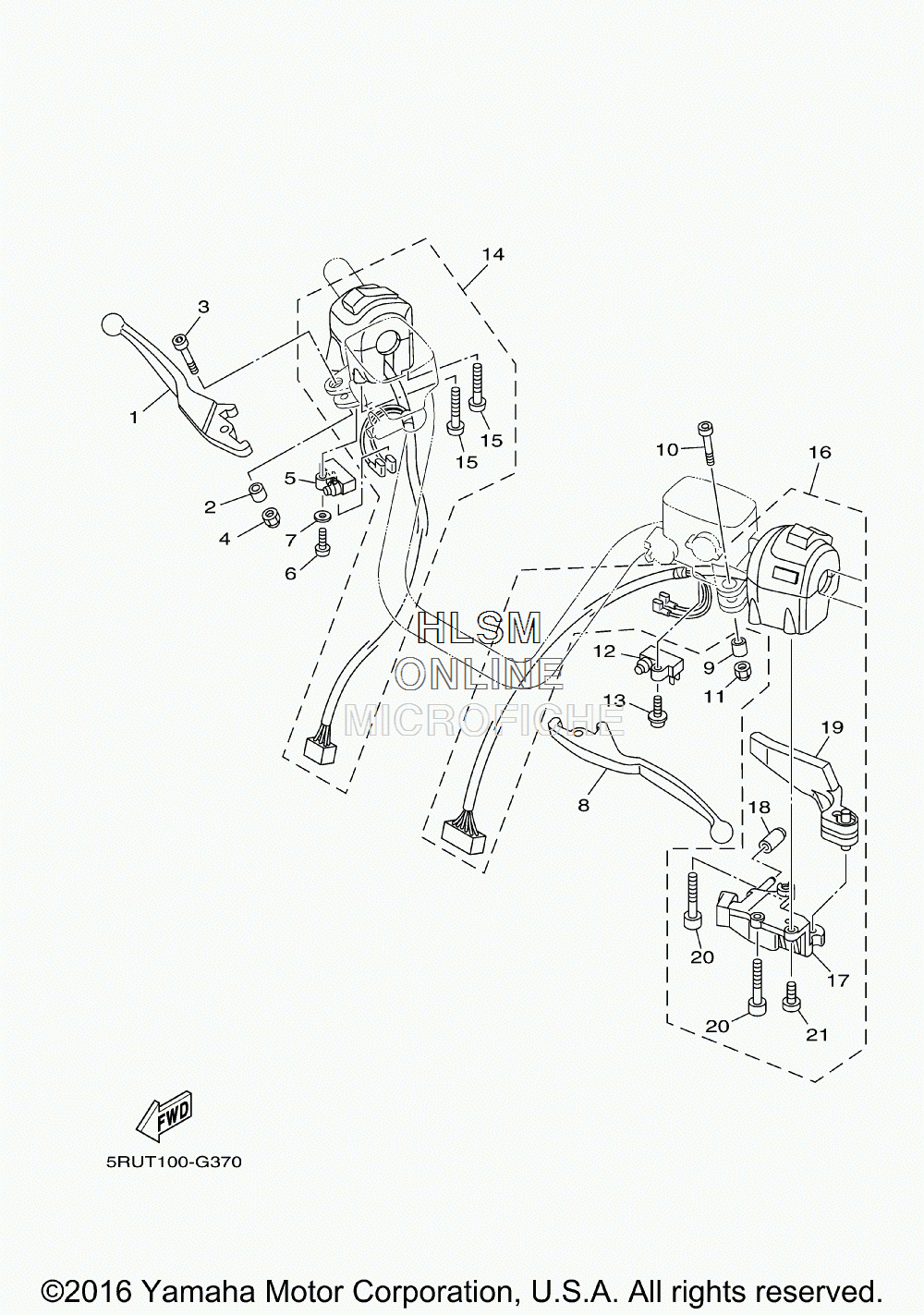

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha MAJESTY - 2008 года выпуска`
-
№АртикулНазвание
-
15GJ-83922-00-00 LEVER 2LEVER 2
-
236Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
390110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
495607-06100-00 NUT, UNUT, U
-
536Y-82917-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
698507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792907-04600-00 WASHERWASHER
-
85GJ-83912-00-00 LEVER 1LEVER 1
-
936Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1090110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1195607-06100-00 NUT, UNUT, U
-
1236Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1397607-04216-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
145RU-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1598507-05050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
165RU-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
175RB-26396-01-00 ...HOLDER, ADJUSTING...HOLDER, ADJUSTING
-
185RB-13569-00-00 ...PLUG, BLIND...PLUG, BLIND
-
195VU-83930-00-00 ...LEVER LOCK ASSY...LEVER LOCK ASSY
-
2091317-05055-00 ...BOLT...BOLT
-
2198507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
