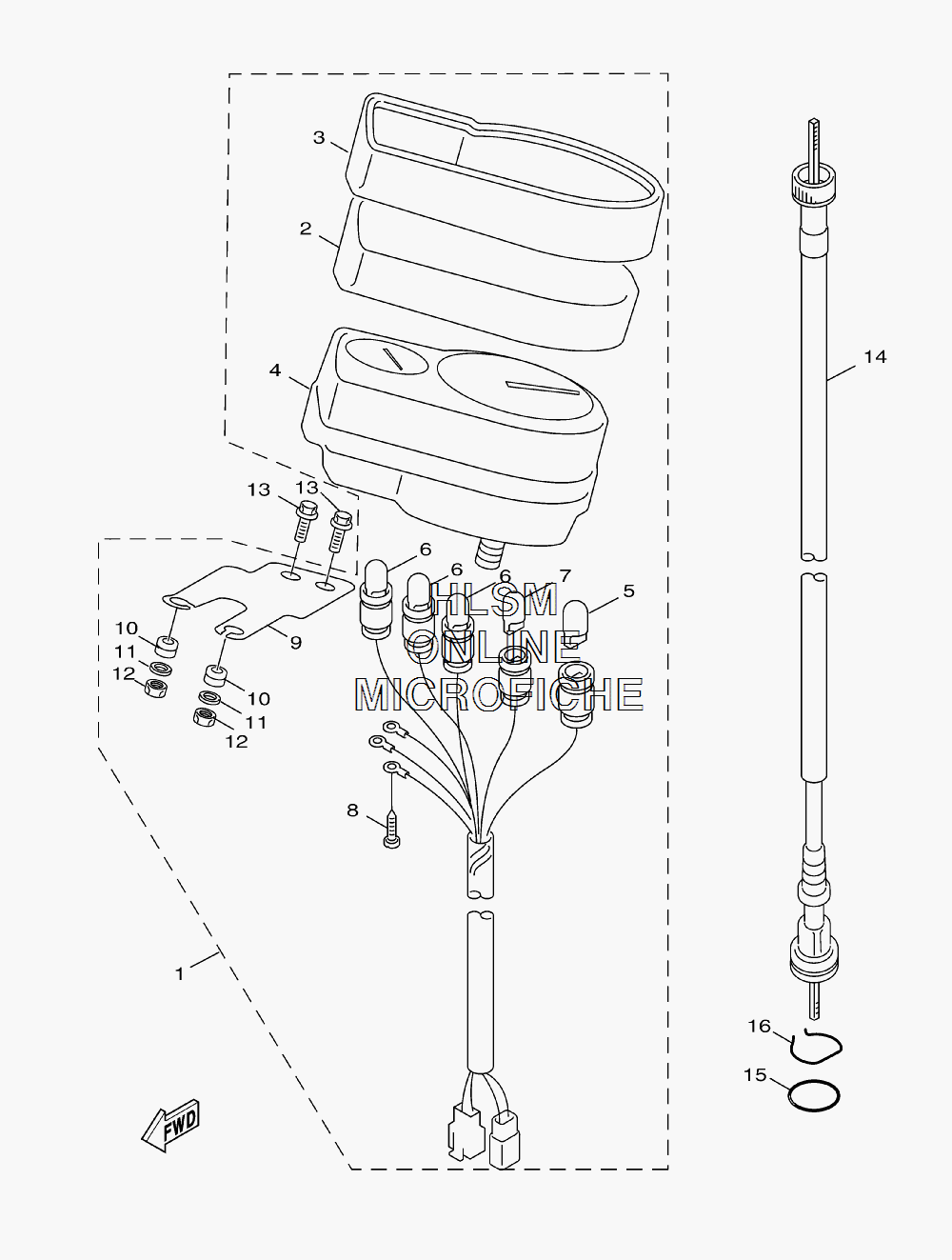

INSTRUMENT PANEL для Yamaha C3 - 2008 года выпуска`
-
№АртикулНазвание
-
13B3-H3500-10-00 METER ASSYMETER ASSY
-
23B3-H353K-00-00 ...GLASS PLATE...GLASS PLATE
-
33B3-H353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
43B3-H3507-00-00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
53GF-H3517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
65JS-H3517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
74CW-H3517-00-00 ...BULB (14V-3W)...BULB (14V-3W)
-
83B3-H3616-00-00 ...SCREW, TAPPING...SCREW, TAPPING
-
93B3-H3519-00-00 ...BRACKET, METER...BRACKET, METER
-
105ST-H3513-00-00 ...DAMPER...DAMPER
-
115ST-H3663-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
125ST-H354P-00-00 ...NUT...NUT
-
1395027-06012-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
143B3-H3550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
1593210-14805-00 O-RINGO-RING
-
164X6-F5137-00-00 RING, STOPRING, STOP
