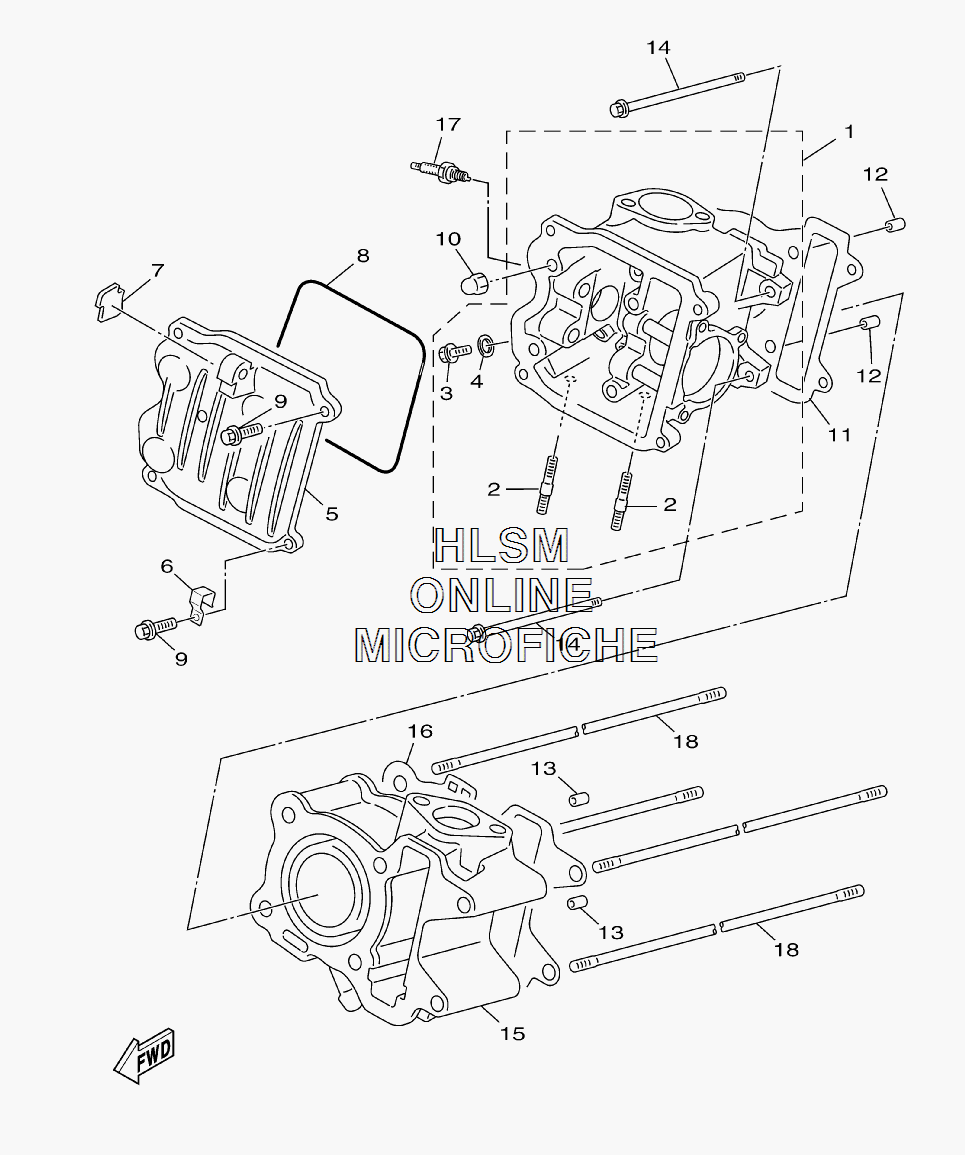

CYLINDER W/ HEAD ASSY. для Yamaha C3 - 2008 года выпуска`
-
№АртикулНазвание
-
13B3-E1102-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
290116-08808-00 ...BOLT, STUD...BOLT, STUD
-
390153-06804-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
490430-06014-00 ...GASKET...GASKET
-
53B3-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
690462-08809-00 CLAMPCLAMP
-
73B3-E131M-00-00 COVERCOVER
-
893211-18800-00 O-RINGO-RING
-
995027-06020-00 BOLT, FLANGE (6U1)BOLT, FLANGE (6U1)
-
1090176-06806-00 NUT, CROWNNUT, CROWN
-
115ST-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1291810-14807-00 PIN, DOWELPIN, DOWEL
-
1391810-14807-00 PIN, DOWELPIN, DOWEL
-
1495027-06080-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
153B3-E1311-00-00 CYLINDER 1CYLINDER 1
-
165ST-E1351-10-00 GASKET, CYLINDERGASKET, CYLINDER
-
17NGK-CR7E0-00-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
183B3-E1391-00-00 BOLT, STUD 1BOLT, STUD 1
