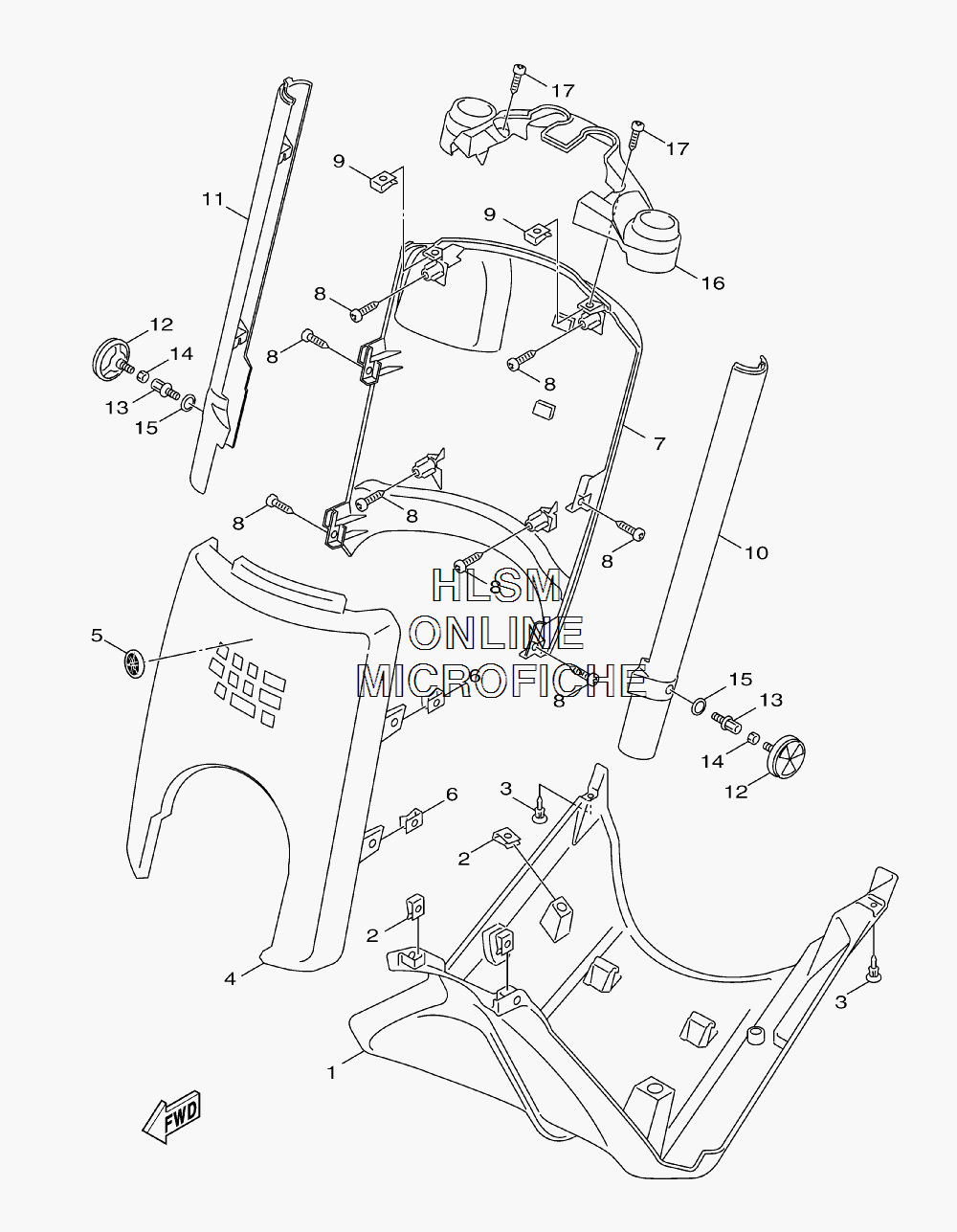

COWLING W/ LEG SHIELD для Yamaha C3 - 2008 года выпуска
-
№АртикулНазвание
-
13B3-F8385-00-00 COVER, LOWERCOVER, LOWER
-
290183-05807-00 NUT, SPRINGNUT, SPRING
-
390269-07802-00 RIVETRIVET
-
43B3-F3391-00-P5 PANEL, FRONT (DPBMC)PANEL, FRONT (DPBMC)
-
43B3-F3391-00-PC PANEL, FRONT (VRM5)PANEL, FRONT (VRM5)
-
43B3-F3391-00-P0 PANEL, FRONT (GWM1)PANEL, FRONT (GWM1)
-
55ST-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
690183-05807-00 NUT, SPRINGNUT, SPRING
-
73B3-F3397-00-P5 PANEL, FRONT 2 (DPBMC)PANEL, FRONT 2 (DPBMC)
-
73B3-F3397-00-PC PANEL, FRONT 2 (VRM5)PANEL, FRONT 2 (VRM5)
-
73B3-F3397-00-P0 PANEL, FRONT 2 (GWM1)PANEL, FRONT 2 (GWM1)
-
897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
990183-05807-00 NUT, SPRINGNUT, SPRING
-
103B3-F331F-10-00 COVER, OUTER TUBECOVER, OUTER TUBE
-
113B3-F3132-10-00 COVER, OUTER 2COVER, OUTER 2
-
122EK-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
1390109-06842-00 BOLTBOLT
-
1490170-05802-00 NUTNUT
-
1590201-06855-00 WASHER, PLATEWASHER, PLATE
-
163B3-F6143-00-P0 COVER, HANDLEBAR UPPER 1COVER, HANDLEBAR UPPER 1
-
1797707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
