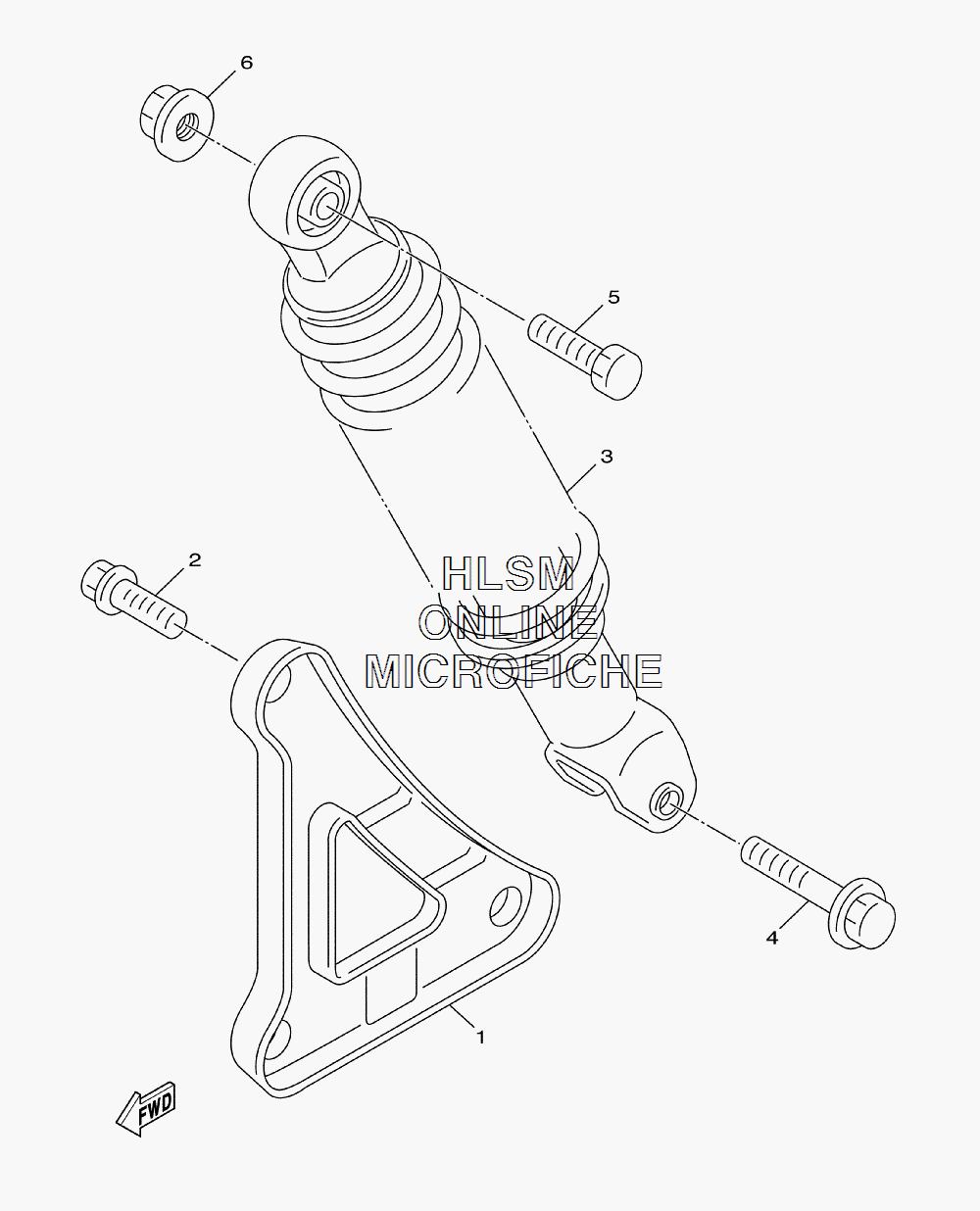

SUSPENSION - REAR ARM W/ SHOCK для Yamaha VINO 125 - 2007 года выпуска`
-
№АртикулНазвание
-
15NN-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
295817-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
35YR-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
490105-08121-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
590101-10875-00 BOLTBOLT
-
695707-10500-00 NUT, FLANGE (8AB)NUT, FLANGE (8AB)
