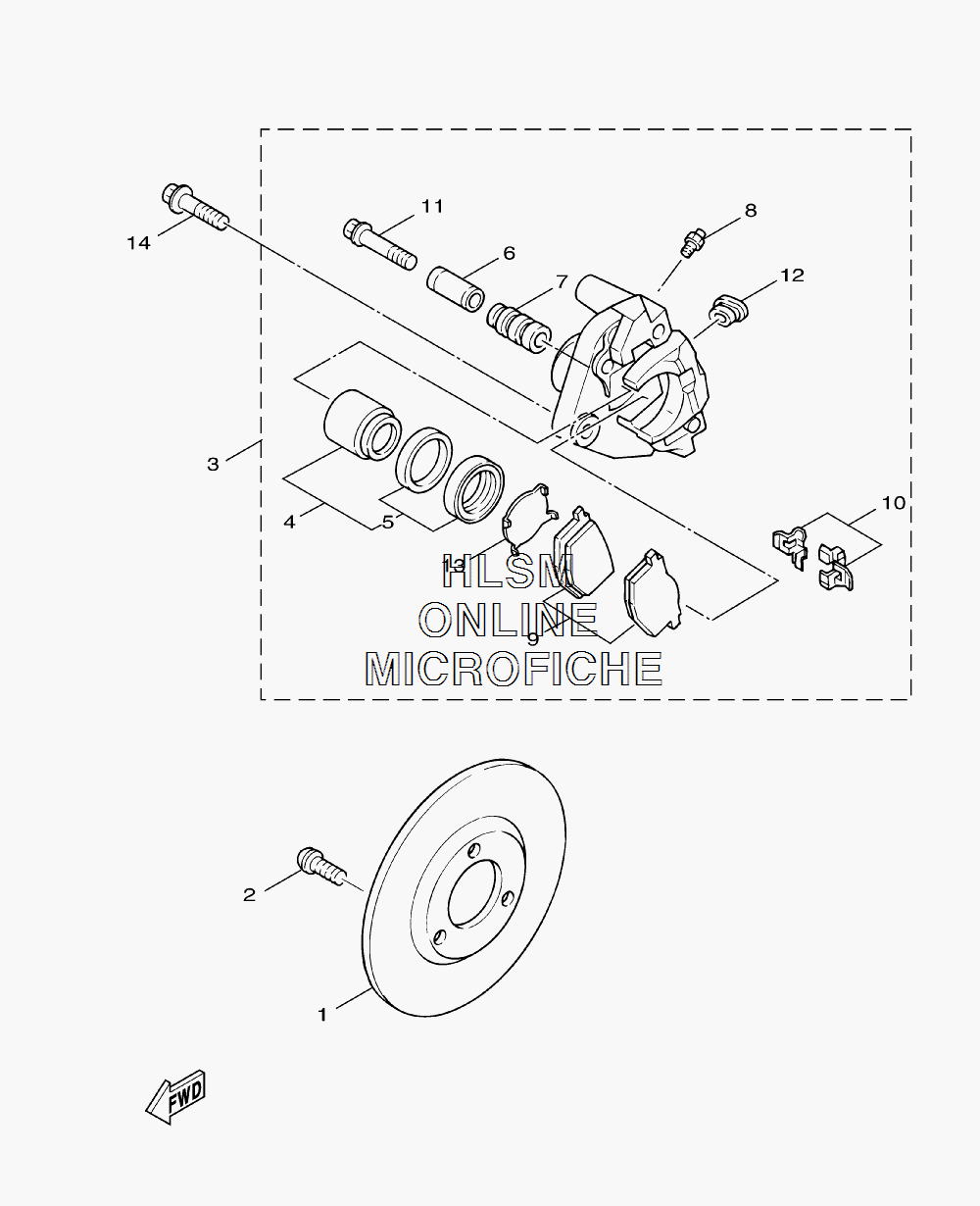

BRAKE - FRONT CALIPER для Yamaha VINO 125 - 2007 года выпуска`
-
№АртикулНазвание
-
13UH-F582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290149-08814-00 SCREWSCREW
-
33UH-F580U-12-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
43UH-W0057-01-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53UH-W0047-01-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
63UH-F5838-01-00 ...SLEEVE, CALIPER...SLEEVE, CALIPER
-
73UH-F5937-01-00 ...BOOT 2...BOOT 2
-
83XG-F5824-01-00 ...SCREW, BLEED...SCREW, BLEED
-
93UH-W0045-01-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
103UH-F5919-01-00 ...SUPPORT, PAD...SUPPORT, PAD
-
113UH-F5926-01-00 ...BOLT...BOLT
-
123UH-F5845-01-00 ...CAP, INDICATOR...CAP, INDICATOR
-
133UH-F5827-01-00 ...SHIM, CALIPER...SHIM, CALIPER
-
149502L-10030-00 BOLT, FLANGEBOLT, FLANGE
