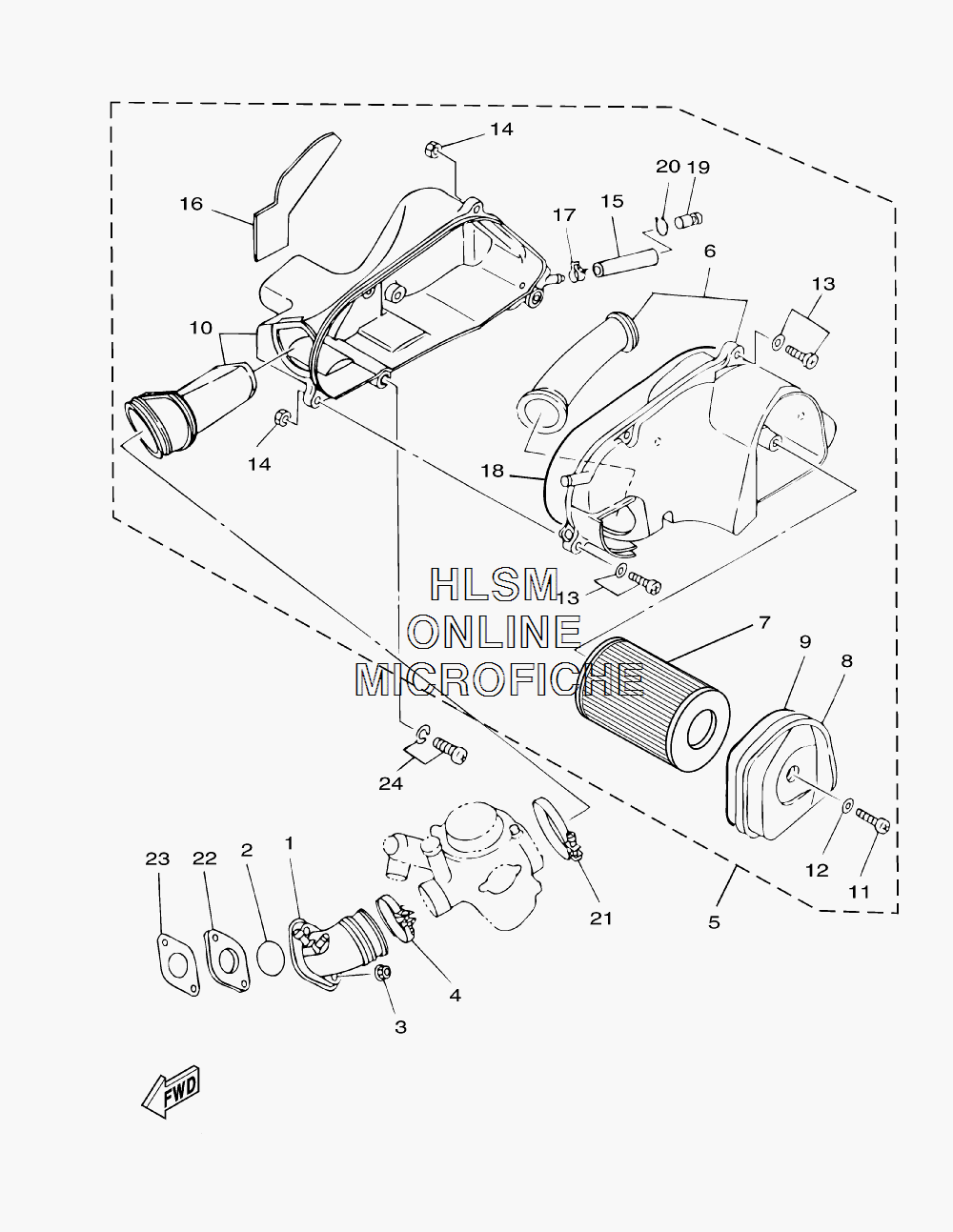

AIR CLEANER ASSY. W/ INTAKE для Yamaha VINO 125 - 2007 года выпуска`
-
№АртикулНазвание
-
14TE-E3585-00-00 MANIFOLDMANIFOLD
-
293210-30611-00 O-RINGO-RING
-
39570L-06500-00 NUT, FLANGENUT, FLANGE
-
45CA-E3575-00-00 BANDBAND
-
54TE-E4410-10-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
64TE-W1441-00-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
74TE-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
84TE-E4412-00-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
94TE-E4476-00-00 ...SEAL...SEAL
-
104CW-W1442-00-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
1198507-06030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1290201-064H0-00 ...WASHER, PLATE...WASHER, PLATE
-
1397607-06225-00 ...SCREW,WITH WASHER...SCREW,WITH WASHER
-
1495307-06600-00 ...NUT...NUT
-
1590446-13805-00 ...HOSE...HOSE
-
165NW-E4409-00-00 ...DAMPER...DAMPER
-
1790467-13813-00 ...CLIP...CLIP
-
184CW-E4452-00-00 ...SEAL...SEAL
-
1990338-11820-00 ...PLUG...PLUG
-
2090467-12052-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
2190460-56105-00 CLAMP, HOSECLAMP, HOSE
-
224CW-E3595-01-00 JOINTJOINT
-
234CW-E3556-01-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
2497607-06125-00 SCREW, WITH WASHERSCREW, WITH WASHER
