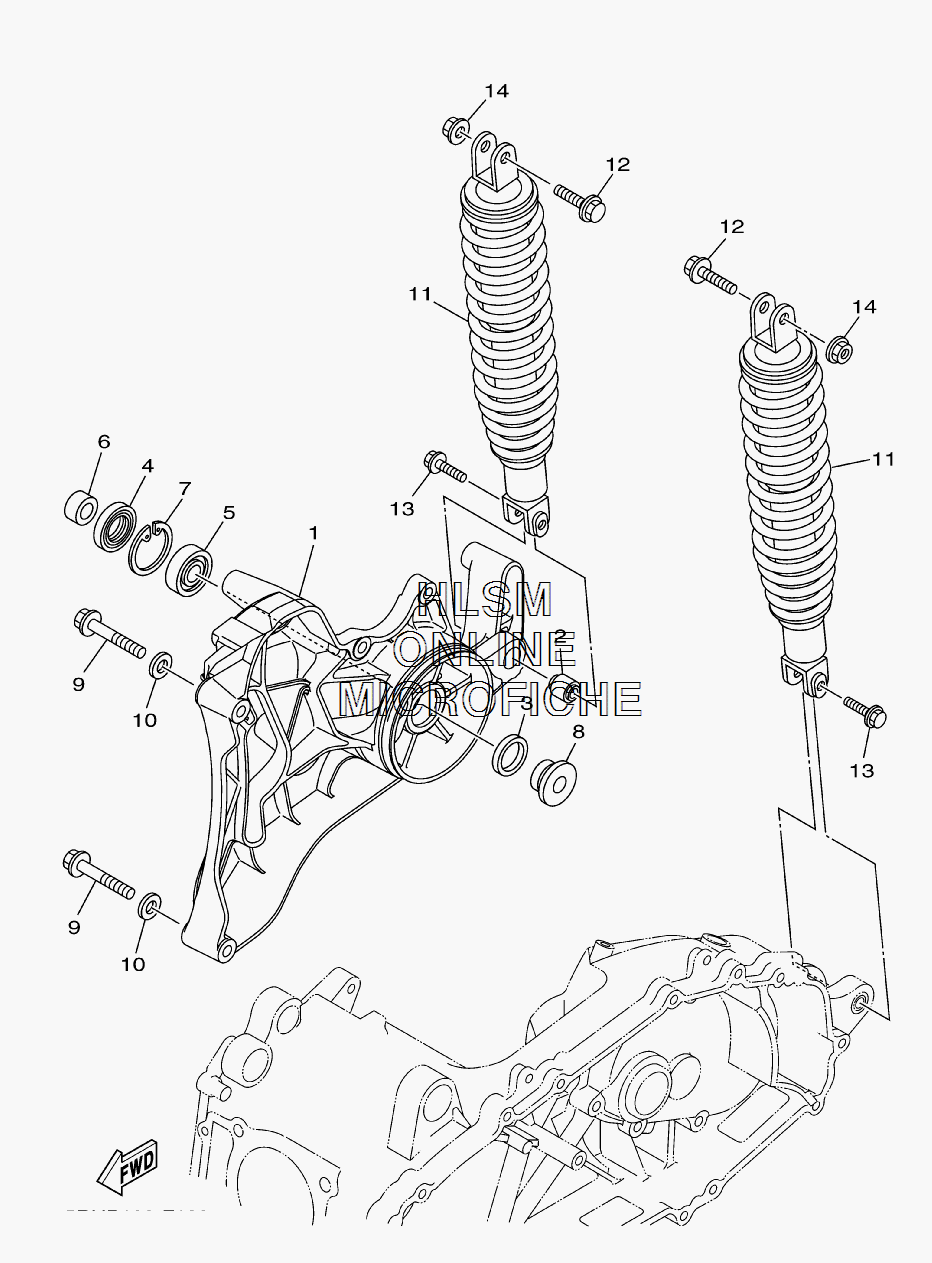

SUSPENSION - REAR ARM W/ SHOCK для Yamaha MAJESTY - 2007 года выпуска`
-
№АртикулНазвание
-
15RU-22171-01-00 ARM, REAR 1ARM, REAR 1
-
25RU-22216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
393109-28043-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
493106-26005-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
593306-30212-00 BEARINGBEARING
-
690387-15006-00 COLLARCOLLAR
-
799009-42500-00 CIRCLIPCIRCLIP
-
890387-15005-00 COLLARCOLLAR
-
995817-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-120K4-00 WASHER, PLATEWASHER, PLATE
-
115RU-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1295827-10040-00 BOLT, FLANGEBOLT, FLANGE
-
1395827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
