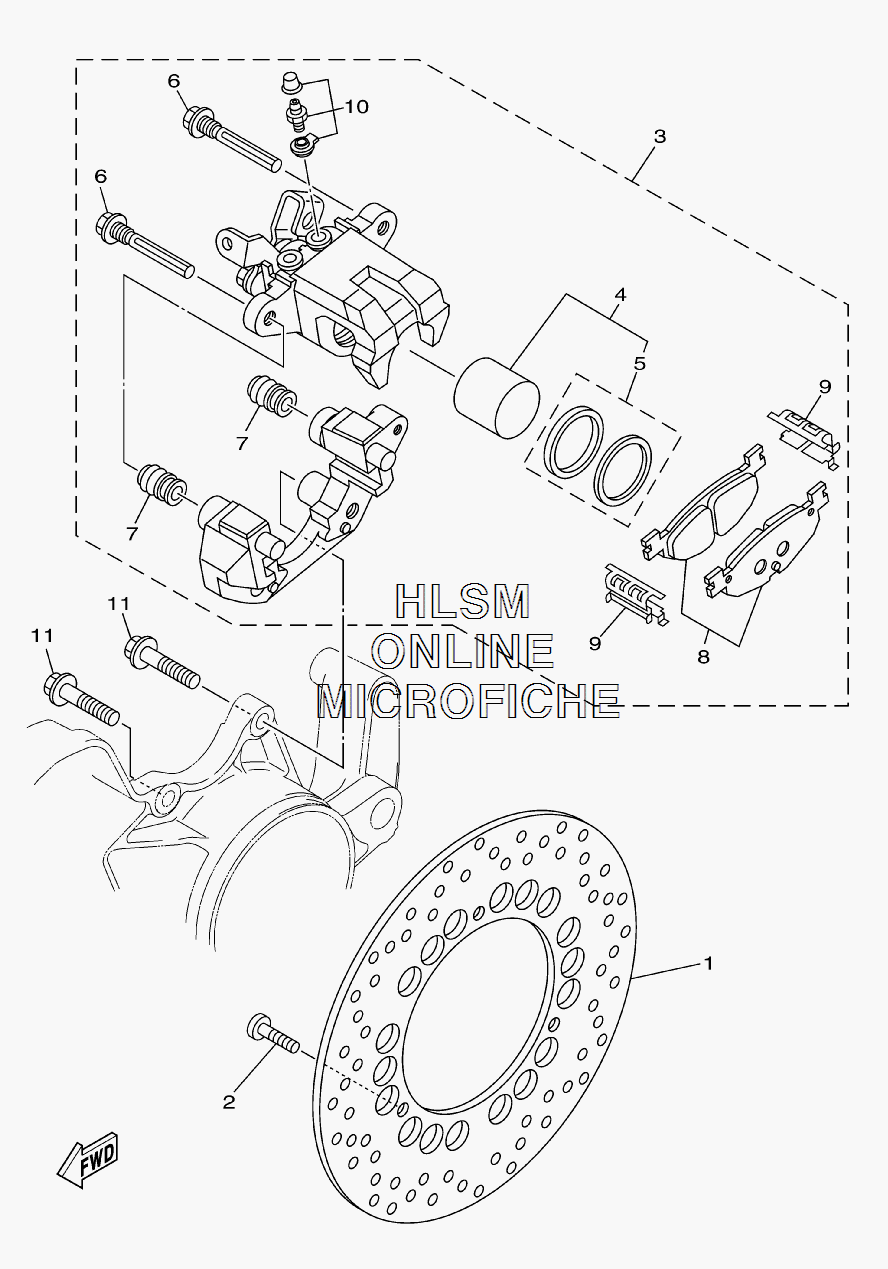

BRAKE - REAR CALIPER для Yamaha MAJESTY - 2007 года выпуска`
-
№АртикулНазвание
-
15RU-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLT, HEX. SOCKET BUTBOLT, HEX. SOCKET BUT
-
35RU-2580W-01-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
45VU-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55GJ-W0047-01-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
65PW-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85VU-W0046-01-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
94TT-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
105GM-W0048-01-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1190109-100G0-00 BOLTBOLT
