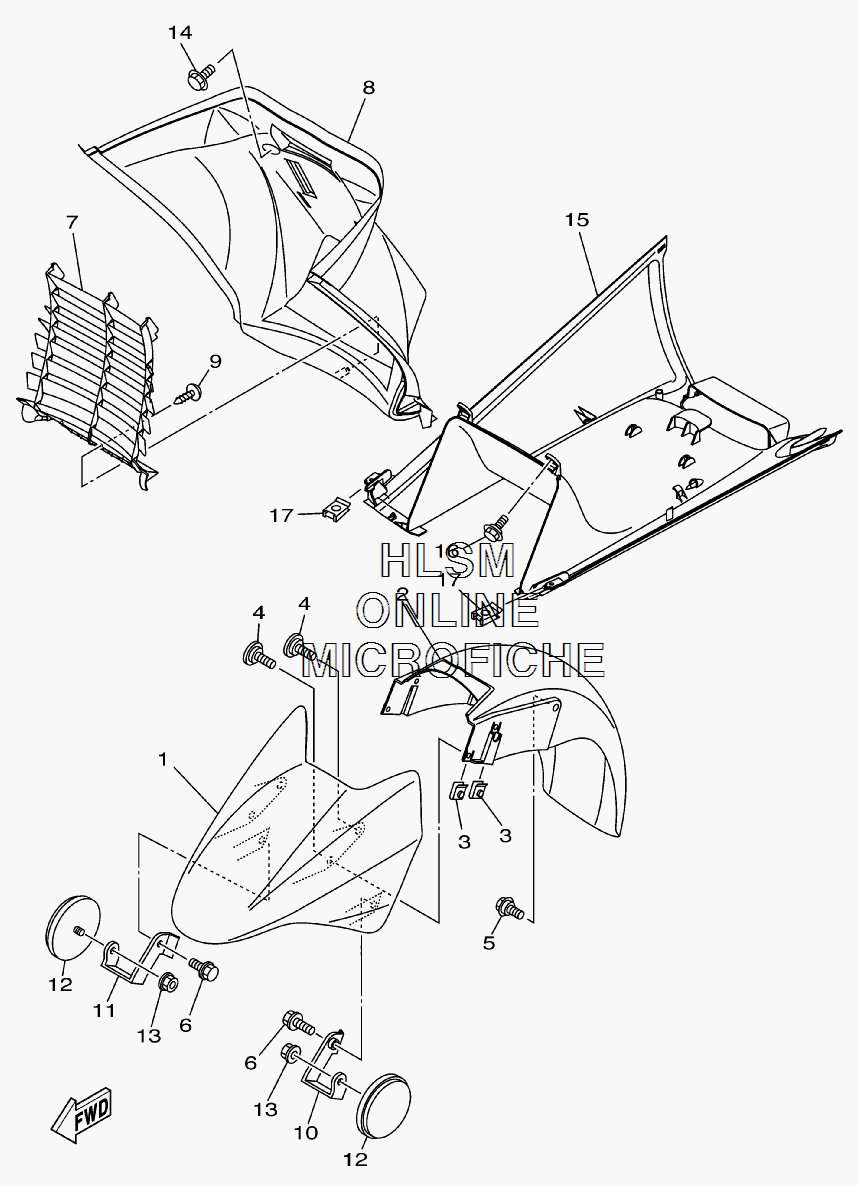

FENDER - FRONT / REAR для Yamaha MAJESTY - 2007 года выпуска`
-
№АртикулНазвание
-
15RU-21511-00-P0 FENDER, FRONT FOR S3FENDER, FRONT FOR S3
-
15RU-21511-00-P9 FENDER, FRONT FOR DPBMCFENDER, FRONT FOR DPBMC
-
25RU-21556-00-00 FENDER, FRONT 2FENDER, FRONT 2
-
390183-06069-00 NUT, SPRINGNUT, SPRING
-
490149-06263-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
590109-060F3-00 BOLTBOLT
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
75RU-21521-00-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
85RU-21557-00-00 DUCT, AIRDUCT, AIR
-
997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
105RU-21523-00-00 PLATE 1PLATE 1
-
115RU-21524-00-00 PLATE 2PLATE 2
-
124AG-85111-00-00 REFLECTOR, 1REFLECTOR, 1
-
1395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
1490119-06044-00 BOLT WITH WASHERBOLT WITH WASHER
-
155RU-21553-00-00 FENDER, INNER 2FENDER, INNER 2
-
1690109-063F1-00 BOLTBOLT
-
1790183-05042-00 NUT, SPRINGNUT, SPRING
