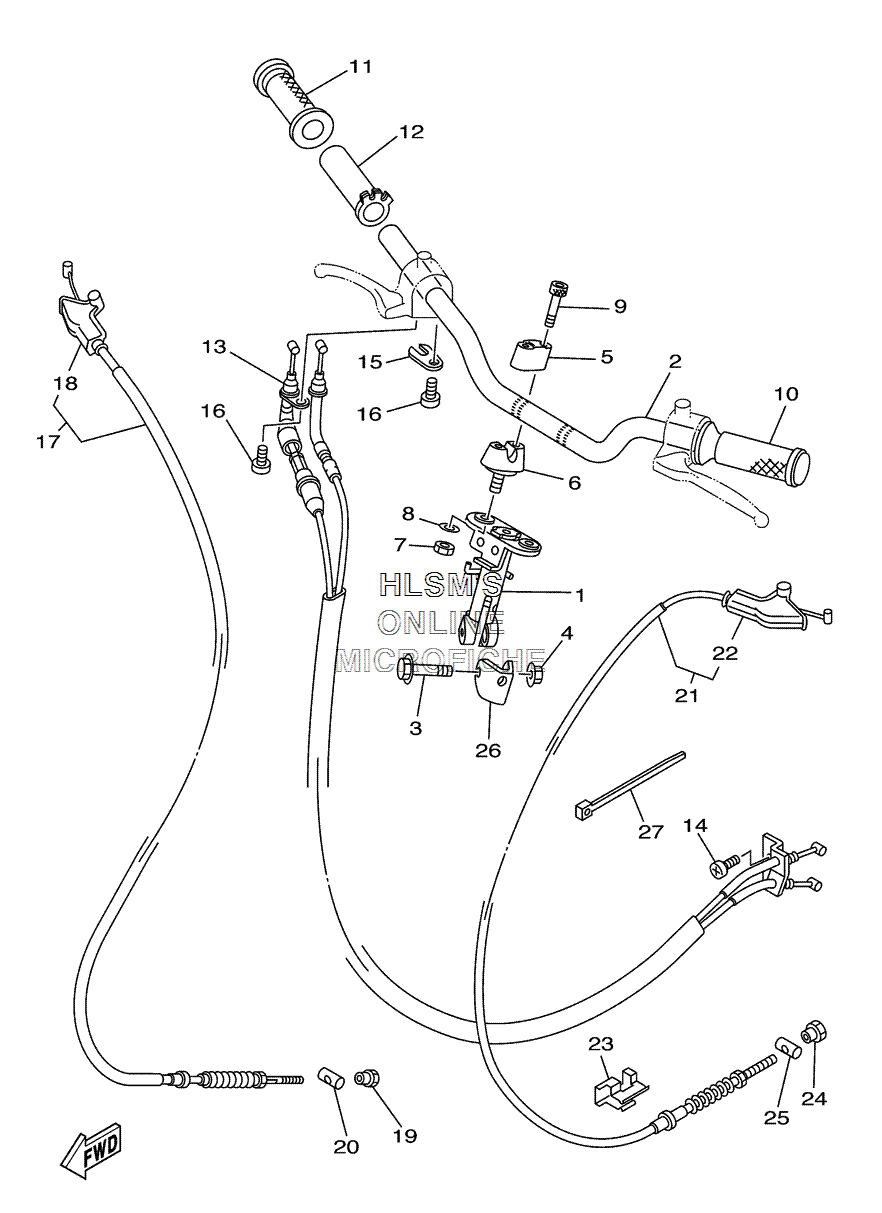

HANDLEBAR W/ CABLES для Yamaha VINO CLASSIC - 2004 года выпуска`
-
№АртикулНазвание
-
15AU-23461-00-00 BRACKET, HANDLEBRACKET, HANDLE
-
25LY-26112-00-00 BAR, HANDLEBAR, HANDLE
-
390105-10036-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490185-10154-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
55AU-23441-01-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
6122-23442-03-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
795307-10600-00 NUTNUT
-
892907-10600-00 WASHER, PLATEWASHER, PLATE
-
991380-06035-00 BOLTBOLT
-
105AU-26241-00-00 GRIP (FOR DRMD)GRIP (FOR DRMD)
-
105AU-26241-10-00 GRIP (FOR S3)GRIP (FOR S3)
-
115AU-26242-00-00 GRIP (RIGHT) (FOR DRMD)GRIP (RIGHT) (FOR DRMD)
-
115AU-26242-10-00 GRIP (RIGHT) (FOR S3)GRIP (RIGHT) (FOR S3)
-
124KN-26243-00-00 TUBE, THROTTLE GUIDETUBE, THROTTLE GUIDE
-
135LY-26301-01-00 THROTTLE CABLE ASSY.THROTTLE CABLE ASSY.
-
1498507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
15584-26393-02-00 HOLDERHOLDER
-
1698507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
175LY-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
183YJ-2637A-00-00 ...COVER, HANDLE LEVER 2...COVER, HANDLE LEVER 2
-
1990179-06411-00 NUTNUT
-
2090249-12008-00 PINPIN
-
215LY-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
223YJ-26372-00-00 ...COVER, HANDLE LEVER 1...COVER, HANDLE LEVER 1
-
233KJ-26393-01-00 HOLDERHOLDER
-
2490179-06411-00 NUTNUT
-
2590249-12008-00 PINPIN
-
265AU-26293-00-00 BANDBAND
-
2790465-13275-00 CLAMPCLAMP
