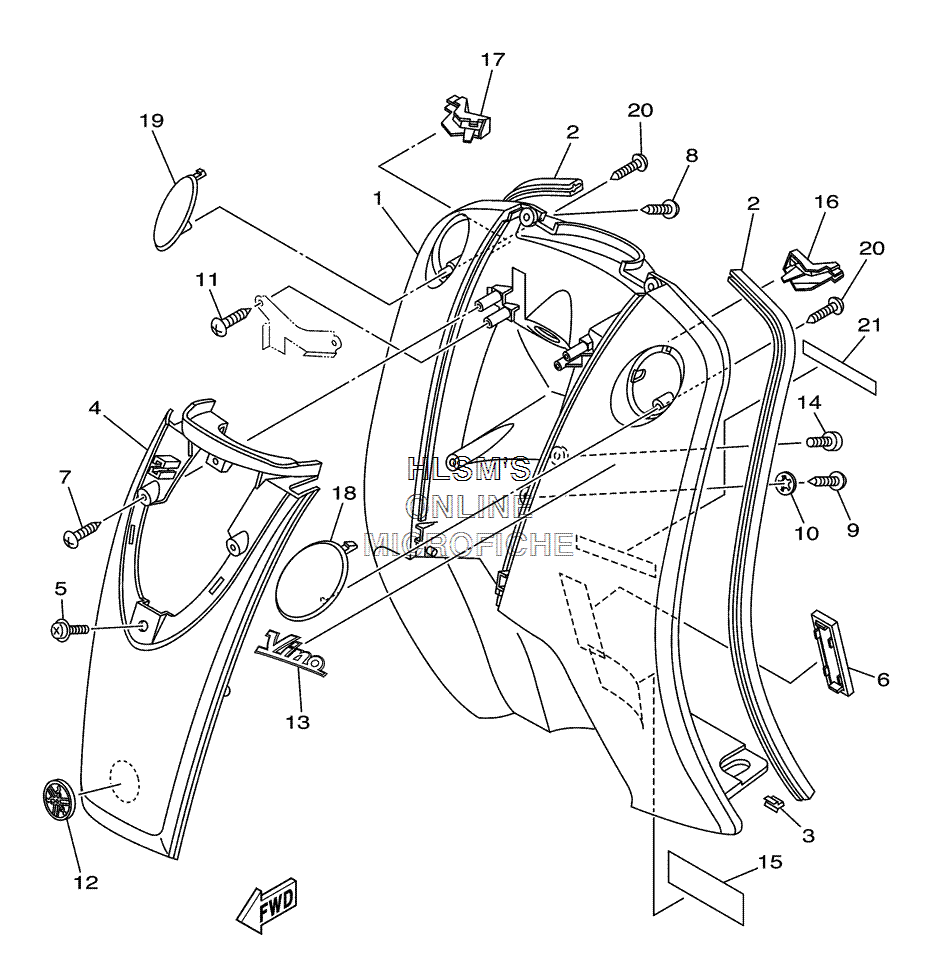

COWLING W/ LEG SHIELD для Yamaha VINO CLASSIC - 2004 года выпуска`
-
№АртикулНазвание
-
15AU-28311-01-P4 LEG SHIELD 1 (DRMD)LEG SHIELD 1 (DRMD)
-
15AU-28311-01-P7 LEG SHIELD 1 (S3)LEG SHIELD 1 (S3)
-
25AU-28345-01-00 MOLE 1MOLE 1
-
35AU-28457-00-00 CLIPCLIP
-
45LY-23391-00-P1 PANEL, FRONT (DRMD)PANEL, FRONT (DRMD)
-
45LY-23391-00-P6 PANEL, FRONT (S3)PANEL, FRONT (S3)
-
590159-06178-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
620H-28349-01-00 CAP (SFS FOR S3)CAP (SFS FOR S3)
-
614T-28349-F0-00 CAP (RPR FOR DRMD)CAP (RPR FOR DRMD)
-
797707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
997707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1090209-05347-00 WASHERWASHER
-
1197707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
125AU-2157B-00-00 EMBLEM (TUNING FORK MARK)EMBLEM (TUNING FORK MARK)
-
135AU-28328-60-00 EMBLEM (FOR S3)EMBLEM (FOR S3)
-
135AU-28328-70-00 EMBLEM (FOR DRMD)EMBLEM (FOR DRMD)
-
1498904-06012-00 SCREW, BINDSCREW, BIND
-
153SL-2118K-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
165AU-2842M-00-00 COVER 1COVER 1
-
175AU-2842N-00-00 COVER 2COVER 2
-
185LY-2842M-00-P1 COVER 1 (DRMD)COVER 1 (DRMD)
-
185LY-2842M-00-P7 COVER 1 (S3)COVER 1 (S3)
-
195LY-2842N-00-P1 COVER 2 (DRMD)COVER 2 (DRMD)
-
195LY-2842N-00-P7 COVER 2 (S3)COVER 2 (S3)
-
2097707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
215LY-2179X-10-00 PLATE, EPAPLATE, EPA
