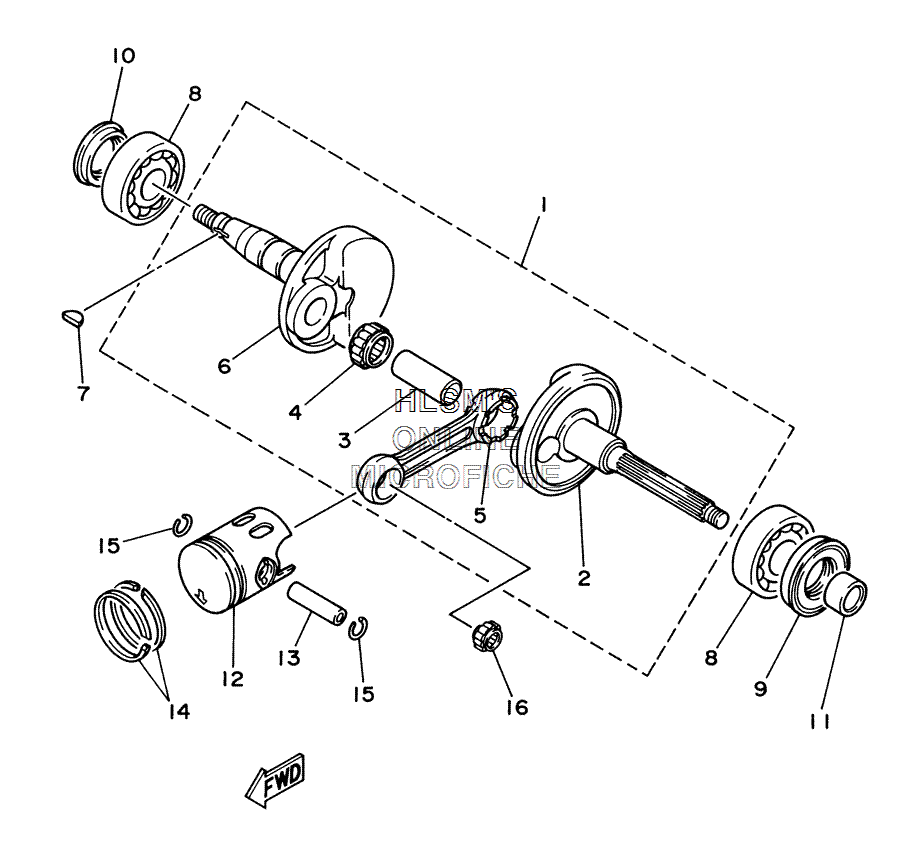

CRANKSHAFT W/ PISTON ASSY. для Yamaha VINO CLASSIC - 2004 года выпуска`
-
№АртикулНазвание
-
13KJ-11400-01-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
23KJ-11412-01-00 ...CRANK 1...CRANK 1
-
31YU-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
493310-416N7-00 ...BEARING...BEARING
-
52E9-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
63KJ-11422-01-00 ...CRANK 2...CRANK 2
-
790280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
893306-20458-00 BEARINGBEARING
-
993102-20425-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1093101-20138-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
1190387-156U0-00 COLLARCOLLAR
-
123YJ-11631-11-A0 PISTON (STD)PISTON (STD)
-
1327V-11633-00-00 PIN, PISTONPIN, PISTON
-
143YJ-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1593450-11120-00 CIRCLIP, INNERCIRCLIP, INNER
-
1693310-210M0-00 BEARING, PISTON PINBEARING, PISTON PIN
