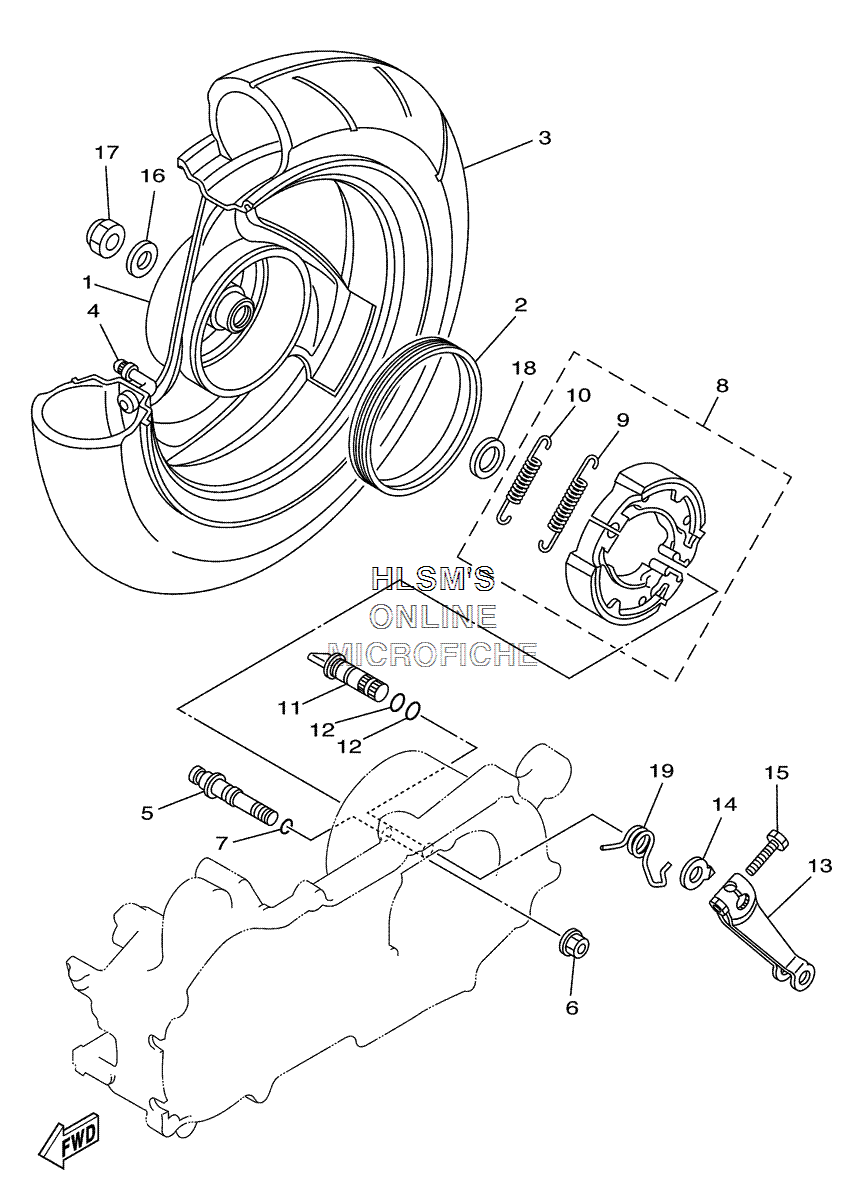

WHEEL - REAR для Yamaha VINO - 2003 года выпуска`
-
№АртикулНазвание
-
15KN-25390-00-35 REAR WHEEL COMP. (SILVER)REAR WHEEL COMP. (SILVER)
-
23KJ-25336-00-00 RING 2RING 2
-
394108-1004V-00 TIRE (80/90-10 34J MB38) (INQUE)TIRE (80/90-10 34J MB38) (INQUE)
-
394108-1002S-00 TIRE (80/90-10 34J C922) (CHENG SHIN)TIRE (80/90-10 34J C922) (CHENG SHIN)
-
493900-00041-00 VALVE, RIMVALVE, RIM
-
53KJ-25326-00-00 PIN, PIVOTPIN, PIVOT
-
695707-08500-00 NUT, FLANGENUT, FLANGE
-
793210-07540-00 O-RINGO-RING
-
85GD-W253E-11-00 BRAKE SHOE KITBRAKE SHOE KIT
-
990506-12001-00 ...SPRING, TENSION...SPRING, TENSION
-
1090506-15001-00 ...SPRING, TENSION...SPRING, TENSION
-
115GD-25351-00-00 CAMSHAFTCAMSHAFT
-
1293210-10010-00 O-RINGO-RING
-
135GD-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
145AU-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1590101-06278-00 BOLTBOLT
-
1690201-142M6-00 WASHER, PLATEWASHER, PLATE
-
1790185-14081-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890201-17255-00 WASHER, PLATEWASHER, PLATE
-
195GD-25357-00-00 SPRING, LEVER RETURNSPRING, LEVER RETURN
