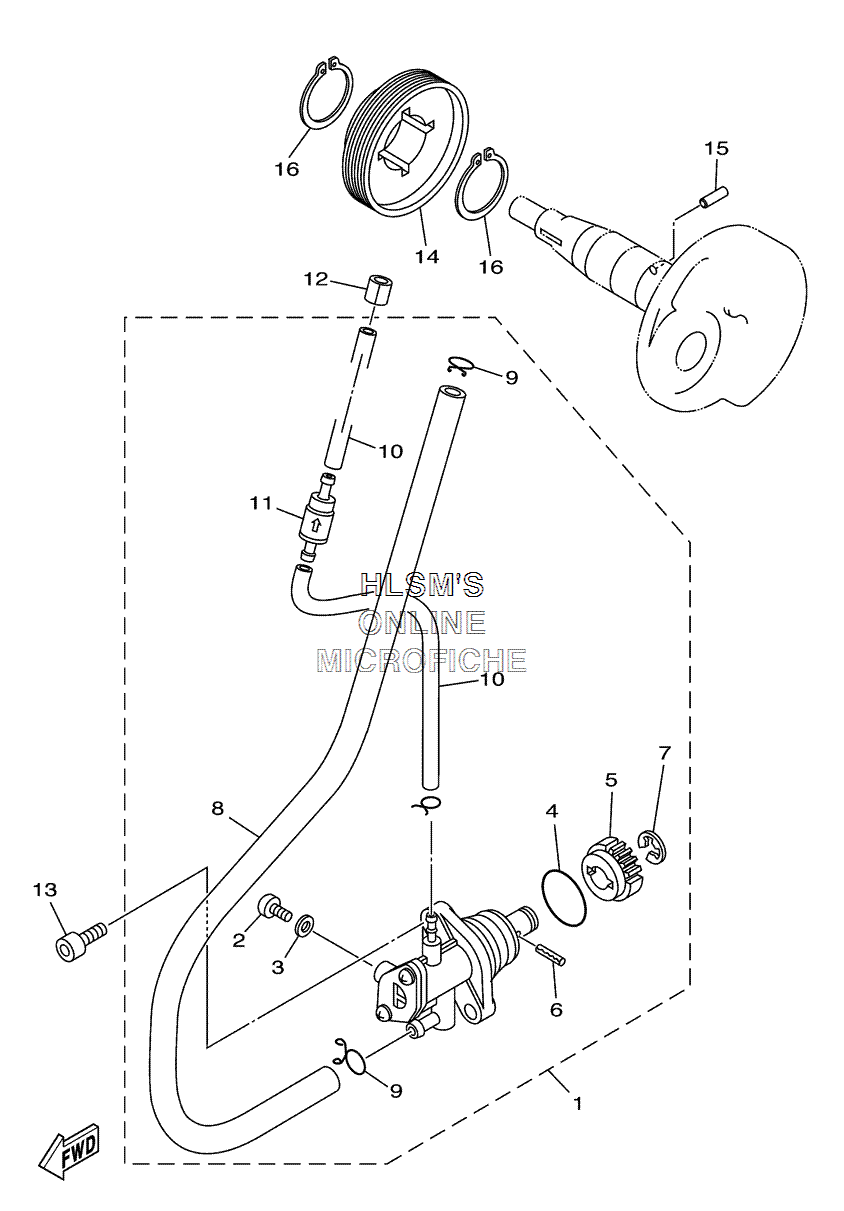

OIL PUMP для Yamaha VINO - 2003 года выпуска`
-
№АртикулНазвание
-
15LY-13100-01-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
21YU-13185-00-00 ...BOLT, BREATHER...BOLT, BREATHER
-
31YU-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
41YU-13473-00-00 ...O-RING...O-RING
-
53AA-13124-00-00 ...GEAR WORM WHEEL (40T)...GEAR WORM WHEEL (40T)
-
61YU-13516-00-00 ...PIN, DOWEL...PIN, DOWEL
-
71YU-13577-00-00 ...CLIP...CLIP
-
890445-09008-00 ...HOSE...HOSE
-
990467-08003-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1090445-05618-00 ...PIPE, DELIVERY 1...PIPE, DELIVERY 1
-
115GD-13183-00-00 ...VALVE, CHECK...VALVE, CHECK
-
1290468-02033-00 CLIPCLIP
-
1391317-05014-00 BOLTBOLT
-
142GM-13178-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
1593603-12007-00 PIN, DOWELPIN, DOWEL
-
1699009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
