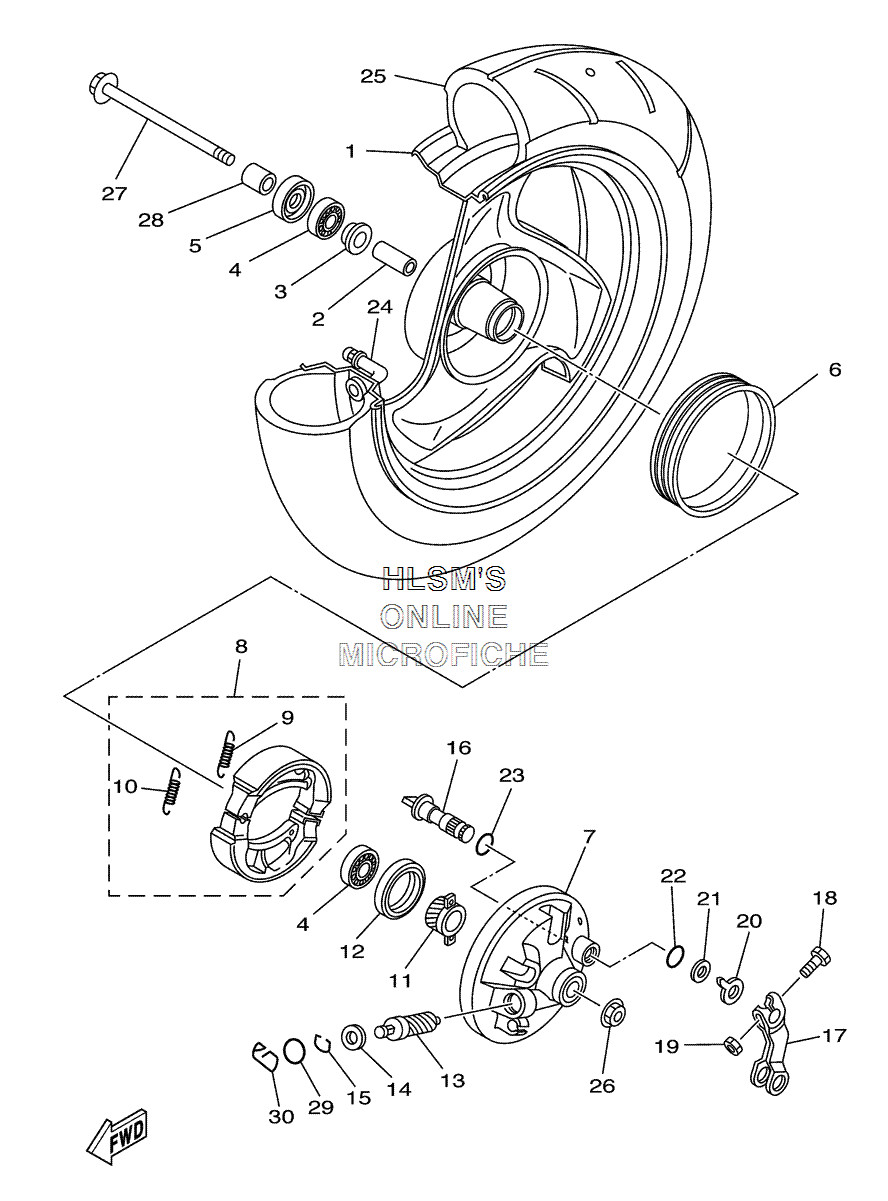

WHEEL - FRONT для Yamaha VINO - 2003 года выпуска`
-
№АртикулНазвание
-
15AU-25180-00-35 WHEEL COMP. (SILVER)WHEEL COMP. (SILVER)
-
290560-10289-00 SPACERSPACER
-
325K-25116-00-00 FLANGE, SPACER 2FLANGE, SPACER 2
-
493306-20006-00 BEARING (B6200) NTNBEARING (B6200) NTN
-
593106-17015-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
63KJ-25336-00-00 RING 2RING 2
-
75AU-25121-10-35 PLATE, BRAKE SHOE (SILVER)PLATE, BRAKE SHOE (SILVER)
-
85GD-W253A-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
990506-12001-00 ...SPRING, TENSION...SPRING, TENSION
-
1090506-15001-00 ...SPRING, TENSION...SPRING, TENSION
-
115AU-25135-00-00 GEAR, DRIVEGEAR, DRIVE
-
1293109-40047-00 OIL SEALOIL SEAL
-
1314T-25138-00-00 GEAR, METERGEAR, METER
-
1490201-064L6-00 WASHER, PLATEWASHER, PLATE
-
152T4-25137-00-00 RING, STOPRING, STOP
-
165DV-25351-00-00 CAMSHAFTCAMSHAFT
-
175AU-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1897017-06030-00 BOLTBOLT
-
1995307-06600-00 NUTNUT
-
205AU-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2190508-28007-00 SPRING, TORSIONSPRING, TORSION
-
2293109-14021-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
2393210-14104-00 O-RINGO-RING
-
2493900-00041-00 VALVE, RIMVALVE, RIM
-
2594108-1004V-00 TIRE (80/90-10 34J MB38) (INQUE)TIRE (80/90-10 34J MB38) (INQUE)
-
2594108-1002S-00 TIRE (80/90-10 34J C922) (CHENG SHIN)TIRE (80/90-10 34J C922) (CHENG SHIN)
-
2690185-10154-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
271YT-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
2890560-10360-00 SPACERSPACER
-
2993210-10096-00 O-RINGO-RING
-
302E9-25137-01-00 RING, STOPRING, STOP
