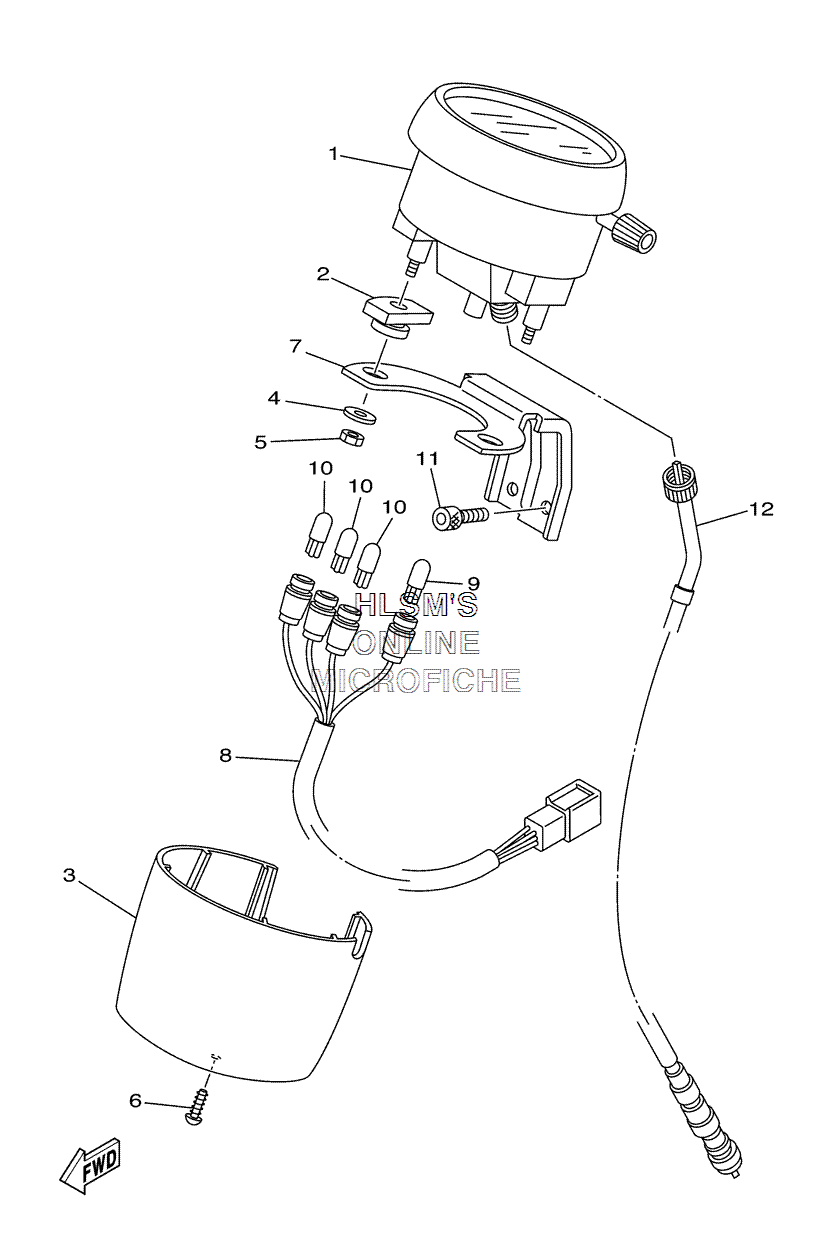

INSTRUMENT PANEL для Yamaha VINO CLASSIC - 2003 года выпуска`
-
№АртикулНазвание
-
15LY-8351A-00-00 METER ASSYMETER ASSY
-
212R-83513-00-00 DAMPERDAMPER
-
33DM-83507-00-00 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
492901-05600-00 WASHER, PLATEWASHER, PLATE
-
595301-05600-00 NUTNUT
-
697704-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
75LY-83519-00-00 BRACKET, METERBRACKET, METER
-
85LY-83509-00-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
942X-83517-00-00 BULB (14V-3W)BULB (14V-3W)
-
103FV-83517-00-00 BULB (12V-1.7W, T6.5)BULB (12V-1.7W, T6.5)
-
1191314-06010-00 BOLTBOLT
-
125LY-83550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
