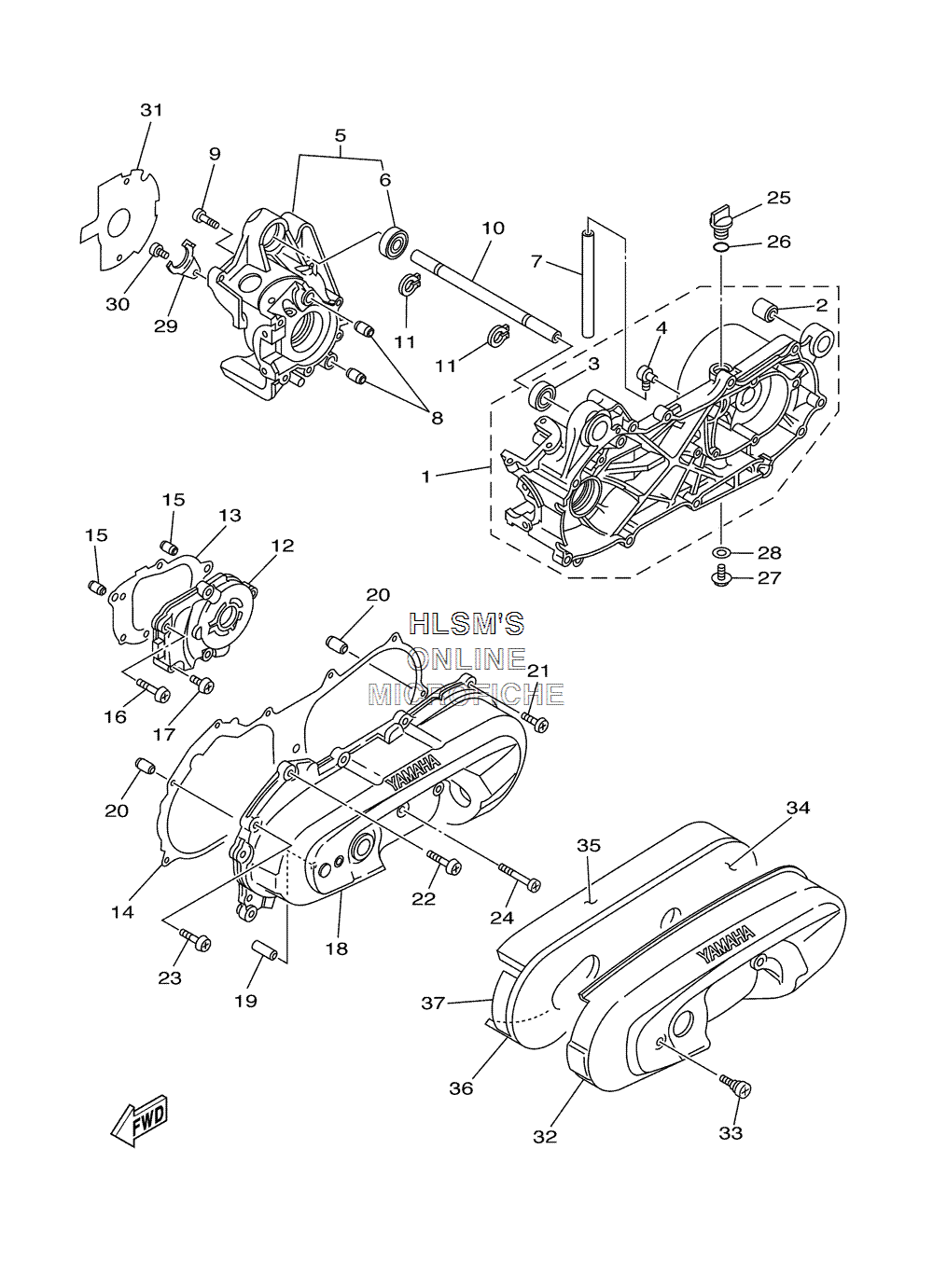

CRANKCASE ASSY. для Yamaha VINO CLASSIC - 2003 года выпуска`
-
№АртикулНазвание
-
15BM-15110-10-00 CRANKCASE ASSY 1CRANKCASE ASSY 1
-
2164-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
393306-00319-00 ...BEARING...BEARING
-
43YJ-15371-00-00 ...BREATHER...BREATHER
-
55BM-15120-01-00 CRANKCASE ASSY 2CRANKCASE ASSY 2
-
693306-00319-00 ...BEARING...BEARING
-
791A21-07020-00 HOSEHOSE
-
899530-12016-00 PIN, DOWELPIN, DOWEL
-
998507-06035-00 SCREWSCREW
-
103KJ-15317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
1199009-17400-00 CIRCLIPCIRCLIP
-
123KJ-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
134FB-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
145BM-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1599530-10114-00 PIN, DOWELPIN, DOWEL
-
1695027-06035-00 SCREWSCREW
-
1798507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
185AU-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
193KJ-15659-00-00 SHAFTSHAFT
-
2099530-10114-00 PIN, DOWELPIN, DOWEL
-
2198507-06025-00 SCREWSCREW
-
2297880-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2395027-06035-00 SCREWSCREW
-
2498507-06065-00 SCREWSCREW
-
252T4-15363-00-00 PLUG, OILPLUG, OIL
-
2693210-14104-00 O-RINGO-RING
-
2795807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-08087-00 GASKETGASKET
-
291HV-15128-00-00 HOLDERHOLDER
-
3098507-06012-00 SCREWSCREW
-
314FB-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
323YJ-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
333KJ-15481-00-00 BOLT 1BOLT 1
-
343KJ-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
353YJ-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
363KJ-15335-00-00 DAMPER 3DAMPER 3
-
373KJ-15337-00-00 DAMPER 4DAMPER 4
