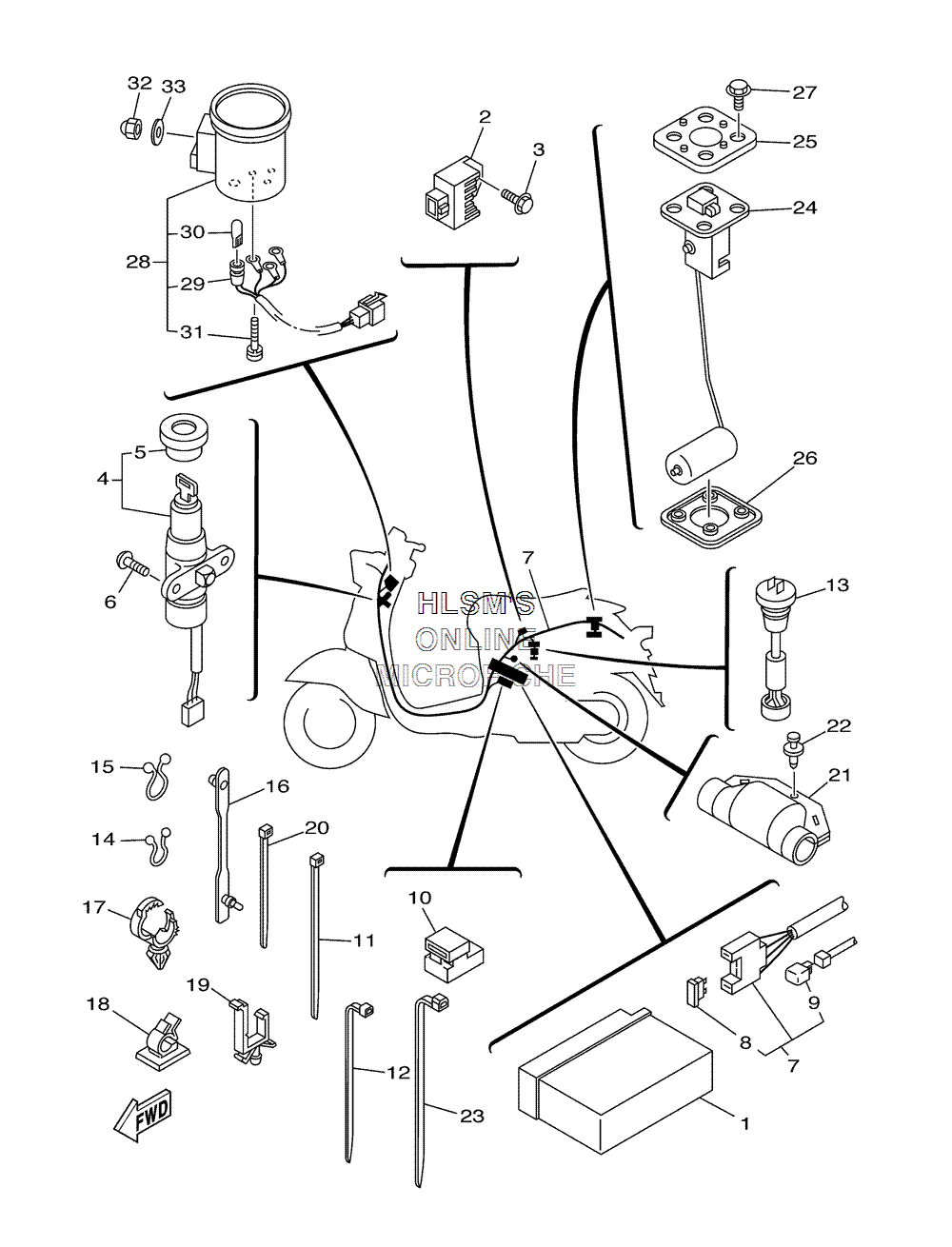

ELECTRICAL 2 для Yamaha VINO CLASSIC - 2003 года выпуска`
-
№АртикулНазвание
-
14JS-82100-01-00 BATTERY ASSY (GS GT4B-5)BATTERY ASSY (GS GT4B-5)
-
23LA-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
45LY-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
55AU-82552-00-00 ...CAP, SWITCH...CAP, SWITCH
-
690149-06250-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
75LY-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
82KW-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
93WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
1027V-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1190465-13152-00 CLAMPCLAMP
-
1290460-15126-00 CLAMP, HOSECLAMP, HOSE
-
1353L-85720-02-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
1490465-18147-00 CLAMPCLAMP
-
1590464-16039-00 CLAMPCLAMP
-
1690464-07121-00 CLAMPCLAMP
-
1790464-20181-00 CLAMPCLAMP
-
1890464-25160-00 CLAMPCLAMP
-
1990464-16021-00 CLAMPCLAMP
-
205Y9-12491-00-00 CLAMP 1CLAMP 1
-
215KN-8252U-00-00 COVERCOVER
-
2290269-06081-00 RIVETRIVET
-
2390464-15195-00 CLAMPCLAMP
-
244JP-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
252JG-85757-00-00 RETAINERRETAINER
-
264US-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
2790119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
285AU-85750-10-00 FUEL METER ASSYFUEL METER ASSY
-
295AU-83509-10-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
304NK-83517-00-00 ...BULB (12V-1.4W, T6.5)...BULB (12V-1.4W, T6.5)
-
3190159-03102-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
3290201-065F3-00 WASHER, PLATEWASHER, PLATE
