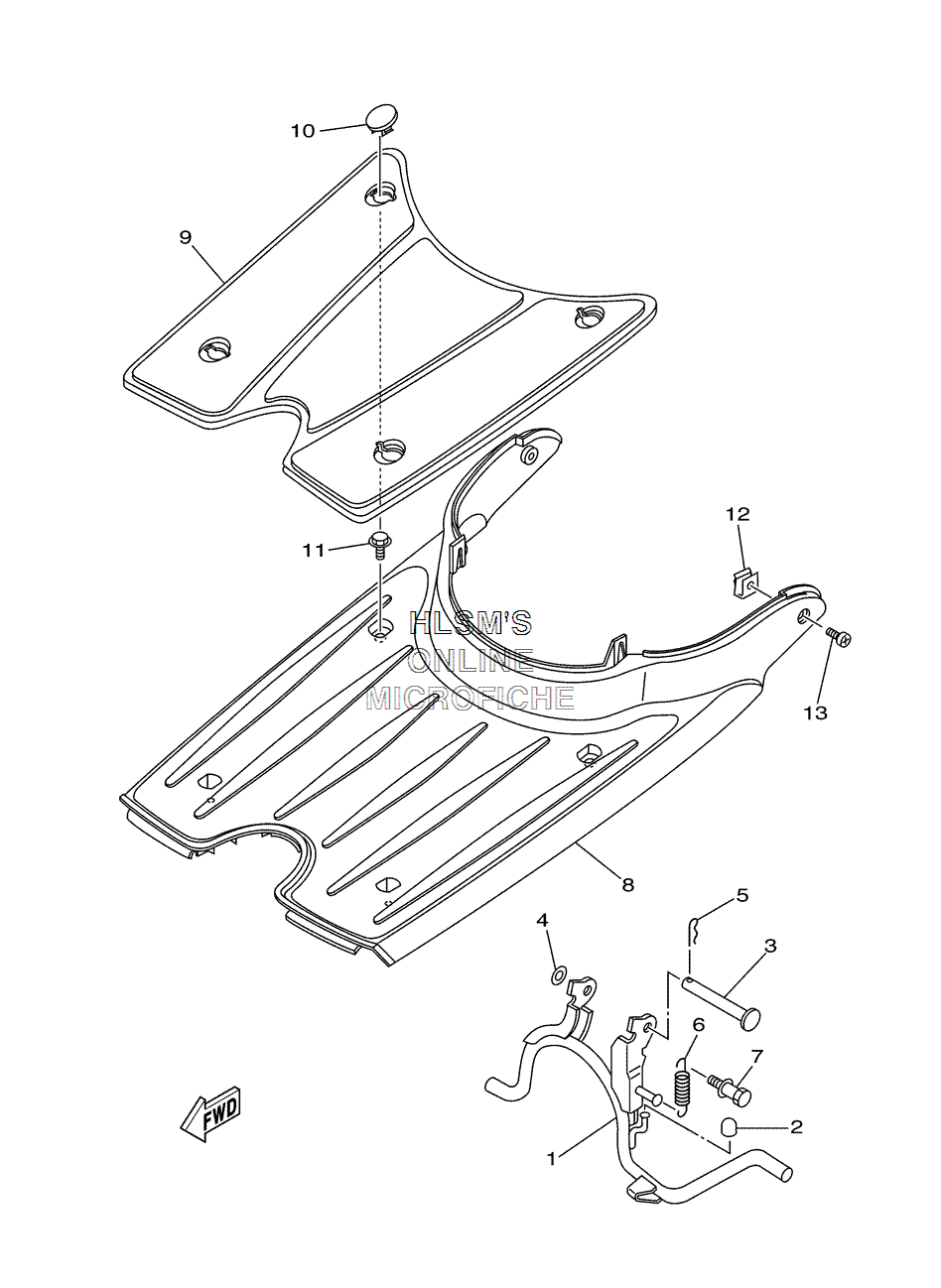

STAND W/ FOOTREST для Yamaha VINO CLASSIC - 2002 года выпуска`
-
№АртикулНазвание
-
15GD-27111-00-00 STAND, MAINSTAND, MAIN
-
23VR-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
390240-10137-00 PIN, CLEVISPIN, CLEVIS
-
490202-10120-00 WASHER, PLATEWASHER, PLATE
-
590468-12006-00 CLIPCLIP
-
690506-32513-00 SPRING, TENSIONSPRING, TENSION
-
75BM-27254-10-00 HOOKHOOK
-
85AU-27481-02-00 BOARD, FOOTREST (MRGD)BOARD, FOOTREST (MRGD)
-
85AU-27481-22-00 BOARD, FOOTREST (SM1)BOARD, FOOTREST (SM1)
-
95AU-27483-00-00 MAT 1 (MRGD)MAT 1 (MRGD)
-
95AU-27483-20-00 MAT 1 (SM1)MAT 1 (SM1)
-
105AU-27285-00-00 CAPCAP
-
1190119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
1397780-50012-00 SCREW, TAPPINGSCREW, TAPPING
