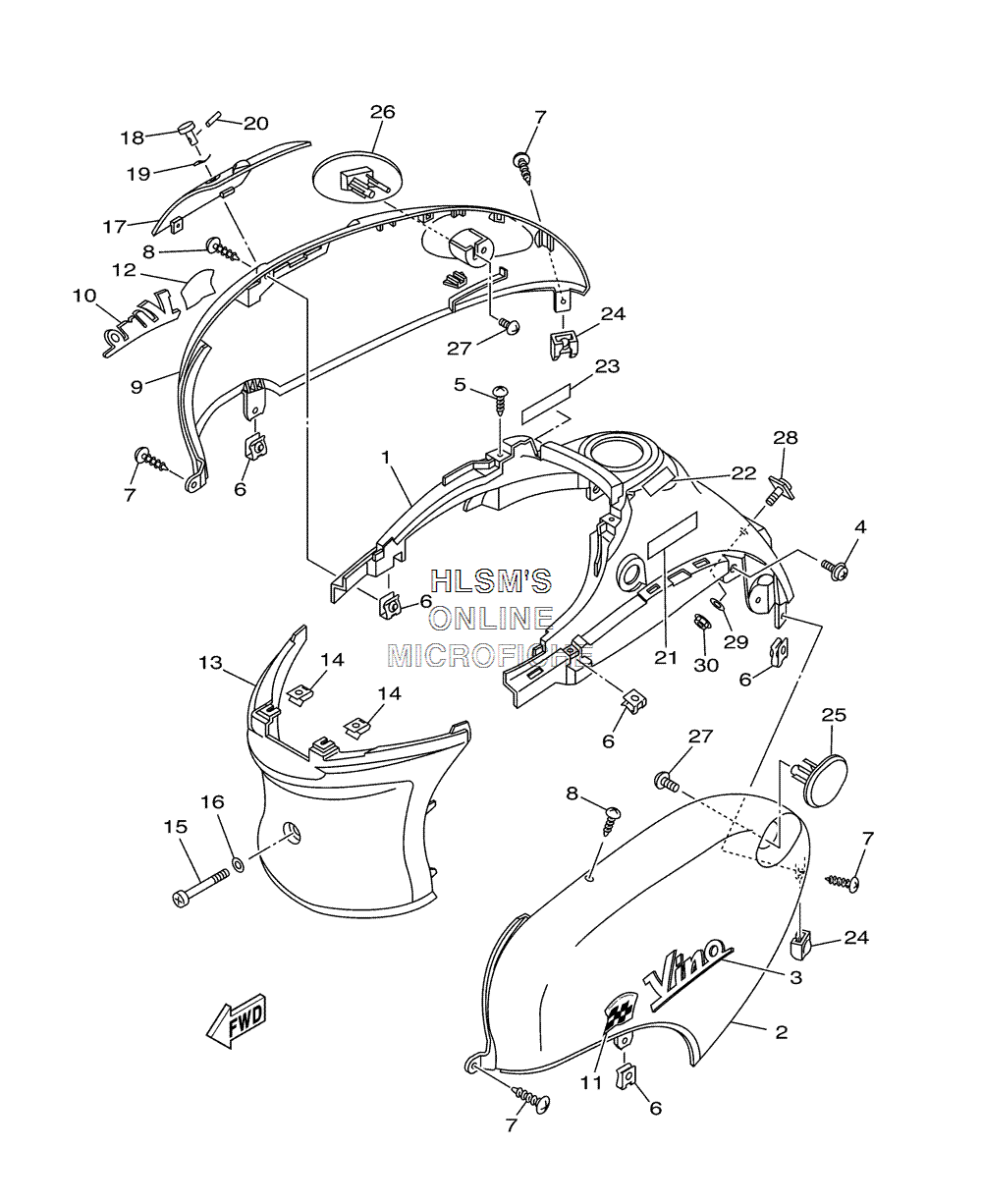

SIDE COVER для Yamaha VINO CLASSIC - 2002 года выпуска`
-
№АртикулНазвание
-
15LY-21711-00-00 COVER, SIDE 1 (MRGD)COVER, SIDE 1 (MRGD)
-
15LY-21711-10-00 COVER, SIDE 1 (SM1)COVER, SIDE 1 (SM1)
-
25AU-21721-00-KE COVER, SIDE 2 (MRGD)COVER, SIDE 2 (MRGD)
-
25AU-21721-00-P5 COVER, SIDE 2 (SM1)COVER, SIDE 2 (SM1)
-
35AU-2173B-20-00 EMBLEMEMBLEM
-
490159-06078-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
590163-05006-00 SCREW, TAPPINGSCREW, TAPPING
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
797707-50012-00 SCREW,TAPPINGSCREW,TAPPING
-
897707-50016-00 SCREW,TAPPINGSCREW,TAPPING
-
95AU-21731-02-KE COVER, SIDE 3 (MRGD)COVER, SIDE 3 (MRGD)
-
95AU-21731-02-P5 COVER, SIDE 3 (SM1)COVER, SIDE 3 (SM1)
-
105AU-2174B-20-00 EMBLEMEMBLEM
-
115AU-21788-20-00 GRAPHIC (FOR MRGD)GRAPHIC (FOR MRGD)
-
115AU-21788-10-00 GRAPHIC (FOR SM1)GRAPHIC (FOR SM1)
-
125AU-21788-20-00 GRAPHIC (FOR MRGD)GRAPHIC (FOR MRGD)
-
125AU-21788-10-00 GRAPHIC (FOR SM1)GRAPHIC (FOR SM1)
-
135AU-21741-00-00 COVER, SIDE 4 (MRGD)COVER, SIDE 4 (MRGD)
-
135AU-21741-20-00 COVER, SIDE 4 (SM1)COVER, SIDE 4 (SM1)
-
1490183-05042-00 NUT, SPRINGNUT, SPRING
-
1598504-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692903-06600-00 WASHER, PLATEWASHER, PLATE
-
175AU-21716-00-KE LID, SIDE COVER (MRGD)LID, SIDE COVER (MRGD)
-
175AU-21716-00-P5 LID, SIDE COVER (SM1)LID, SIDE COVER (SM1)
-
1890249-06191-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
1990206-06090-00 WASHER, WAVEWASHER, WAVE
-
2091690-25012-00 PIN, SPRINGPIN, SPRING
-
213JJ-28446-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
225LY-24875-00-00 LABEL 1LABEL 1
-
235LY-21668-A0-00 LABEL, TIRELABEL, TIRE
-
245AU-21875-00-00 CAPCAP
-
255LY-2172F-00-KE PANEL 2 (MRGD)PANEL 2 (MRGD)
-
255LY-2172F-00-P3 PANEL 2 (SM1)PANEL 2 (SM1)
-
265LY-2172G-00-KE PANEL 3 (MRGD)PANEL 3 (MRGD)
-
265LY-2172G-00-P3 PANEL 3 (SM1)PANEL 3 (SM1)
-
2797707-50012-00 SCREW,TAPPINGSCREW,TAPPING
-
285LY-21712-00-00 BOLT, SIDE COVERBOLT, SIDE COVER
-
2990209-04008-00 WASHERWASHER
-
3095607-05200-00 NUT, U FLANGENUT, U FLANGE
