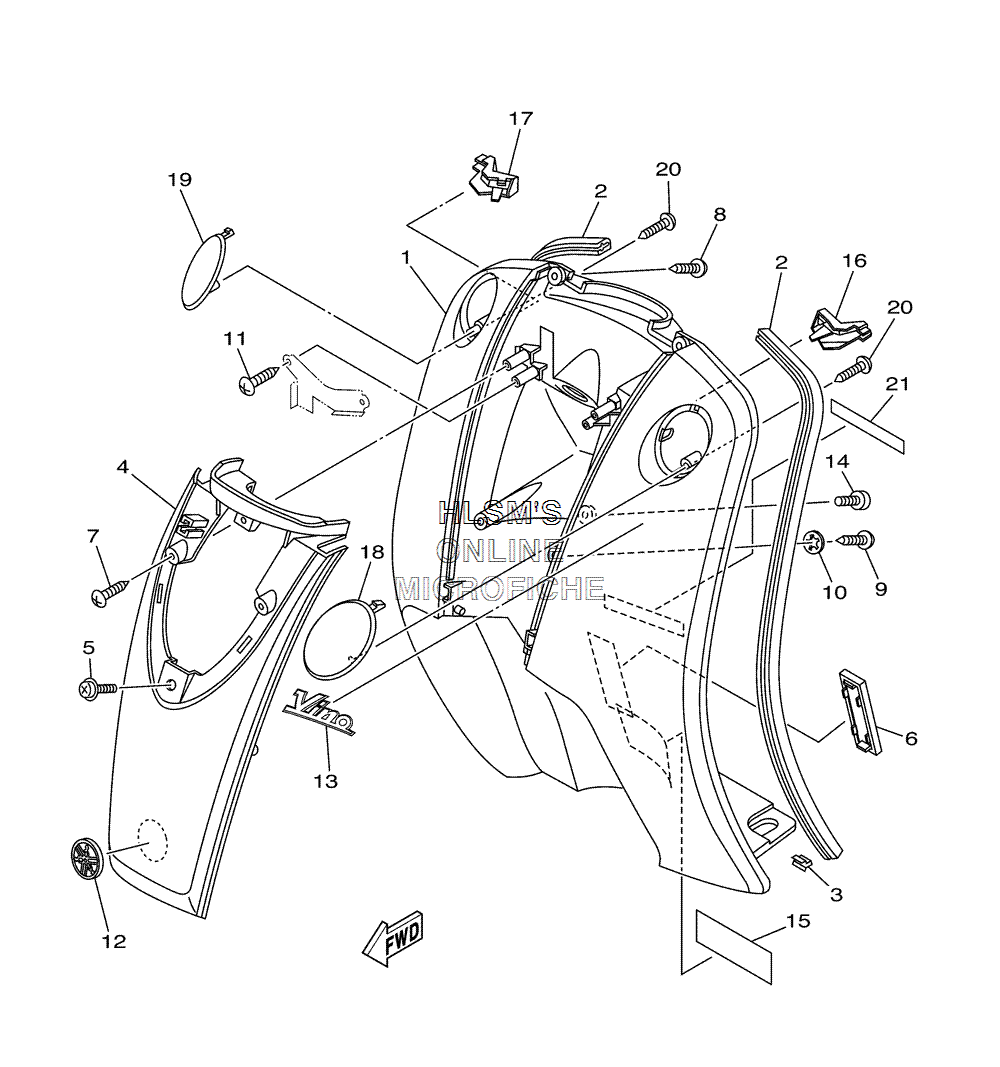

COWLING W/ LEG SHIELD для Yamaha VINO CLASSIC - 2002 года выпуска`
-
№АртикулНазвание
-
15AU-28311-01-KE LEG SHIELD 1 (MRGD)LEG SHIELD 1 (MRGD)
-
15AU-28311-01-P3 LEG SHIELD 1 (SM1)LEG SHIELD 1 (SM1)
-
25AU-28345-01-00 MOLE 1MOLE 1
-
35AU-28457-00-00 CLIPCLIP
-
45LY-23391-00-4B PANEL, FRONT (BLACK FOR SM1)PANEL, FRONT (BLACK FOR SM1)
-
45LY-23391-00-KE PANEL, FRONT (MRGD)PANEL, FRONT (MRGD)
-
590159-06178-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
620H-28349-01-00 CAP (SM1)CAP (SM1)
-
620H-28349-M0-00 CAP (MRGD)CAP (MRGD)
-
797707-50016-00 SCREW,TAPPINGSCREW,TAPPING
-
897707-50016-00 SCREW,TAPPINGSCREW,TAPPING
-
997707-50012-00 SCREW,TAPPINGSCREW,TAPPING
-
1090209-05347-00 WASHERWASHER
-
1197707-50016-00 SCREW,TAPPINGSCREW,TAPPING
-
125AU-2157B-00-00 EMBLEM (TUNING FORK MARK)EMBLEM (TUNING FORK MARK)
-
135AU-28328-30-00 EMBLEM (MRGD)EMBLEM (MRGD)
-
135AU-28328-20-00 EMBLEM (SM1)EMBLEM (SM1)
-
1498904-06012-00 SCREW, BINDSCREW, BIND
-
153SL-2118K-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
165AU-2842M-00-00 COVER 1COVER 1
-
175AU-2842N-00-00 COVER 2COVER 2
-
185LY-2842M-00-KE COVER 1 (MRGD)COVER 1 (MRGD)
-
185LY-2842M-00-P3 COVER 1 (SM1)COVER 1 (SM1)
-
195LY-2842N-00-KE COVER 2 (MRGD)COVER 2 (MRGD)
-
195LY-2842N-00-P3 COVER 2 (SM1)COVER 2 (SM1)
-
2097707-50012-00 SCREW,TAPPINGSCREW,TAPPING
-
215LY-2179X-10-00 PLATE, EPAPLATE, EPA
