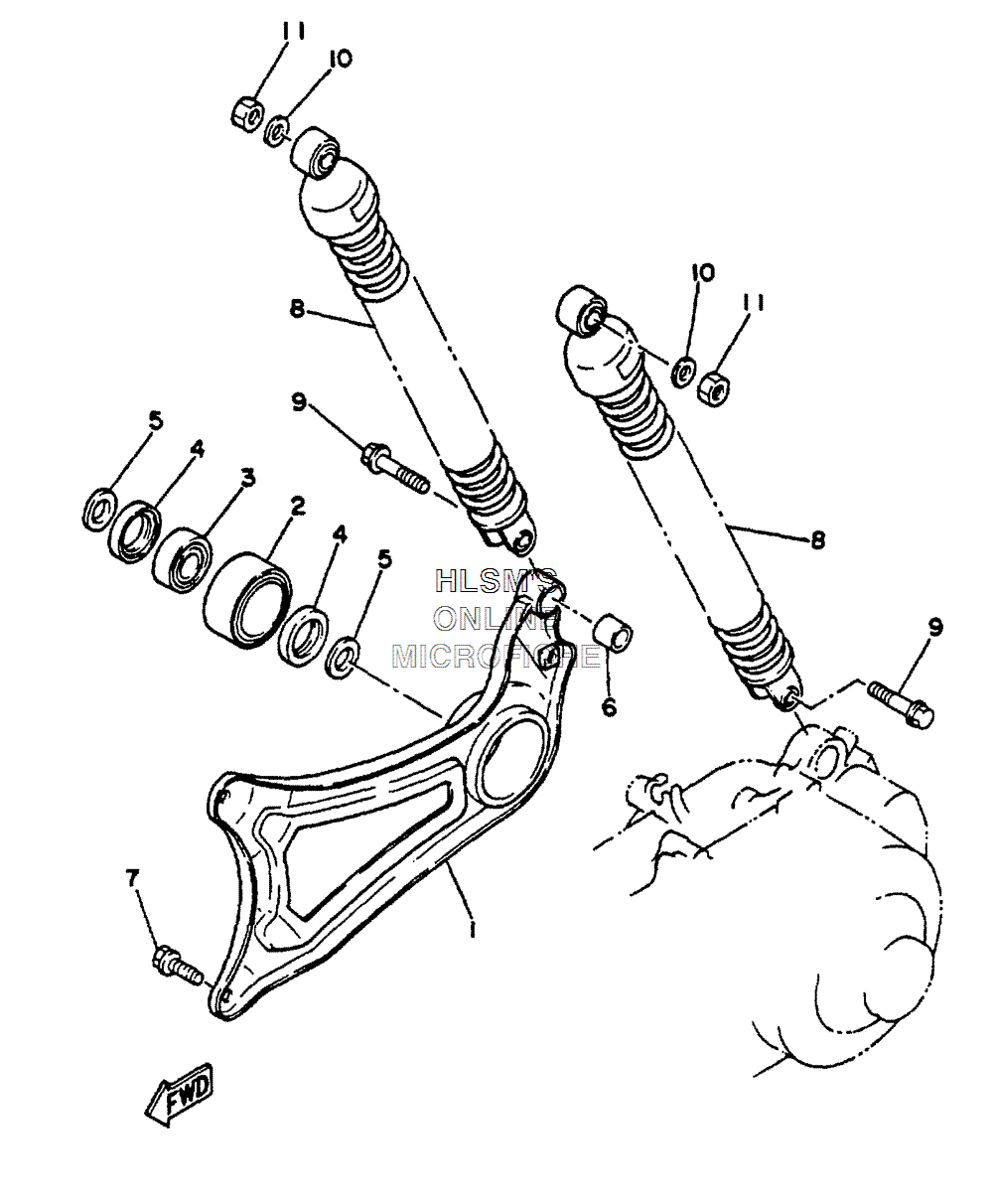

SUSPENSION - REAR ARM W/ SHOCK для Yamaha RIVA 125 - 2000 года выпуска`
-
№АртикулНазвание
-
150W-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
236F-22184-00-00 BUSHBUSH
-
393306-20226-00 BEARING 1 (6202 SD)BEARING 1 (6202 SD)
-
493109-28043-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
590387-155J0-00 COLLARCOLLAR
-
6164-22216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
795821-08020-00 BOLT, FLANGE (95811-08020-00)BOLT, FLANGE (95811-08020-00)
-
83EK-22210-00-00 SHOCK ABSORBER ASSY, RRSHOCK ABSORBER ASSY, RR
-
990105-08256-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1090201-08795-00 WASHER, PLATEWASHER, PLATE
-
1195336-08600-00 NUTNUT
