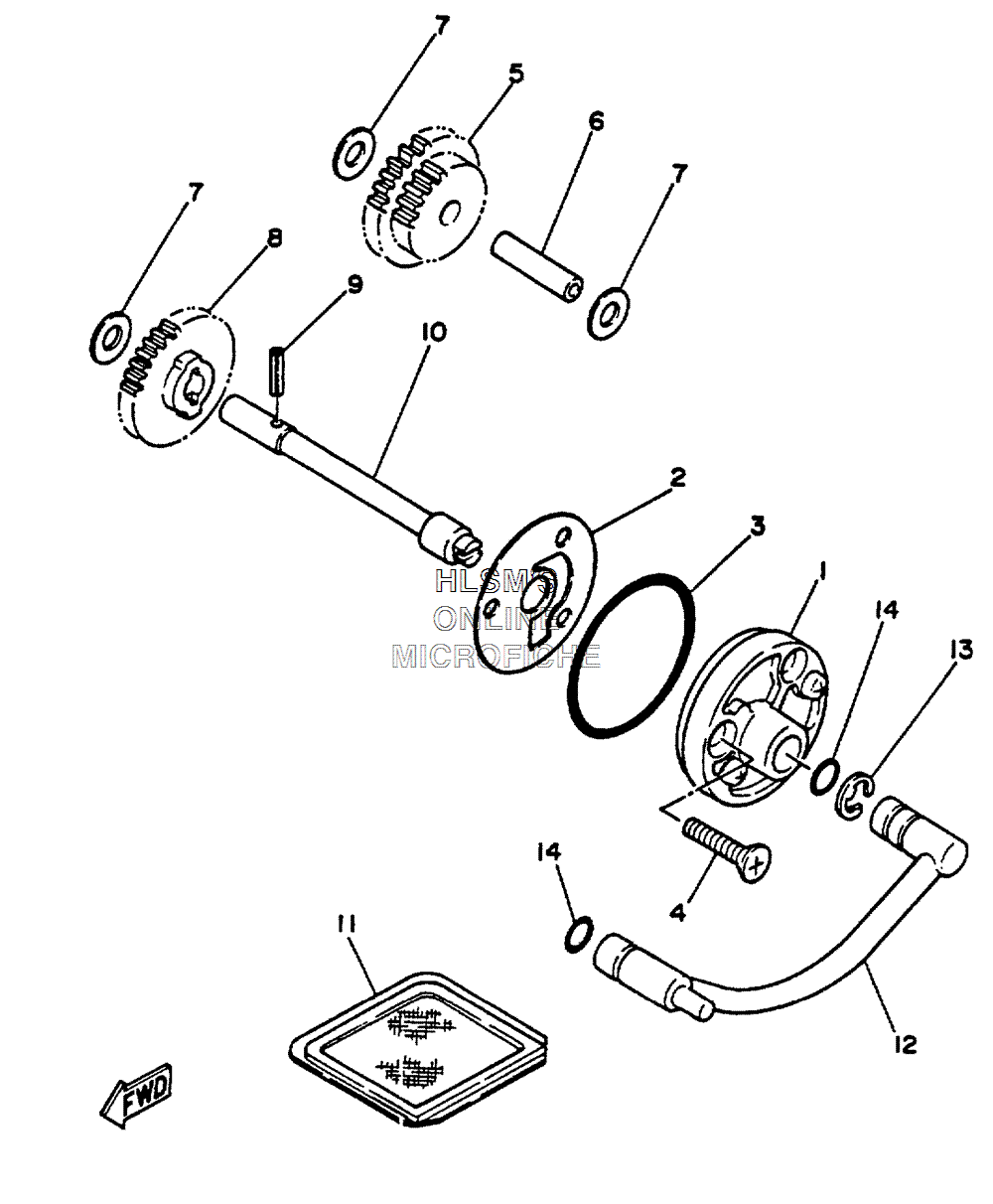

OIL PUMP для Yamaha RIVA 125 - 2000 года выпуска`
-
№АртикулНазвание
-
150M-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
250M-13475-10-00 GASKETGASKET
-
393210-50582-00 O-RINGO-RING
-
498780-06025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
550M-13341-00-00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
650M-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
790201-08085-00 WASHER, PLATEWASHER, PLATE
-
850M-13325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
991690-30014-00 PIN, SPRINGPIN, SPRING
-
1050M-Y1334-00-00 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
1122F-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1250M-13405-00-00 OIL PIPE COMP.1OIL PIPE COMP.1
-
1399006-10600-00 CIRCLIPCIRCLIP
-
1493210-08006-00 O-RINGO-RING
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- • OIL PUMP
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WHEEL - FRONT
- WHEEL - REAR
